SCZ72V-36BV - Scag Cheetah 72" Zero-Turn Mower, 36hp Vanguard (SN: G4200001 - G4299999) SCZ Fuel System Parts Diagram

Cheetah 72" Zero-Turn Mower, 36hp Vanguard

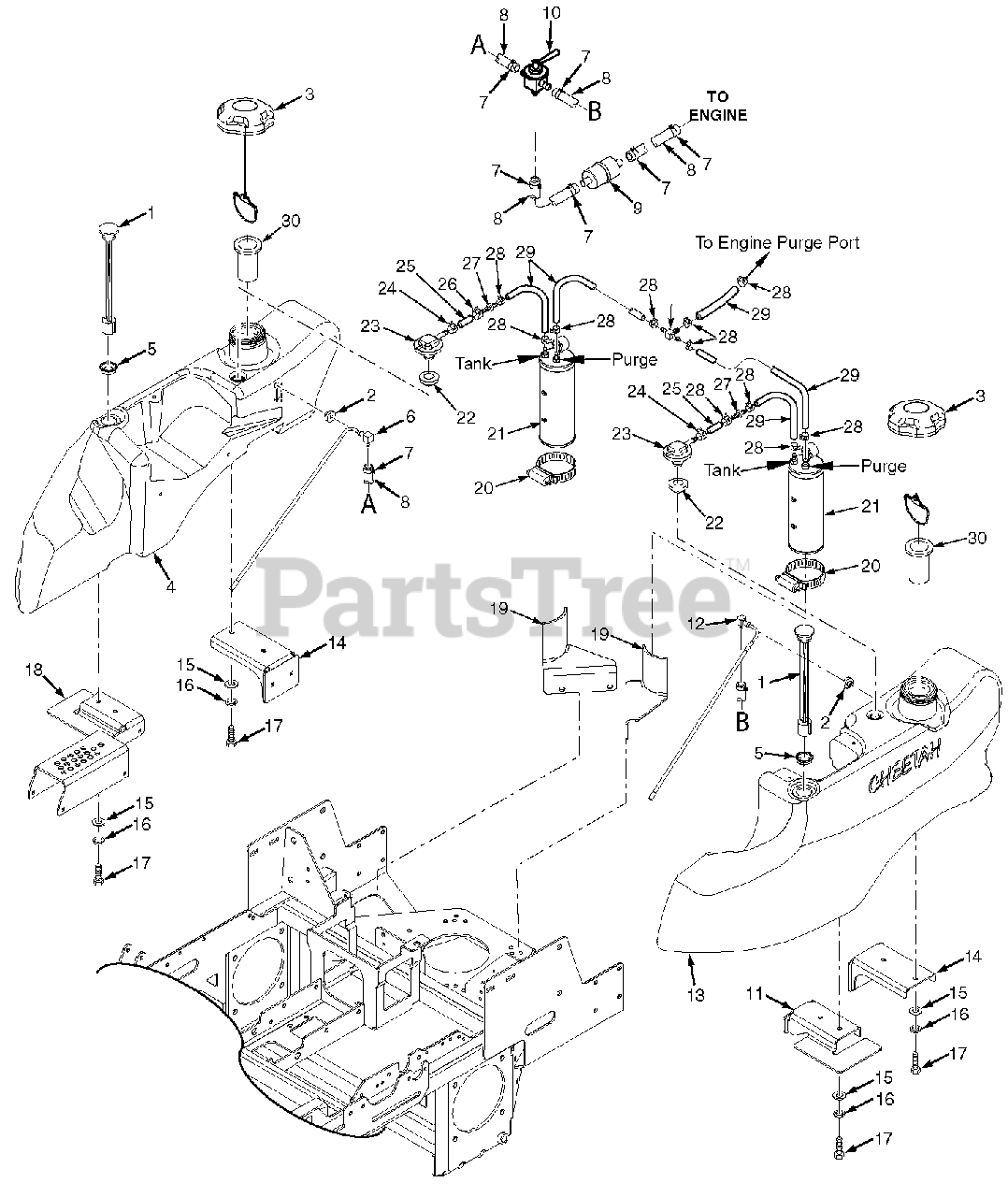

SCZ Fuel System Parts Diagram

  • Title

1

Scag 484323

Fuel Gauge

$96.99

$

In Stock, only 4 left!

0

2

Scag 482571

Bushing, .56 Dia. Viton

$12.99

$

In Stock, Qty 20+

0

3

Scag 484286

Fuel Cap, Tethered

$53.99

$

In Stock, only 1 left!

0

4

Scag 462381

Fuel Tank Assembly, RH
(Superseded to 463074)

Note: (incl. #1, 2, 5, 6, 22, 23)

$594.99

$

Usually ships in 2-12 days

0

5

Scag 484242

Grommet

$21.99

$

In Stock, only 2 left!

0

6

Scag 484145

Fuel Tube Assembly, RH
(Superseded to 484553)

$30.99

$

Usually ships in 2-12 days

0

7

Scag 48059-01

Clamp, Fuel Hose 1/4" ID

$0.99

$

In Stock, Qty 7

0

8

Scag 483617

Fuel Hose, 1/4" Non-Perm

Note: (order by inch)

$0.99

$

In Stock, Qty 20+

0

9

Fuel Filter

Note: Available through the individual engine manufacturer.

$

$

Not available

10

Scag 482212

Valve, Fuel Shut-Off

$43.99

$

In Stock, only 1 left!

0

11

Scag 425573

Mounting Bracket, Fuel Tank Front

$38.99

$

Usually ships in 2-12 days

0

12

Scag 484162

Fuel Tube Assembly, LH
(Superseded to 484552)

$30.99

$

In Stock, only 2 left!

0

13

Scag 462380

Fuel Tank Assembly, LH
(Superseded to 463072)

Note: (incl. #1, 2, 5, 12, 22, 23)

$565.99

$

Usually ships in 2-12 days

0

14

Scag 425350

Mounting Bracket, Fuel Tank Rear

$45.99

$

Usually ships in 2-12 days

0

15

Scag 04040-15

Flatwasher, 5/16-.375 x .875 x .083

$0.99

$

In Stock, Qty 20+

0

16

Scag 04030-03

Lockwasher, 5/16" Spring

$0.99

$

In Stock, Qty 20+

0

17

Scag 04001-08

Bolt, Hex Head 5/16-18 x 3/4"

$0.99

$

In Stock, Qty 20+

0

18

Scag 425574

Adjustment Bracket, Upper Cut Height

$101.99

$

Usually ships in 2-12 days

0

19

Scag 452176

Canister Mounting Bracket

$35.99

$

Usually ships in 2-12 days

0

20

Scag 48136-17

Clamp

$7.49

$

Usually ships in 2-12 days

0

21

Scag 484342

Carbon Canister

$101.99

$

In Stock, only 3 left!

0

22

Scag 484285

Grommet, Viton

$

$

Not available

23

Scag 484333

Remote Vent

$14.99

$

In Stock, only 1 left!

0

24

Scag 48059-02

Clamp, Fuel Hose 7/32"

$0.99

$

In Stock, Qty 19

0

25

Scag 484347

Hose, 1/4" Vapor Recovery

Note: (order by inch)

$0.99

$

In Stock, Qty 20+

0

26

Scag 48059-02

Clamp, Fuel Hose 7/32"

$0.99

$

In Stock, Qty 19

0

27

Scag 484343-01

Mender, 1/4 x 3/16 w/.02 Hole

$26.99

$

In Stock, Qty 5

0

28

Scag 48059-05

Clamp, Vapor Recovery Hose 3/16"

$4.49

$

In Stock, only 3 left!

0

29

Scag 484345

Hose, 3/16"

$0.99

$

In Stock, Qty 20+

0

30

Scag 484279-01

Tube, Fuel Tank Insert

$4.49

$

In Stock, only 1 left!
