SCZ72V-36BV - Scag Cheetah 72" Zero-Turn Mower, 36hp Vanguard (SN: G4200001 - G4299999) SCZ Engine & Attaching Parts Parts Diagram

Cheetah 72" Zero-Turn Mower, 36hp Vanguard

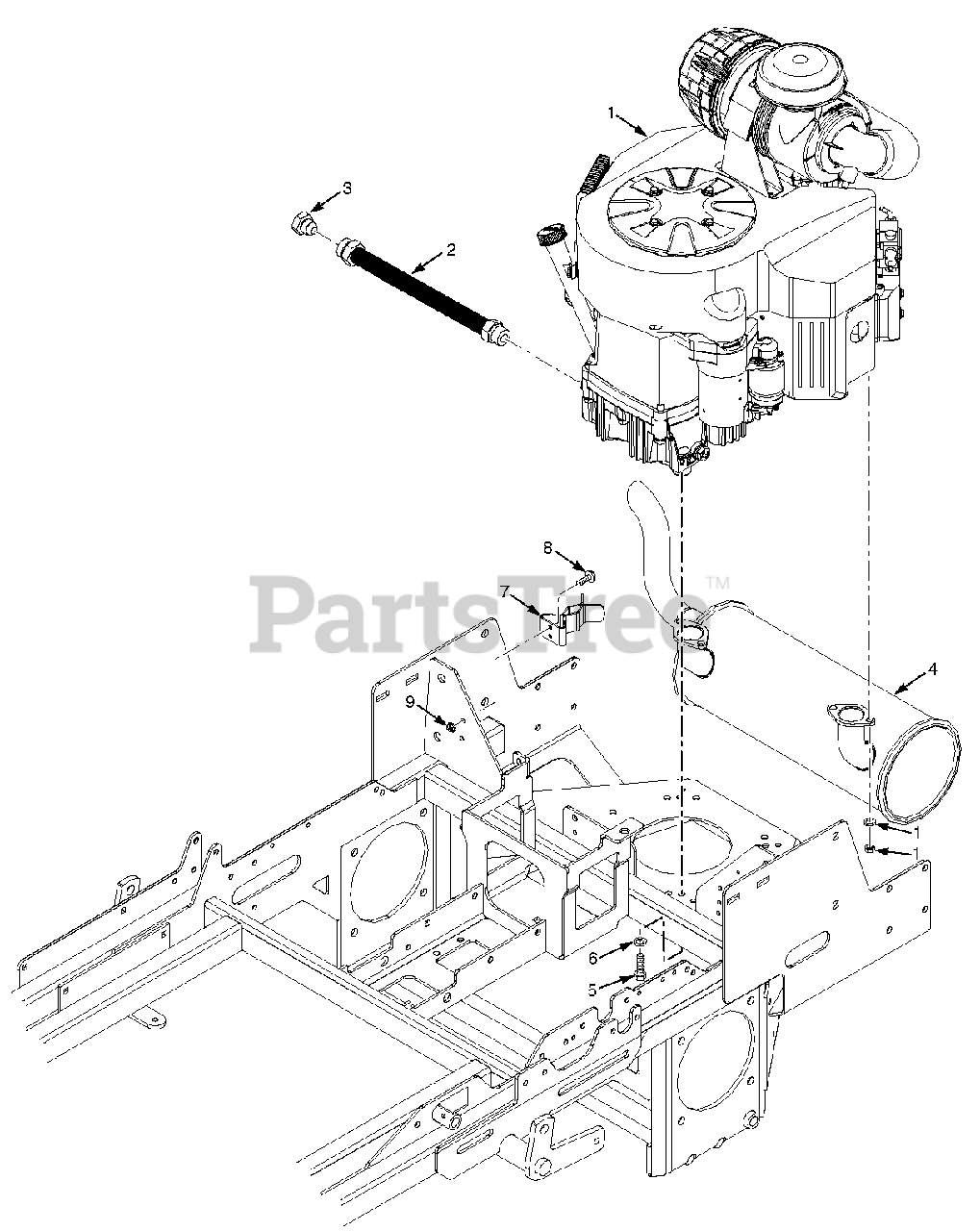

SCZ Engine & Attaching Parts Parts Diagram

  • Title

1

Scag 484183

Engine

Note: Kawasaki FX850 Available through the individual engine manufacturer.

$

$

Currently unavailable

1

Scag 484359

Engine

Note: Kohler CV940 Available through the individual engine manufacturer.

$

$

Currently unavailable

1

Scag 484232

Engine

Note: Kawasaki FX921 Available through the individual engine manufacturer.

$

$

Currently unavailable

1

Scag 484025

Engine

Note: Briggs & Stratton 36BV Available through the individual engine manufacturer.

$

$

Currently unavailable

2

Scag 484303

Hose, Oil Drain
(Superseded to 484707)

Note: Kawasaki (incl. # 3)

$63.99

$

Usually ships in 2-12 days

0

2

Scag 484171

Hose, OIl Drain
(Superseded to 484599)

Note: Briggs & Stratton (incl. # 3)

$60.99

$

Usually ships in 2-12 days

0

2

Scag 484329

Hose, Oil Drain
(Superseded to 484597)

Note: Kohler (incl. # 3)

$43.99

$

Usually ships in 2-12 days

0

3

Scag 48771-02

Plug

$2.99

$

Usually ships in 2-12 days

0

4

Scag 484155

Muffler

Note: Kawasaki FX - SCZ

$204.99

$

Usually ships in 2-12 days

0

4

Muffler

Note: Briggs & Stratton - SCZ Available through the individual engine manufacturer.

$

$

Not available

4

Scag 484290

Pipe, Muffler Extention

Note: (Briggs & Stratton Only)

$126.99

$

Usually ships in 2-12 days

0

4

Scag 484379

Muffler

Note: (Kohler - SCZ)

$219.99

$

In Stock, only 1 left!

0

5

Scag 04001-32

Bolt, Hex Head 3/8-16 x 1-1/4"

Note: (Kawasaki)

$0.99

$

In Stock, Qty 12

0

5

Scag 04001-11

Bolt, Hex Head 5/16-18 x 1-1/2"

Note: (Briggs & Stratton)

$0.99

$

In Stock, Qty 6

0

5

Scag 04019-03

Nut, Serrated Flange 5/16-18

Note: (Briggs & Stratton)

$0.99

$

In Stock, Qty 20+

0

6

Scag 04030-04

Lockwasher, 3/8" Spring

Note: (Kawasaki)

$0.99

$

In Stock, Qty 8

0

7

Scag 484194

Spring Clip

$13.99

$

Usually ships in 2-12 days

0

8

Scag 04010-30

Screw, #8-32 x 1/2"
(Superseded to 04010-32)

$0.99

$

In Stock, Qty 9

0

9

Scag 04021-17

Nut, Elastic Stop #8-32

$0.99

$

In Stock, Qty 5

0
