SCZ72V-36BV - Scag Cheetah 72" Zero-Turn Mower, 36hp Vanguard (SN: G4200001 - G4299999) SCZ Electrical System Parts Diagram

Cheetah 72" Zero-Turn Mower, 36hp Vanguard

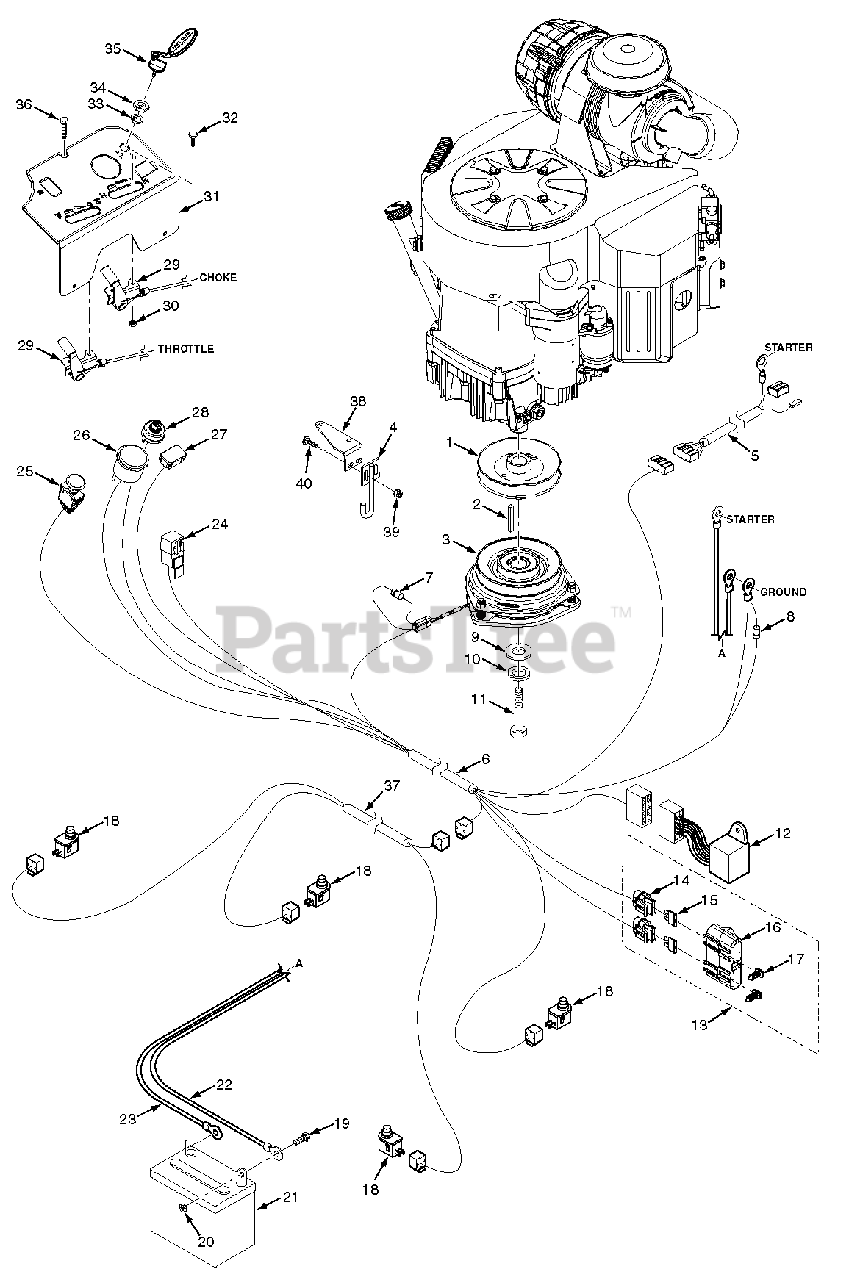

SCZ Electrical System Parts Diagram

  • Title

1

Scag 484098

Pulley, 5.80 Dia. - 1.125 Bore

$87.99

$

In Stock, only 1 left!

0

2

Scag 04063-23

Key, 1/4 x 1/4 x 3-1/4"

$1.99

$

In Stock, only 2 left!

0

3

Scag 461661

Electric Clutch w/Tag (GT-3.5)

$429.99

$

In Stock, only 2 left!

0

3

Scag 461826

Electric Clutch w/Tag (GT-5)

Note: 72V

$636.99

$

In Stock, only 2 left!

0

4

Scag 452157

Weldment, Anti-Rotation
(Superseded to 462806)

$37.99

$

In Stock, only 1 left!

0

5

Scag 482543

Wire Harness Adapter

Note: Kawasaki

$30.99

$

In Stock, only 1 left!

0

5

Scag 482849

Wire Harness Adapter

Note: Briggs & Stratton

$43.99

$

In Stock, only 1 left!

0

5

Scag 484078

Wire Harness Adapter

Note: Kohler

$25.99

$

In Stock, only 3 left!

0

6

Scag 484146

Wire Harness, SCZ
(Superseded to 484653)

$590.99

$

Usually ships in 2-12 days

0

7

Scag 483958

Diode, 600V - 6A

$2.49

$

In Stock, only 4 left!

0

8

Scag 482253

Diode

$7.99

$

Usually ships in 2-12 days

0

9

Scag 04041-28

Flatwasher, 7/16-.469 x 1.75 x .25

$2.99

$

In Stock, Qty 12

0

10

Scag 04030-05

Lockwasher, 7/16" Spring

$0.99

$

In Stock, Qty 5

0

11

Scag 04102-03

Bolt, Hex Head 7/16-20 x 2-1/4" w/Patch

Note: (Kawasaki)

$1.99

$

In Stock, Qty 12

0

11

04xxx-xx

Bolt, Hex Head

Note: (Briggs & Stratton)

$

$

Not available

12

Scag 483599

Electric Module

$133.99

$

In Stock, Qty 20+

0

13

Scag 483642

Double Fuse Assembky

Note: (incl. # 14, 15, 16, 17)

$43.99

$

Usually ships in 2-12 days

0

14

Scag 483629

Fuse Holder

$7.49

$

In Stock, Qty 7

0

15

Scag 48298

Fuse, 20 Amp

$3.99

$

Usually ships in 2-12 days

0

16

Scag 483571

Cover, Sealed Double

$1.99

$

Usually ships in 2-12 days

0

17

Scag 482588

Clip, Wire

$1.99

$

Usually ships in 2-12 days

0

18

Scag 481638

Switch, N.O.

$15.99

$

In Stock, Qty 20+

0

19

Scag 04001-44

Bolt, Hex Head 1/4-20 x 1/2"

$0.99

$

In Stock, Qty 6

0

20

Scag 04020-02

Nut, 1/4-20

$0.99

$

In Stock, Qty 10

0

21

Battery

Note: Not available through Scag

$

$

Not available

22

Scag 48029-11

Battery Cable, 27" Black

$14.99

$

In Stock, only 1 left!

0

22

Scag 48029-07

Battery Cable, 18" Black

Note: (Kohler)

$11.99

$

Usually ships in 2-12 days

0

23

Scag 48029-13

Battery Cable, 25" Red

$13.99

$

In Stock, only 1 left!

0

24

Scag 483013

Relay

$20.99

$

In Stock, Qty 20+

0

25

Scag 483957

Switch, PTO - 10 Amp
(Superseded to 463034)

$37.99

$

In Stock, Qty 20+

0

26

Scag 481755

Ammeter
(Superseded to 487596)

$64.99

$

Usually ships in 2-12 days

0

27

Scag 483537

Hourmeter
(Superseded to 484565)

$51.99

$

In Stock, only 1 left!

0

28

Scag 48798

Keyswitch w/Hardware

$27.99

$

In Stock, Qty 20+

0

29

Scag 484200

Control Cable
(Superseded to 481544)

Note: (Kawasaki, Kohler Choke Cable)

$27.99

$

In Stock, Qty 20+

0

29

Scag 484289

Control Cable

Note: (Briggs & Stratton)

$28.99

$

In Stock, only 1 left!

0

29

Scag 481662

Control Cable

Note: (Kohler Throttle Cable)

$35.99

$

In Stock, only 3 left!

0

30

Scag 04021-26

Nut, Elastic Stop #10-24

$0.99

$

In Stock, Qty 11

0

31

Scag 462340

Instrument Panel w/Decal

$109.99

$

Usually ships in 2-12 days

0

32

Scag 04003-43

Bolt, Carriage #10-24 x 1/2"

$0.99

$

In Stock, Qty 6

0

33

Scag 48017-03

Lockwasher, 5/8" Internal

$0.99

$

In Stock, Qty 6

0

34

Scag 48017-04

Nut, Hex 5/8-32

$1.49

$

In Stock, Qty 5

0

35

Scag 483366

Key, Ignition
(Superseded to 462069)

$8.49

$

In Stock, Qty 20+

0

Scag 462069

Key Assembly w/Fob

$8.49

$

In Stock, Qty 20+

0

36

Scag 04017-04

Bolt, Hex Head 1/4-20 x 1/2" Serrated Flange

$0.99

$

In Stock, Qty 20+

0

37

Scag 484203

Wire Harness, Operator Platform - SCZ

$109.99

$

Usually ships in 2-12 days

0

38

Scag 425392

Bracket, Anti-Rotation

$

$

Not available

39

Scag 04117-01

Nut, FLF HH Elastic Stop 5/16-18

$0.99

$

In Stock, Qty 18

0

40

Scag 04003-04

Bolt, Carriage 5/16-18 x 1"

$0.99

$

In Stock, Qty 9

0
