SCZ72V-36BV - Scag Cheetah 72" Zero-Turn Mower, 36hp Vanguard (SN: G4200001 - G4299999) SCZ Brake Components Parts Diagram

Cheetah 72" Zero-Turn Mower, 36hp Vanguard

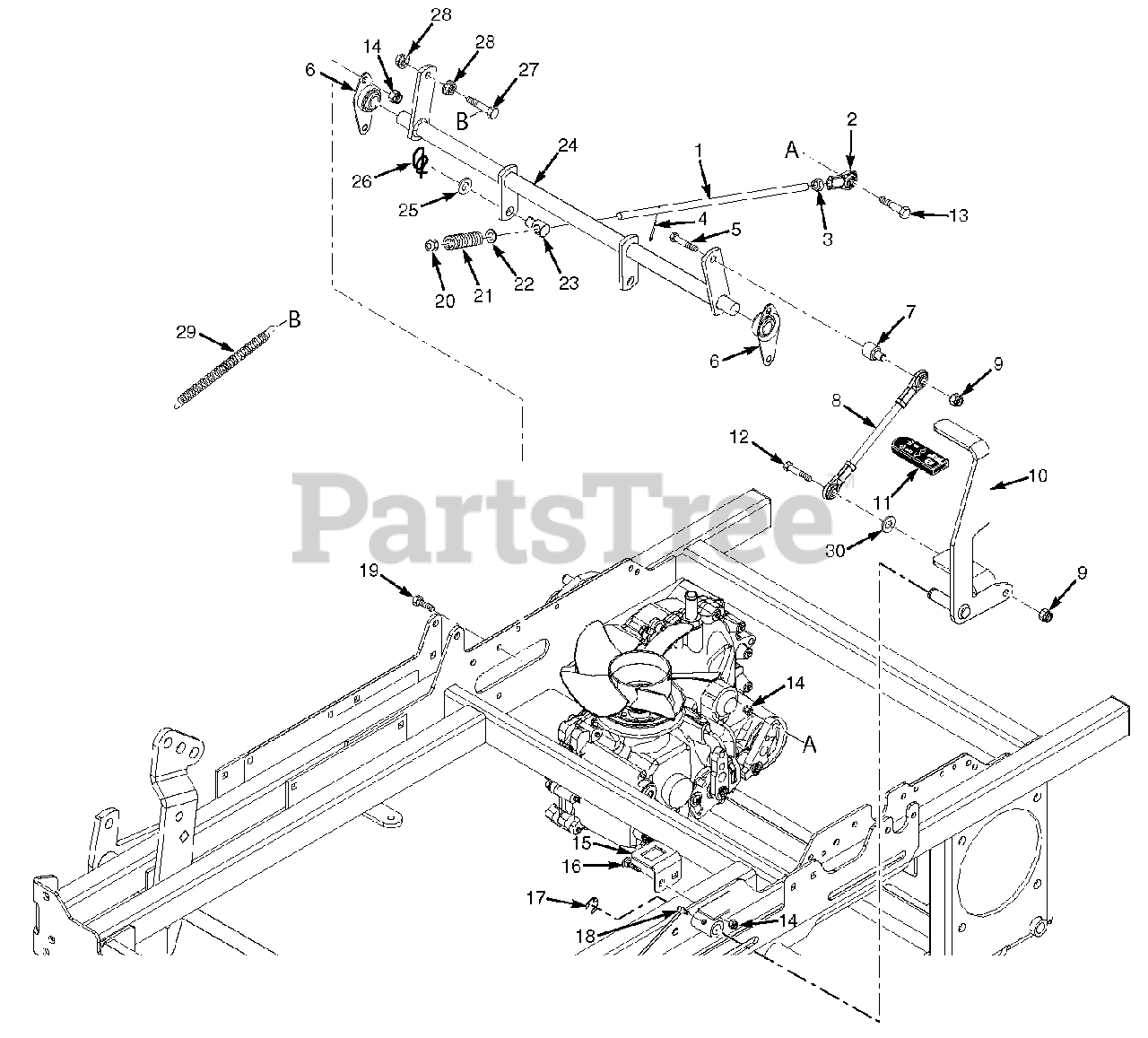

SCZ Brake Components Parts Diagram

  • Title

1

Scag 04004-53

Link, Lower Brake
(Superseded to 485319)

$17.99

$

Usually ships in 2-12 days

0

2

Scag 484177

Rod End, 3/8-24

$21.99

$

In Stock, only 1 left!

0

3

Scag 04020-14

Nut, Jam 3/8-24 UNF

$0.99

$

In Stock, only 3 left!

0

4

Scag 04061-01

Cotter Pin

$0.99

$

In Stock, Qty 11

0

5

Scag 04001-22

Bolt, Hex Head 3/8-16 x 2-3/4"

$1.49

$

In Stock, Qty 10

0

6

Scag 484149

Bearing, Self Align

$12.99

$

Usually ships in 2-12 days

0

7

Scag 43503

Pivot

$26.99

$

In Stock, Qty 18

0

8

Scag 484188

Linkage, Upper Brake
(Superseded to 485757)

$44.99

$

Usually ships in 2-12 days

0

Scag 483339

Rod End, 3/8-24 RH

$19.99

$

Usually ships in 2-12 days

0

Scag 04020-25

Nut, Jam 3/8-24 UNF

$0.99

$

In Stock, only 2 left!

0

Scag 483340

Rod End, 3/8-24 LH

$19.99

$

Usually ships in 2-12 days

0

Scag 04040-26

Nut, Jam 3/8-24 UNF LH

$

$

Currently unavailable

9

Scag 04021-09

Nut, Elastic Stop 3/8-16

$0.99

$

In Stock, Qty 20+

0

10

Scag 462256

Brake Lever w/Grip

$75.99

$

Usually ships in 2-12 days

0

11

Scag 481548

Grip, Brake Lever

$6.49

$

In Stock, Qty 9

0

12

Scag 04001-20

Bolt, Hex Head 3/8-16 x 1-1/2"

$0.99

$

In Stock, Qty 20+

0

13

Scag 04001-17

Bolt, Hex Head 3/8-16 x 2"

$0.99

$

In Stock, Qty 6

0

14

Scag 04117-01

Nut, Flange Head Elastic Stop 5/16-18

$0.99

$

In Stock, Qty 18

0

15

Scag 425388

Bracket, Brake Switch

$12.99

$

Usually ships in 2-12 days

0

16

Scag 04003-12

Bolt, Carriage 5/16-18 x 3/4"

$0.99

$

In Stock, Qty 20+

0

17

Scag 04050-01

Retaining Ring, .625 External "E"

$0.99

$

In Stock, Qty 20+

0

18

Scag 48114-04

Grease Fitting, 1/4-28 Self Tap

$0.99

$

In Stock, Qty 20+

0

19

Scag 04001-08

Bolt, Hex Head 5/16-18 x 3/4"

$0.99

$

In Stock, Qty 20+

0

20

Scag 04021-18

Nut, Elastic Stop 3/8-24

$1.49

$

In Stock, Qty 9

0

21

Scag 484182

Spring

$7.99

$

In Stock, only 1 left!

0

22

Scag 04042-04

Flatwasher, 3/8-.406 x .734 x .063

$7.49

$

Usually ships in 2-12 days

0

23

Scag 43751

Bushing, Pivot
(Superseded to 485317)

$13.99

$

Usually ships in 2-12 days

0

24

Scag 452221

Weldment, Brake Linkage

$119.99

$

Usually ships in 2-12 days

0

25

Scag 04043-04

Flatwasher, 3/8-.391 x .938 x .105

$0.99

$

In Stock, Qty 20+

0

26

Scag 04069-02

Pin, Rue Cotter 1/2" Dia.

$4.99

$

In Stock, only 1 left!

0

27

Scag 04001-136

Bolt, Hex Head 3/8-16 x 1-1/2" Grade 8

$0.99

$

In Stock, Qty 20+

0

28

Scag 04019-04

Nut, Serrated Flange 3/8-16

$0.99

$

In Stock, Qty 20+

0

29

Scag 484335

Spring

$18.99

$

Usually ships in 2-12 days

0

30

Scag 04043-04

Flatwasher, 3/8-.391 x .938 x .105 HD

$0.99

$

In Stock, Qty 20+

0
