SCZ72V-35CV-EFI - Scag Cheetah 72" Zero-Turn Mower, 35hp Kohler (SN: L7200001 - L7299999) SCZ Engine & Attaching Parts Parts Diagram

Cheetah 72" Zero-Turn Mower, 35hp Kohler

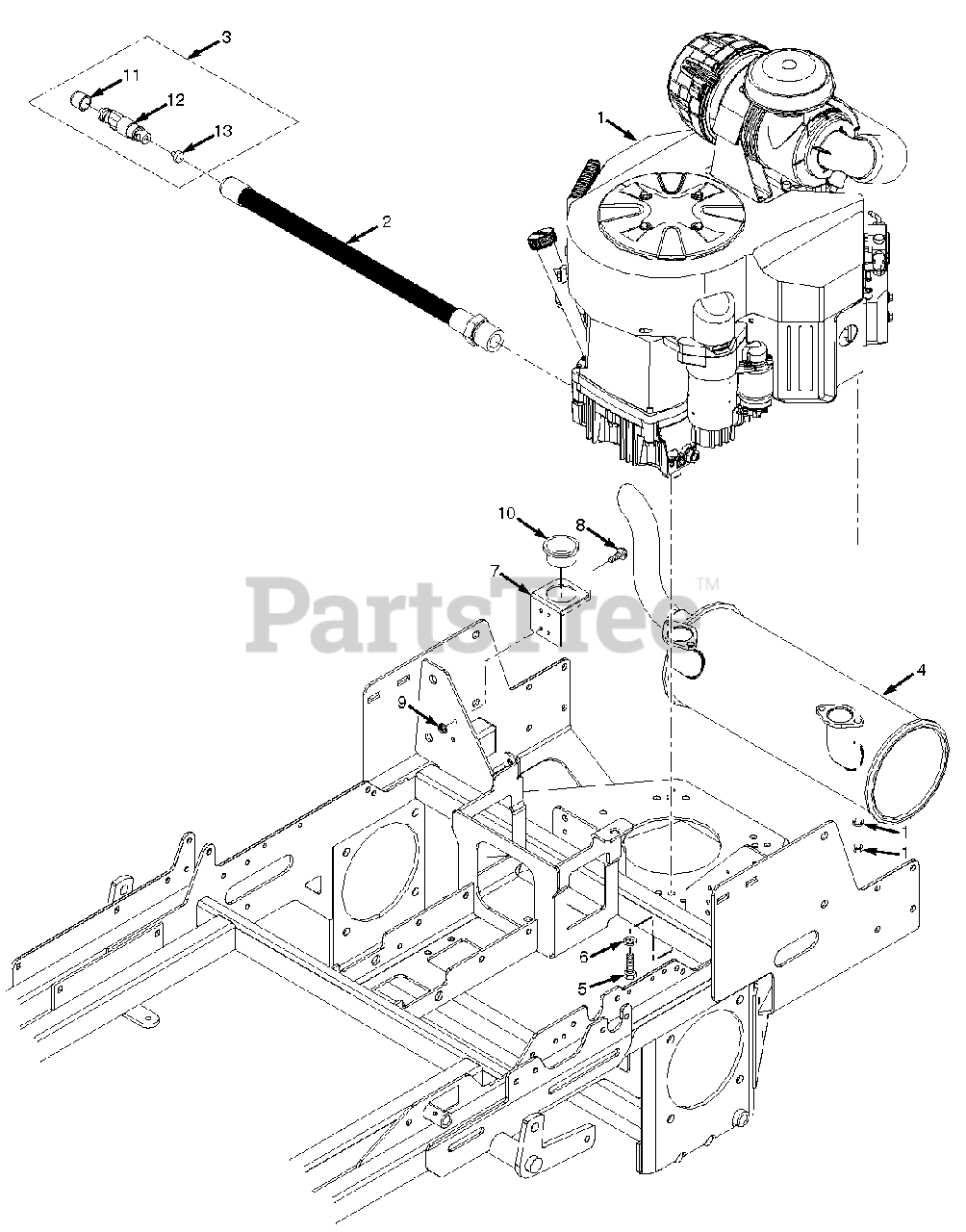

SCZ Engine & Attaching Parts Parts Diagram

  • Title

1

Scag 485032

Engine, Kawasaki 27FX (FX850)

Note: Available through the individual engine manufacturer.

$

$

Currently unavailable

1

Scag 485694

Engine, Kohler 29CV-EFI (ECV860)

Note: Available through the individual engine manufacturer.

$

$

Currently unavailable

1

Scag 485033

Engine, Kawasaki 31FX (FX921)

Note: Available through the individual engine manufacturer.

$

$

Currently unavailable

1

Scag 485558

Engine, Kohler 35CV-EFI (ECV940)

Note: Available through the individual engine manufacturer.

$

$

Currently unavailable

2

Scag 484581

Hose, Oil Drain, Kawasaki

Note: (incl. # 3)

$61.99

$

In Stock, only 1 left!

0

2

Scag 484610

Hose, Oil Drain, Kohler - ECV860
(Superseded to 484706)

Note: (incl. # 3)

$41.99

$

Usually ships in 2-12 days

0

2

Scag 484597

Hose, Oil Drain, Kohler - ECV940

Note: (incl. # 3)

$44.99

$

Usually ships in 2-12 days

0

3

Scag 484593

Valve Assembly, Oil Drain

$10.99

$

In Stock, only 3 left!

0

4

Scag 484155

Muffler, Kawasaki FX850 - SCZ

$209.99

$

Usually ships in 2-12 days

0

4

Scag 485316

Muffler, Kohler (ECV860)- SCZ

$228.99

$

Usually ships in 2-12 days

0

4

Scag 484156

Muffler, Kawasaki FX921 - SCZ

$208.99

$

Usually ships in 2-12 days

0

4

Scag 484699

Muffler, Kohler (ECV940)- SCZ

$227.99

$

Usually ships in 2-12 days

0

5

Scag 04001-32

Bolt, Hex Head 3/8-16 x 1-1/4"

$0.99

$

In Stock, Qty 14

0

6

Scag 04030-04

Lockwasher, 3/8" Spring

$0.99

$

In Stock, Qty 8

0

7

Scag 425975

Bracket, Oil Drain Hose

$16.99

$

Usually ships in 2-12 days

0

8

Scag 04010-30

Screw, #8-32 x 1/2"
(Superseded to 04010-32)

$0.99

$

In Stock, Qty 9

0

9

Scag 04021-17

Nut, Elastic Stop #8-32

$0.99

$

In Stock, Qty 5

0

10

Scag 484617

Bushing, Thick Panel Snap

$3.49

$

Usually ships in 2-12 days

0

11

Scag 484585

Cap

$0.99

$

In Stock, only 4 left!

0

12

Scag 48603-12

O-Ring

$0.99

$

In Stock, Qty 8

0

13

Scag 484586

Seal

$0.99

$

Usually ships in 2-12 days

0
