SCZ72V-34FX - Scag Cheetah 72" Zero-Turn Mower, 34hp Kawasaki (SN: F5200001 - F5299999) SCZ Steering & Foot Platform Components Parts Diagram

Cheetah 72" Zero-Turn Mower, 34hp Kawasaki

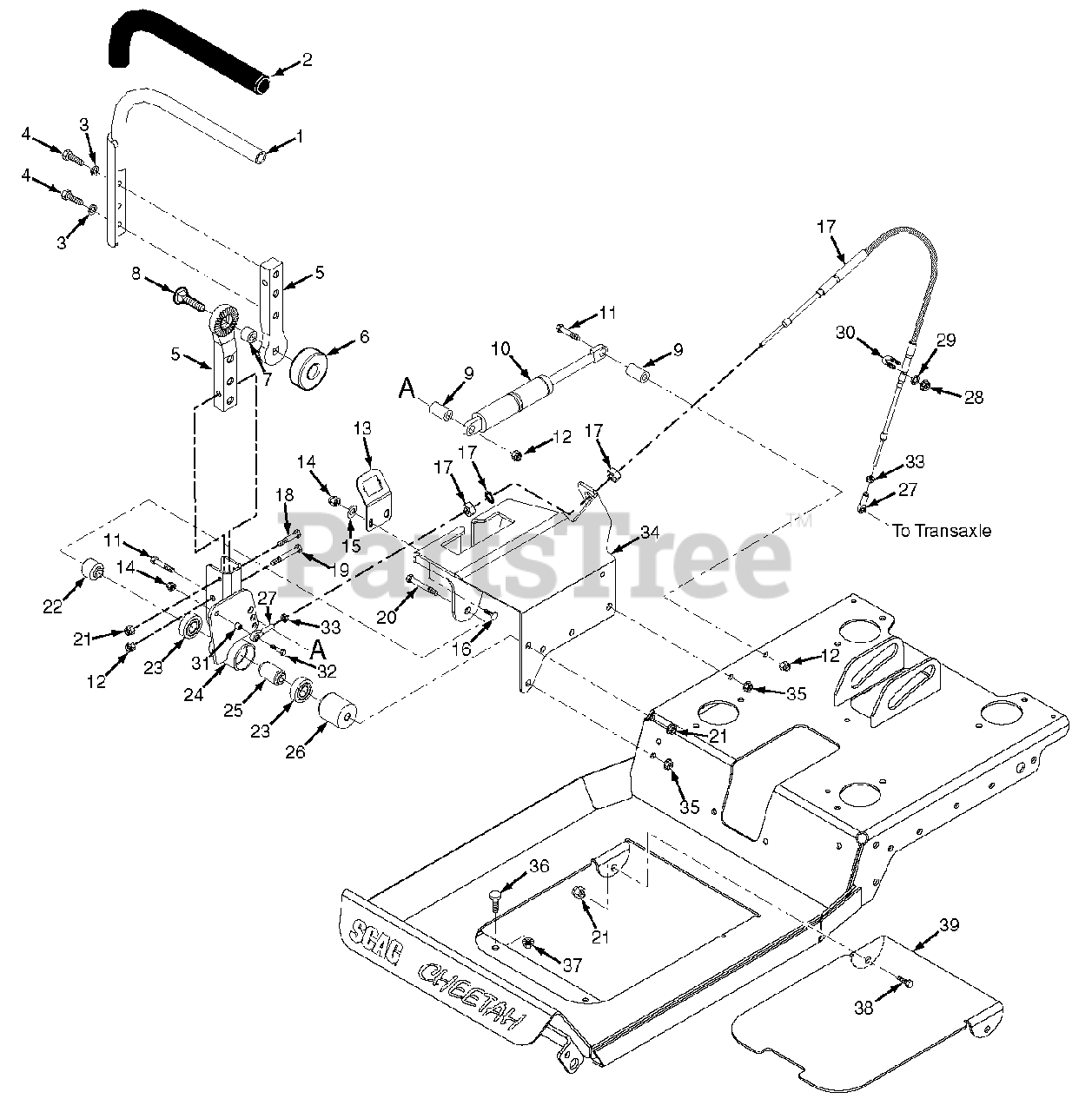

SCZ Steering & Foot Platform Components Parts Diagram

  • Title

1

Scag 461914

Handle Bar w/Grip, LH
(Superseded to 462802)

$147.99

$

In Stock, only 1 left!

0

Scag 461923

Handle Bar w/Grip, RH
(Superseded to 462803)

$147.99

$

In Stock, only 1 left!

0

2

Scag 482340

Grip, Control Handle

$7.99

$

Usually ships in 2-12 days

0

3

Scag 04030-03

Lockwasher, 5/16-" Spring

$0.99

$

In Stock, Qty 20+

0

4

Scag 04001-09

Bolt, Hex Head 5/16-18 x 1'

$0.99

$

In Stock, Qty 20+

0

5

Scag 483238

Pivot, Control Lever

$37.99

$

Usually ships in 2-12 days

0

6

Scag 483269

Knob, Control Handle

$24.99

$

In Stock, only 1 left!

0

7

Scag 483250

Spacer, Rubber

$9.49

$

In Stock, only 3 left!

0

8

Scag 04003-05

Bolt, Carriage 3/8-16 x 1-1/2"

$0.99

$

In Stock, Qty 18

0

9

Scag 43833

Spacer

$18.99

$

Usually ships in 2-12 days

0

10

Scag 484193

Damper

$74.99

$

In Stock, only 2 left!

0

11

Scag 04001-17

Bolt, Hex Head 5/16-18 x 2"

$0.99

$

In Stock, Qty 6

0

12

Scag 04021-10

Nut, Elastic Stop 5/16-18

$0.99

$

In Stock, Qty 20+

0

13

Scag 425389

Bracket, Operator Presence Switch

$74.99

$

Usually ships in 2-12 days

0

14

Scag 04021-08

Nut, Elastic Stop 1/4-20

$0.99

$

In Stock, Qty 10

0

15

Scag 04040-14

Flatwasher, 1/4-.312 x .750 x .065

$0.99

$

In Stock, only 4 left!

0

16

Scag 04003-02

Bolt, Carriage 1/4-20 x 3/4"

$0.99

$

In Stock, Qty 20+

0

17

Scag 484114

Control Cable, Hydro

$145.99

$

Usually ships in 2-12 days

0

18

Scag 04001-45

Bolt, Hex Head 3/8-16 x 2"

$0.99

$

In Stock, Qty 9

0

19

Scag 04001-17

Bolt, Hex Head 5/16-18 x 2"

$0.99

$

In Stock, Qty 6

0

20

Scag 04001-100

Bolt, Hex Head 3/8-16 x 6"

$6.49

$

Usually ships in 2-12 days

0

21

Scag 04021-09

Nut, Elastic Stop 3/8-16

$0.99

$

In Stock, Qty 20+

0

22

Scag 43607

Spacer, Controls

$5.99

$

Usually ships in 2-12 days

0

23

Scag 48224

Bearing

$13.99

$

In Stock, Qty 20+

0

24

Scag 452110

Pivot Weldment, Control Arm LH

$65.99

$

Usually ships in 2-12 days

0

Scag 452111

Pivot Weldment, Control Arm RH

$65.99

$

Usually ships in 2-12 days

0

25

Scag 43600

Spacer, Bearing

$10.99

$

Usually ships in 2-12 days

0

26

Scag 43823

Spacer, Controls

$16.99

$

Usually ships in 2-12 days

0

27

Scag 484040

Rod End, 1/4-28 RH Thread

$18.99

$

Usually ships in 2-12 days

0

28

Scag 04020-31

Nut, Jam 5/16-24 UNF-2B

$0.99

$

In Stock, Qty 9

0

29

Scag 04030-03

Lockwasher, 5/16" Spring

$0.99

$

In Stock, Qty 20+

0

30

Scag 04100-04

U-Bolt, 5/16-24

$4.99

$

Usually ships in 2-12 days

0

31

Scag 43827

Spacer

$4.99

$

Usually ships in 2-12 days

0

32

Scag 04001-59

Bolt, Hex Head 1/4-20 x 1-1/4"

$0.99

$

In Stock, Qty 6

0

33

Scag 04020-22

Nut, Jam 1/4-28 UNF

$

$

Currently unavailable

34

Scag 462264

Bracket Weldment, Control Lever RH w/Decal
(Superseded to 462349)

$100.99

$

Usually ships in 2-12 days

0

Scag 462263

Bracket Weldment, Control Lever LH w/Decal
(Superseded to 462348)

$100.99

$

Usually ships in 2-12 days

0

35

Scag 04019-04

Nut, Serrated Flange 3/8-16

$0.99

$

In Stock, Qty 20+

0

36

Scag 484201

Bumper, Rubber

$3.49

$

Usually ships in 2-12 days

0

37

Scag 04019-03

Nut, Serrated Flange 5/16-18

$0.99

$

In Stock, Qty 20+

0

38

Scag 04001-19

Bolt, Hex Head 3/8-16 x 1"

$0.99

$

In Stock, Qty 7

0

39

Scag 425566

Cover, Footplate

$80.99

$

Usually ships in 2-12 days

0
