SCZ72V-34FX - Scag Cheetah 72" Zero-Turn Mower, 34hp Kawasaki (SN: F5200001 - F5299999) SCZ Fuel System - EPA Phase 2 (Models Produced Prior To 1/1/2011) Parts Diagram

Cheetah 72" Zero-Turn Mower, 34hp Kawasaki

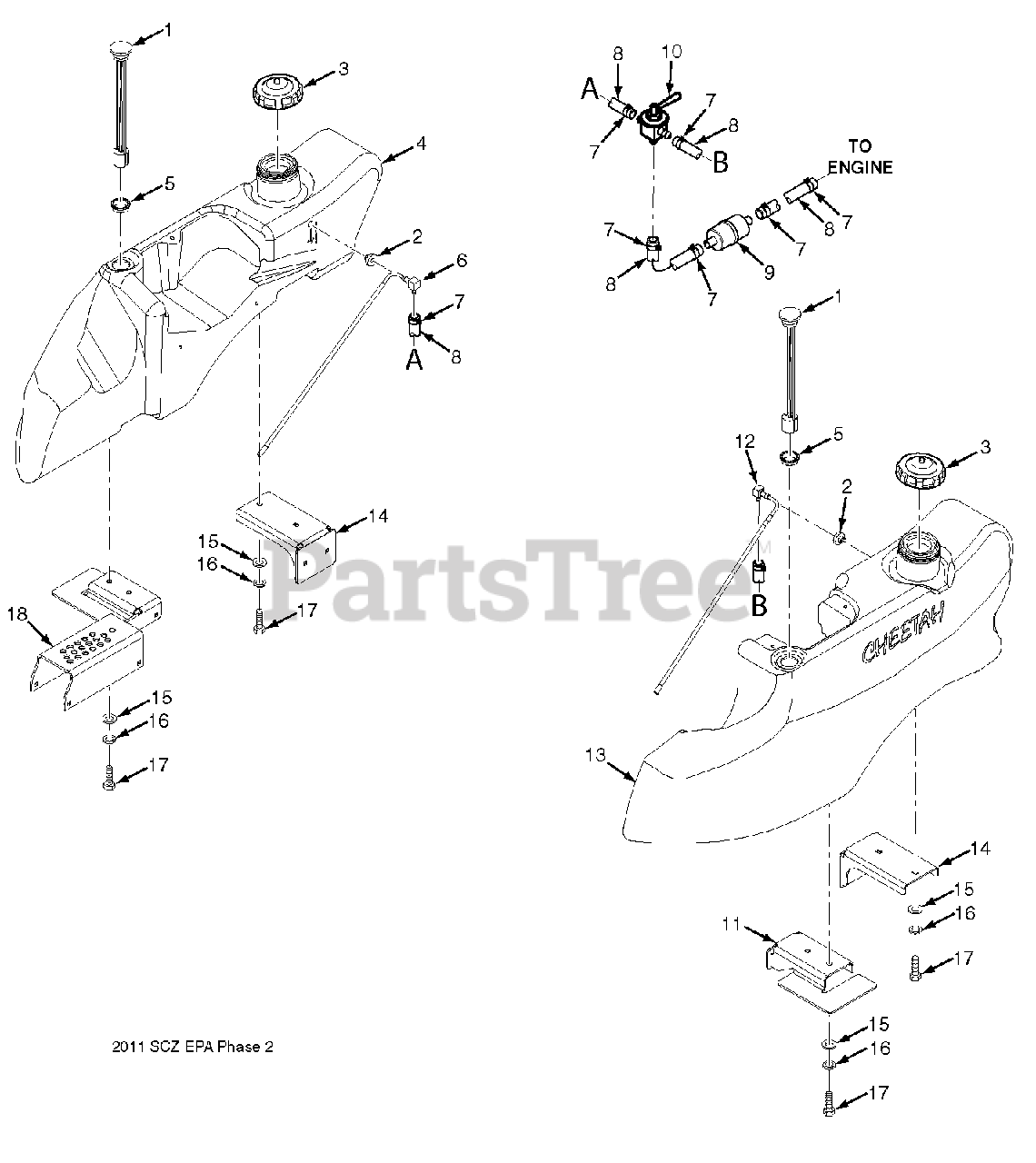

SCZ Fuel System - EPA Phase 2 (Models Produced Prior To 1/1/2011) Parts Diagram

  • Title

1

Scag 484323

Fuel Gauge

$96.99

$

In Stock, only 4 left!

0

2

Scag 482571

Bushing, .56 Dia. Viton

$12.99

$

In Stock, Qty 20+

0

3

Scag 483792

Cap, Fuel Tank

$26.99

$

In Stock, only 4 left!

0

4

Scag 462245

Fuel Tank Assembly, RH

Note: (incl. #1, 2, 5, 6)

$397.99

$

Usually ships in 2-12 days

0

5

Scag 484242

Grommet

$21.99

$

In Stock, only 2 left!

0

6

Scag 484145

Fuel Tube Assembly, RH
(Superseded to 484553)

$30.99

$

Usually ships in 2-12 days

0

7

Scag 48059-01

Clamp, Fuel Hose 1/4" ID

$0.99

$

In Stock, Qty 7

0

8

Scag 483617

Fuel Hose, 1/4" Non-Perm

Note: (order by inch)

$0.99

$

In Stock, Qty 20+

0

9

Fuel Filter

Note: Available through the individual engine manufacturer.

$

$

Not available

10

Scag 482212

Valve, Fuel Shut-Off

$43.99

$

In Stock, only 1 left!

0

11

Scag 425573

Mounting Bracket, Fuel Tank Front

$38.99

$

Usually ships in 2-12 days

0

12

Scag 484162

Fuel Tube Assembly, LH
(Superseded to 484552)

$30.99

$

In Stock, only 2 left!

0

13

Scag 462244

Fuel Tank Assembly, LH

Note: (incl. #1, 2, 5, 12)

$384.99

$

Usually ships in 2-12 days

0

14

Scag 425350

Mounting Bracket, Fuel Tank Rear

$45.99

$

Usually ships in 2-12 days

0

15

Scag 04040-15

Flatwasher, 5/16-.375 x .875 x .083

$0.99

$

In Stock, Qty 20+

0

16

Scag 04030-03

Lockwasher, 5/16" Spring

$0.99

$

In Stock, Qty 20+

0

17

Scag 04001-08

Bolt, Hex Head 5/16-18 x 3/4"

$0.99

$

In Stock, Qty 20+

0

18

Scag 425574

Adjustment Bracket, Upper Cut Height

$101.99

$

Usually ships in 2-12 days

0
