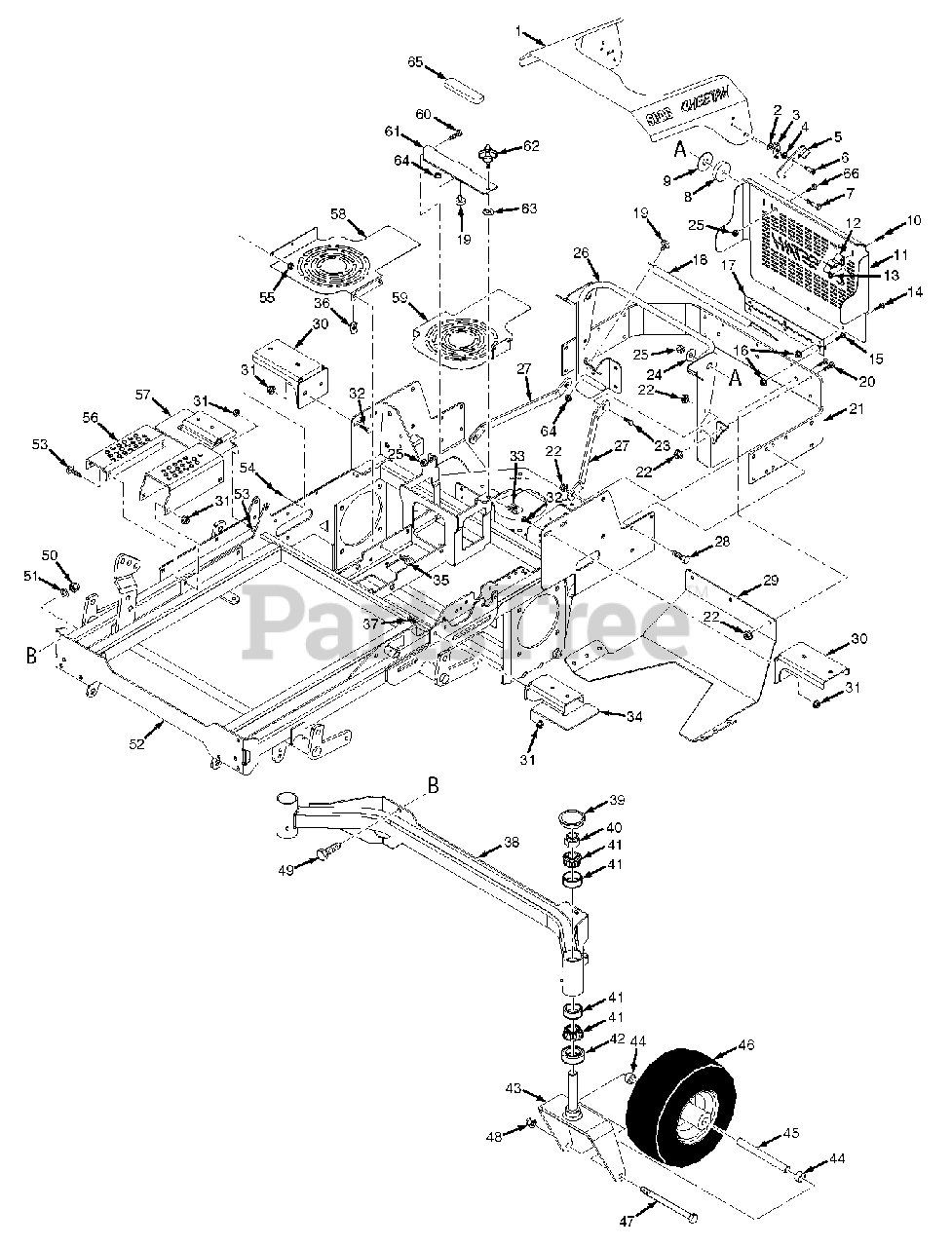

SCZ72V-34CV - Scag Cheetah 72" Zero-Turn Mower, 34hp Kohler (SN: K1100001 - K1199999) Sheet Metal Components Parts Diagram

Cheetah 72" Zero-Turn Mower, 34hp Kohler

Sheet Metal Components Parts Diagram

  • Title

1

Scag 462265

Hood Assembly w/Decals
(Superseded to 462721)

$341.99

$

Usually ships in 2-12 days

0

2

Scag 04040-05

Flatwasher, 3/8-.406 x .812 x .065

$0.99

$

In Stock, only 4 left!

0

3

Scag 424634

Lock, Hood Latch

$11.99

$

In Stock, only 2 left!

0

4

Scag 483507

Spring, Hood Latch

$6.49

$

In Stock, only 1 left!

0

5

Scag 424633

Latch, Hood

$12.99

$

In Stock, only 4 left!

0

6

Scag 04009-07

Bolt, Shoulder

$4.49

$

In Stock, Qty 6

0

7

Scag 04001-21

Bolt, Hex Head 3/8-16 x 1-3/4"

$0.99

$

In Stock, Qty 20+

0

8

Scag 43740

Spacer, Hood

$29.99

$

Usually ships in 2-12 days

0

9

Scag 483471

Disc, Anti-Friction

$7.99

$

Usually ships in 2-12 days

0

10

Scag 04010-30

Screw, #8-32 x 1/2"
(Superseded to 04010-32)

$0.99

$

In Stock, Qty 9

0

11

Scag 425995

Belt Guard, Rear

$95.99

$

Usually ships in 2-12 days

0

11

Scag 425996

Belt Guard, Rear - Kohler

$84.99

$

Usually ships in 2-12 days

0

12

Scag 484190

Spring Clip

$8.49

$

In Stock, only 3 left!

0

13

Scag 04021-17

Nut, Elastic Stop #8-32

$0.99

$

In Stock, Qty 5

0

14

Scag 04003-07

Bolt, Carriage 1/4-20 x 1/2"

$0.99

$

In Stock, Qty 9

0

15

Scag 04003-02

Bolt, Carriage 1/4-20 x 3/4"

$0.99

$

In Stock, Qty 20+

0

16

Scag 04019-02

Nut, Serrated Flange 1/4-20

$0.99

$

In Stock, Qty 20+

0

17

Scag 484143

Hinge, Belt Cover

$103.99

$

Usually ships in 2-12 days

0

18

Scag 425578

ROPS Heatshield
(Superseded to 425677)

$18.99

$

Usually ships in 2-12 days

0

18

Scag 425677

ROPS Heatshield - Kohler

$18.99

$

Usually ships in 2-12 days

0

19

Scag 481284

Bumper, Rubber

$16.99

$

In Stock, only 3 left!

0

20

Scag 04104-01

Button Head Capscrew, Torx 3/8-16 x 1"

$3.99

$

Usually ships in 2-12 days

0

21

Scag 425232

Bumper, Rear
(Superseded to 425575)

$129.99

$

Usually ships in 2-12 days

0

22

Scag 04019-04

Nut, Serrated Flange 3/8-16

$0.99

$

In Stock, Qty 20+

0

23

Scag 04001-19

Bolt, Hex Head 3/8-16 x 1"

$0.99

$

In Stock, Qty 7

0

24

Scag 04041-11

Flatwasher, 3/8-.406 x 1.5 x 7 Ga.

$1.99

$

In Stock, Qty 5

0

25

Scag 04021-09

Nut, Elastic Stop 3/8-16

$0.99

$

In Stock, Qty 20+

0

26

Scag 452223

Mount Weldment, Hood

$179.99

$

Usually ships in 2-12 days

0

26

Scag 452267

Mount Weldment, Hood - Kohler

$178.99

$

Usually ships in 2-12 days

0

27

Scag 425408

Brace, Hood Support

$18.99

$

Usually ships in 2-12 days

0

28

Scag 04001-32

Bolt, Hex Head 3/8-16 x 1-1/4"

$0.99

$

In Stock, Qty 14

0

29

Scag 425579

SCZ Skid Plate, Kawasaki FX

$95.99

$

Usually ships in 2-12 days

0

29

Scag 425582

SCZ Skid Plate, Briggs & Stratton & Kohler

$99.99

$

Usually ships in 2-12 days

0

30

Scag 425350

Mounting Bracket, Fuel Tank Rear

$46.99

$

Usually ships in 2-12 days

0

31

Scag 04019-03

Nut, Serrated Flange 5/16-18

$0.99

$

In Stock, Qty 20+

0

32

Scag 04003-12

Bolt, Carriage 5/16-18 x 3/4"

$0.99

$

In Stock, Qty 20+

0

33

Scag 04110-03

U-Nut, 3/8-16

$2.49

$

In Stock, Qty 20+

0

34

Scag 425573

Mounting Bracket, Fuel Tank Front

$39.99

$

Usually ships in 2-12 days

0

35

Scag 04001-14

Bolt, Hex Head 1/4-20 x 1"

$0.99

$

In Stock, Qty 15

0

36

Scag 04110-01

U-Nut, 1/4-20

$1.49

$

In Stock, Qty 18

0

37

Scag 04003-12

Bolt, Carriage 5/16-18 x 3/4"

$0.99

$

In Stock, Qty 20+

0

38

Scag 452193

Caster Support Weldment, 61V

$420.99

$

Usually ships in 2-12 days

0

38

Scag 452194

Caster Support Weldment, 72V

$469.99

$

Usually ships in 2-12 days

0

39

Scag 484195

Cap, Grease

$2.99

$

In Stock, Qty 20+

0

40

Scag 04021-20

Nut, Elastic Stop 1"-14

$4.99

$

In Stock, Qty 20+

0

41

Scag 481657

Bearing w/Race
(Superseded to 48668)

$24.99

$

In Stock, Qty 20+

0

42

Scag 481025

Seal, 2" OD x 1.625 Bore

$4.99

$

In Stock, Qty 20+

0

43

Scag 451416

Yoke Weldment

$100.99

$

In Stock, Qty 20+

0

44

Scag 43584

Spacer, Caster Wheel

$2.99

$

In Stock, Qty 20+

0

45

Scag 43583

Sleeve, Caster Wheel

$14.99

$

In Stock, Qty 20+

0

46

Scag 9278

Caster Wheel Assy.

$191.99

$

In Stock, Qty 20+

0

46

Scag 482621

Bearing

$21.99

$

In Stock, Qty 20+

0

46

Scag 48114-10

Grease Fitting

$3.99

$

In Stock, only 2 left!

0

47

Scag 04001-167

Bolt, Hex Head 1/2-13 x 9-1/2"

$7.49

$

In Stock, Qty 20+

0

48

Scag 04021-07

Nut, Elastic Stop 1/2-13

$0.99

$

In Stock, Qty 20+

0

49

Scag 04001-28

Bolt, Hex Head 7/16-14 x 1-1/4"

$0.99

$

In Stock, Qty 12

0

50

Scag 04021-11

Nut, Elastic Stop 7/16-14

$0.99

$

In Stock, Qty 10

0

51

Scag 04030-05

Lockwasher, 7/16-" Spring

$0.99

$

In Stock, Qty 8

0

52

Scag 462563

Mainframe Assy. w/Decals

$2043.99

$

Usually ships in 2-12 days

0

53

Scag 04001-09

Bolt, Hex Head 5/16-18 x 1"

$0.99

$

In Stock, Qty 20+

0

53

Scag 04030-03

Lockwasher, 5/16" Spring

$0.99

$

In Stock, Qty 20+

0

54

Scag 04001-01

Bolt, Hex Head 1/4-20 x 3/4"

$0.99

$

In Stock, Qty 18

0

55

Scag 04019-02

Nut, Serrated Flange 1/4-20

$0.99

$

In Stock, Qty 20+

0

56

Scag 452408

Adjustment Bracket, Lower Cut Height

$67.99

$

Usually ships in 2-12 days

0

57

Scag 425574

Adjustment Bracket, Upper Cut Height

$103.99

$

Usually ships in 2-12 days

0

58

Scag 425300

Fan Cover, RH

$44.99

$

Usually ships in 2-12 days

0

59

Scag 425299

Fan Cover, LH

$44.99

$

Usually ships in 2-12 days

0

60

Scag 04001-19

Bolt, Hex Head 3/8-16 x 1"

$0.99

$

In Stock, Qty 7

0

61

Scag 425422

Cover, Battery Box

$22.99

$

Usually ships in 2-12 days

0

62

Scag 481625-01

Knob w/Stud

$2.99

$

In Stock, Qty 20+

0

63

Scag 04024-02

Nut, Push-On 3/8"

$1.49

$

In Stock, Qty 5

0

64

Scag 04019-03

Nut, Serrated Flange 5/16-18

$0.99

$

In Stock, Qty 20+

0

65

Scag 48661

Pad, Rubber

$4.99

$

Usually ships in 2-12 days

0

66

Scag 04108-03

Capscrew, Button Head 3/8-16 x 1-1/4"

$0.99

$

Usually ships in 2-12 days
