SCZ61V-34KH - Scag Cheetah 61" Zero-Turn Mower, 34hp Kohler (SN: H7700001 - H7799999) SCZ Drive System Components Parts Diagram

Cheetah 61" Zero-Turn Mower, 34hp Kohler

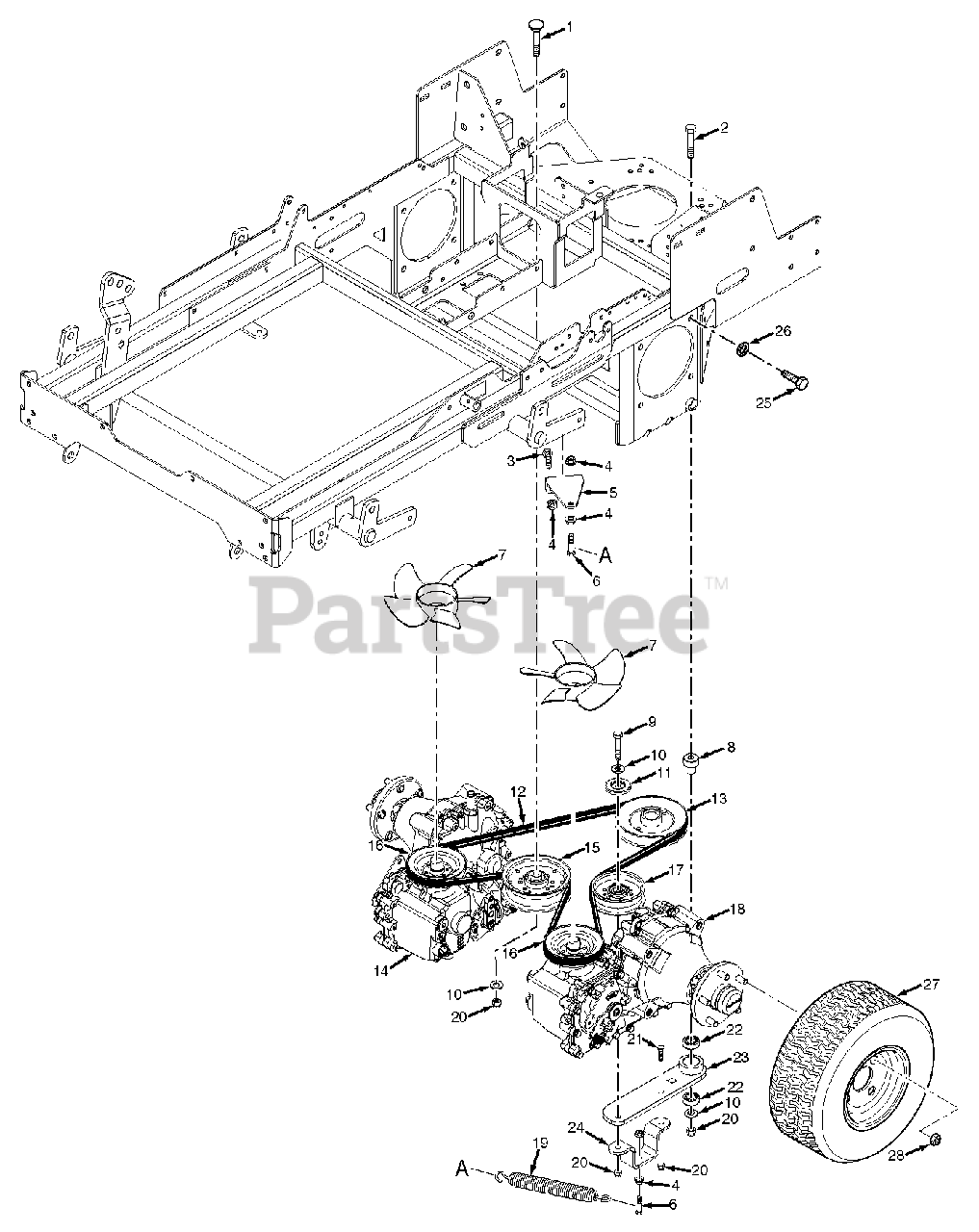

SCZ Drive System Components Parts Diagram

  • Title

1

Scag 04003-21

Bolt, Carriage 3/8-16 x 2-1/2"

$2.49

$

Usually ships in 2-12 days

0

2

Scag 04001-54

Bolt, Hex Head 3/8-16 x 3"

$1.49

$

In Stock, Qty 10

0

3

Scag 04001-19

Bolt, Hex Head 3/8-16 x 1"

$0.99

$

In Stock, Qty 7

0

4

Scag 04019-04

Nut, Serrated Flange 3/8-16

$0.99

$

In Stock, Qty 20+

0

5

Scag 425385

Mounting Bracket, Spring - Idler Arm

$14.99

$

Usually ships in 2-12 days

0

6

Scag 04001-136

Bolt, Hex Head 3/8-16 x 1-1/2"

Note: Grade 8

$0.99

$

In Stock, Qty 20+

0

7

Scag HG71906

Kit, Fan / Pulley

$224.99

$

Usually ships in 2-12 days

0

8

Scag 43504

Pivot, Idler Long

$28.99

$

In Stock, only 1 left!

0

9

Scag 04001-22

Bolt, Hex Head 3/8-16 x 2-3/4"

$1.49

$

In Stock, Qty 10

0

10

Scag 04043-04

Flatwasher, 3/8-.391 x .938 x .105 HD

$0.99

$

In Stock, Qty 20+

0

11

Scag 424367

Dust Shield

$2.49

$

Usually ships in 2-12 days

0

12

Scag 483165

Belt, Pump Drive

$69.99

$

In Stock, Qty 20+

0

13

Scag 484098

Pulley, 5.80" Dia. - 1.125 Bore

$89.99

$

In Stock, only 1 left!

0

14

Scag 483798

Transaxle, RH

$2364.99

$

Usually ships in 2-12 days

0

15

Scag 483215

Pulley, 5" Dia. Idler

$62.99

$

In Stock, Qty 20+

0

16

Scag HG71906

Kit, Fan / Pulley

$224.99

$

Usually ships in 2-12 days

0

17

Scag 484128

Pulley, 4" Dia. Idler

$23.99

$

In Stock, only 1 left!

0

18

Scag 483797

Transaxle, LH

$2364.99

$

Usually ships in 2-12 days

0

19

Scag 484202

Spring, Idler Arm

$103.99

$

In Stock, Qty 5

0

20

Scag 04021-09

Nut, Elastic Stop 3/8-16

$0.99

$

In Stock, Qty 20+

0

21

Scag 04001-32

Bolt, Hex Head 3/8-16 x 1-1/4"

$0.99

$

In Stock, Qty 14

0

22

Scag 48224

Bearing

$13.99

$

In Stock, Qty 20+

0

23

Scag 462259

Idler Arm Assembly

Note: (incl. # 22)

$79.99

$

Usually ships in 2-12 days

0

24

Scag 425386

Mounting Bracket, Idler

$19.99

$

In Stock, only 1 left!

0

25

Scag 04001-70

Bolt, Hex Head 1/2-13 x 1-1/4"

$1.49

$

In Stock, Qty 5

0

26

Scag 04030-06

Lockwasher, 1/2" Spring

$0.99

$

In Stock, only 2 left!

0

27

Scag 484024

Wheel Assembly, 24 x 12-12 4-Ply (5-Hole)

$489.99

$

Usually ships in 2-12 days

0

27

Scag 484023

Rim w/Valve Stem

$214.99

$

Usually ships in 2-12 days

0

27

Scag 481852

Tire, 24 x 12-12 4-Ply

$297.99

$

Usually ships in 2-12 days

0

28

Scag 04028-02

Lug Nut, 1/2-20

$1.99

$

In Stock, Qty 20+

0
