Scag SCZ61V-34KH - Scag Cheetah 61" Zero-Turn Mower, 34hp Kohler (SN: G3800001 - G3899999) Cutter Deck Controls Parts Lookup with Diagrams

1

Scag 481477

Grip, Deck Latch

$4.49

$

In Stock, only 2 left!

2

Scag 462253

Deck Latch Assembly w/Grip

$38.99

$

Usually ships in 2-12 days

3

Scag 43668

Spacer, Deck Latch

$2.99

$

Usually ships in 2-12 days

4

Scag 484191

Spring, Torsion Return Lever

$7.49

$

Usually ships in 2-12 days

5

Scag 483345

Ring Pin Assembly w/Lanyard

$11.99

$

In Stock, Qty 6

6

Scag 425574

Adjustment Bracket, Upper Cut Height

$101.99

$

Usually ships in 2-12 days

7

Scag 425361

Adjustment Bracket, Lower Cut Height

$45.99

$

Usually ships in 2-12 days

8

Scag 484115

Slide, Height Adjustment

$54.99

$

Usually ships in 2-12 days

9

Scag 43487

Pin, Deck Lift

$26.99

$

In Stock, only 1 left!

10

Scag 04050-10

Retaining Ring, 1/2" External "E"

$0.99

$

In Stock, only 4 left!

11

Scag 484141

Linkage, Deck Lift

$101.99

$

Usually ships in 2-12 days

Scag 481765

Rod End, 1/2-20 RH Female

$41.99

$

In Stock, only 1 left!

Scag 481766

Rod End, 1/2-20 LH Female

$48.99

$

In Stock, only 1 left!

Scag 04020-27

Nut, 1/2-20 UNF Jam

$4.49

$

In Stock, Qty 5

Scag 04020-28

Nut, 1/2-20 UNF LH Jam

$3.49

$

In Stock, Qty 8

12

Scag 04001-72

Bolt, Hex Head 1/2-13 x 2"

$1.99

$

Usually ships in 2-12 days

13

Scag 04040-07

Flatwasher, 1/2-.531 X 1.062 X .095

$0.99

$

In Stock, Qty 5

14

Scag 04003-04

Bolt, Carriage 5/16-18 x 1"

$0.99

$

In Stock, Qty 9

15

Scag 04105-01

Capscrew, 5/8-11 x 1-1/2"

(Superseded to 04108-04) 

$2.99

$

Usually ships in 2-12 days

16

Scag 04030-07

Lockwasher, 5/8" Spring

$0.99

$

In Stock, Qty 19

17

Scag 04019-03

Nut, Serrated Flange 5/16-18

$0.99

$

In Stock, Qty 20+

18

Scag 04019-04

Nut, Serrated Flange 3/8-16

$0.99

$

In Stock, Qty 20+

19

Scag 04021-09

Nut, Elastic Stop 3/8-16

$0.99

$

In Stock, Qty 20+

20

Scag 04001-22

Bolt, Hex Head 3/8-16 x 2-3/4"

$1.49

$

In Stock, Qty 10

21

Scag 04001-136

Bolt, Hex Head 3/8-16 x 1-1/2" Grade 8

$0.99

$

In Stock, Qty 20+

22

Scag 04021-07

Nut, Elastic Stop 1/2-13

$0.99

$

In Stock, Qty 20+

23

Scag 481598

Spring, Deck Lift

$65.99

$

Usually ships in 2-12 days

24

Scag 424504

Pedal, Foot Lift

$14.99

$

In Stock, only 1 left!

25

Scag 04004-44

Stud, 5/8-11 x 22"

$26.99

$

Usually ships in 2-12 days

26

Scag 43526

Swivel Joint, LH

$18.99

$

In Stock, Qty 11

27

Scag 43527

Swivel Joint, RH

$16.99

$

In Stock, Qty 5

28

Scag 04020-09

Nut, 5/8-11 UNC

$0.99

$

In Stock, Qty 20+

29

Scag 04019-04

Nut, Serrated Flange 3/8-16

$0.99

$

In Stock, Qty 20+

30

Scag 48540

Chain

(Superseded to 482628) 

$11.99

$

In Stock, only 3 left!

31

Scag 48114-04

Grease Fitting, 1/4-28 Self Tap

$0.99

$

In Stock, Qty 20+

32

Scag 04040-09

Flatwasher, 5/8"

$0.99

$

In Stock, Qty 12

33

Scag 04061-07

Cotter Pin, 3/16 x 1"

$1.49

$

In Stock, Qty 9

34

Scag 04001-20

Bolt, Hex Head 3/8-16 x 1-1/2"

$0.99

$

In Stock, Qty 20+

35

Scag 04003-40

Bolt, Carriage 7/16-14 x 1-1/4"

$1.49

$

In Stock, Qty 6

36

Scag 04040-11

Flatwasher, 7/16-.500 x 1.25 x .083

$0.99

$

In Stock, Qty 13

37

Scag 04021-11

Nut, Elastic Stop 7/16-14

$0.99

$

In Stock, Qty 10

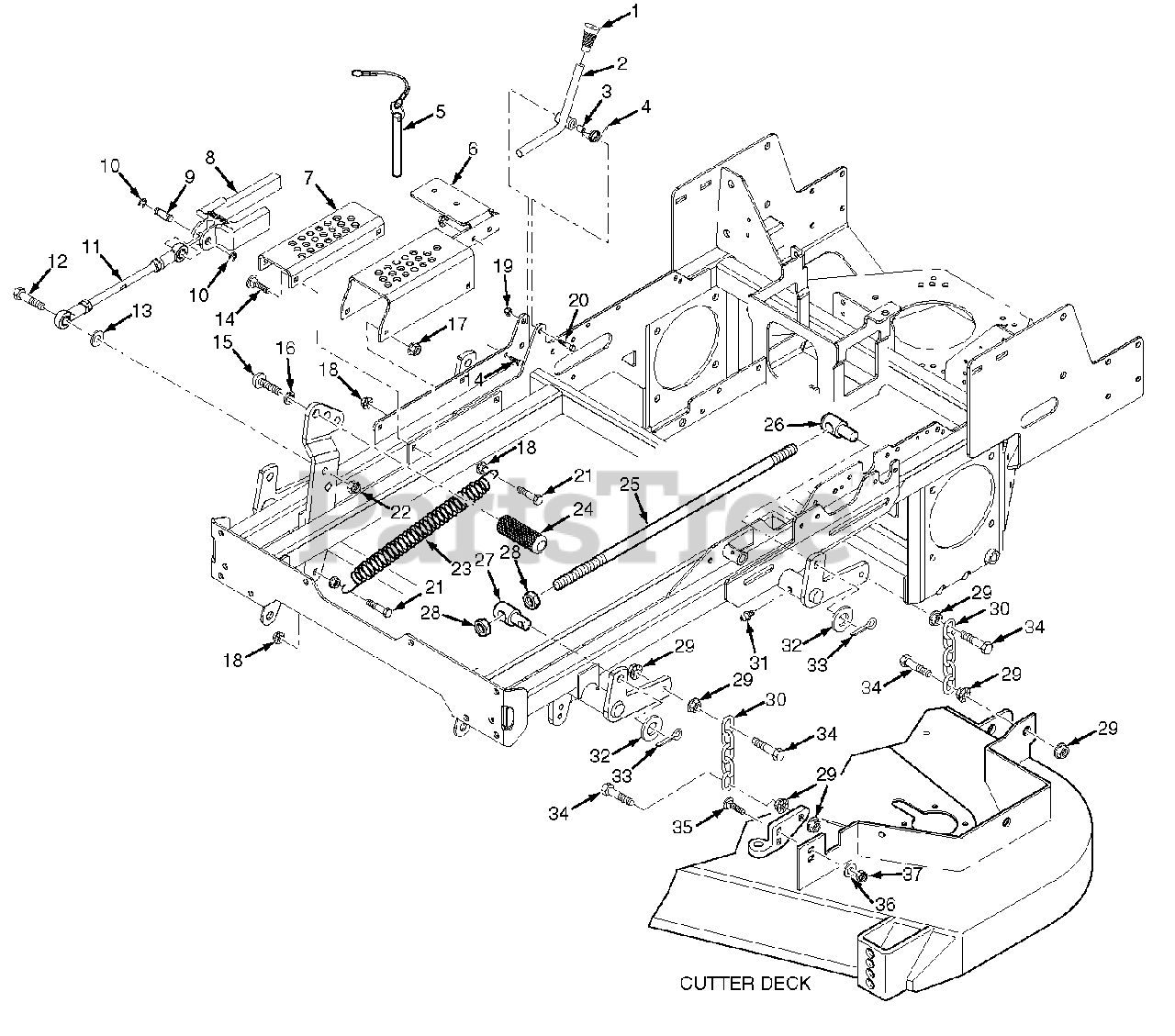

SCZ61V-34KH - Scag Cheetah 61" Zero-Turn Mower, 34hp Kohler (SN: G3800001 - G3899999) Cutter Deck Controls Parts Diagram

Cutter Deck Controls Parts Diagram
