SCZ61V-32CV - Scag Cheetah 61" Zero-Turn Mower, 32hp Kohler (SN: K0500001 - K0599999) SCZ Speed Control Components Parts Diagram

Cheetah 61" Zero-Turn Mower, 32hp Kohler

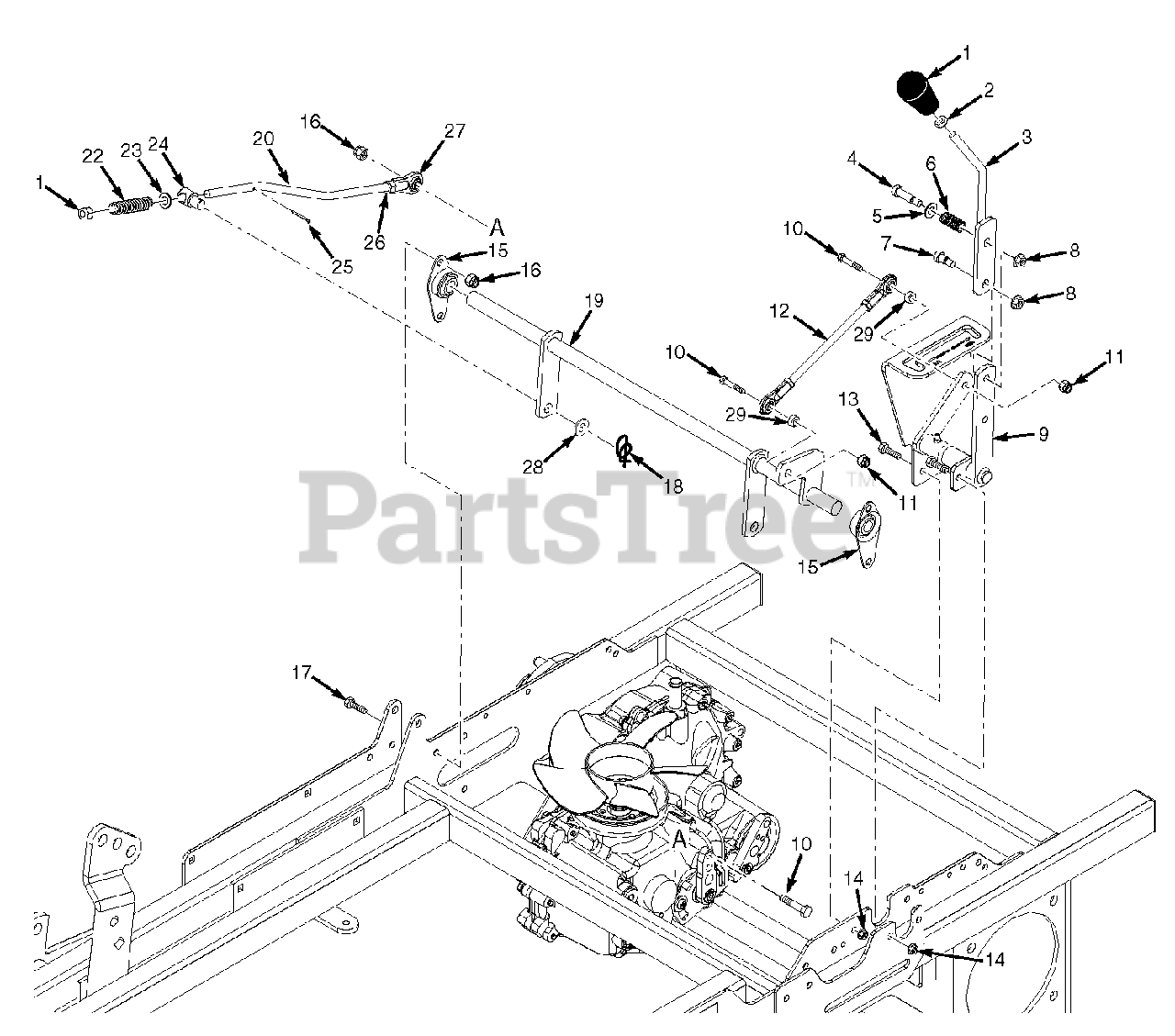

SCZ Speed Control Components Parts Diagram

  • Title

1

Scag 484093

Knob, Soft Touch

$12.99

$

Usually ships in 2-12 days

0

2

Scag 04020-12

Nut, Jam 3/8-16 UNC

$0.99

$

In Stock, only 3 left!

0

3

Scag 452142

Lever Weldment, Speed Control SCZ
(Superseded to 452222)

$29.99

$

Usually ships in 2-12 days

0

4

Scag 04009-11

Bolt, Shoulder 3/8 x 1"

$2.99

$

In Stock, only 4 left!

0

5

Scag 04040-05

Flatwasher, 3/8-.406 x .812 x .065

$0.99

$

In Stock, only 4 left!

0

6

Scag 483601

Spring, Speed Control

$2.99

$

Usually ships in 2-12 days

0

7

Scag 04009-14

Bolt, Shoulder 3/8 x 3/8"

$5.99

$

In Stock, only 3 left!

0

8

Scag 04019-03

Nut, Serrated Flange 5/16-18

$0.99

$

In Stock, Qty 20+

0

9

Scag 452409

Control Weldment, Speed Range Adjust

$119.99

$

In Stock, only 1 left!

0

9

Scag 48114-04

Grease Fitting, 1/4-28 Self Tap

$0.99

$

In Stock, Qty 20+

0

10

Scag 04001-20

Bolt, Hex Head 3/8-16 x 1-1/2"

$0.99

$

In Stock, Qty 20+

0

11

Scag 04021-09

Nut, Elastic Stop 3/8-16

$0.99

$

In Stock, Qty 20+

0

12

Scag 484187

Linkage Assembly, Upper Speed Control

$47.99

$

In Stock, only 2 left!

0

12

Scag 483339

Rod End, 3/8-24 RH

$19.99

$

Usually ships in 2-12 days

0

12

Scag 04020-25

Nut, Jam 3/8-24 UNF

$0.99

$

In Stock, only 2 left!

0

12

Scag 483340

Rod End, 3/8-24 LH

$19.99

$

Usually ships in 2-12 days

0

12

Scag 04020-26

Nut, Jam 3/8-24 UNF LH

$1.99

$

In Stock, only 4 left!

0

13

Scag 04001-09

Bolt, Hex Head 5/16-18 x 1"

$0.99

$

In Stock, Qty 20+

0

14

Scag 04117-01

Nut, Flange Head Elastic Stop 5/16-18

$0.99

$

In Stock, Qty 18

0

15

Scag 484149

Bearing, Self Align

$12.99

$

Usually ships in 2-12 days

0

16

Scag 04117-01

Nut, FLG HH Elastic Stop 5/16-18

$0.99

$

In Stock, Qty 18

0

17

Scag 04001-08

Bolt, Hex Head 5/16-18 x 3/4"

$0.99

$

In Stock, Qty 20+

0

18

Scag 04069-02

Pin, Rue Cotter 1/2" Dia.

$4.99

$

In Stock, only 1 left!

0

19

Scag 452138

Speed Control Bellcrank Weldment

$122.99

$

Usually ships in 2-12 days

0

20

Scag 44183

Rod, Speed Linkage
(Superseded to 485318)

$8.49

$

In Stock, only 1 left!

0

21

Scag 04021-18

Nut, Elastic Stop 3/8-24

$1.49

$

In Stock, Qty 9

0

22

Scag 484175

Spring

$31.99

$

Usually ships in 2-12 days

0

23

Scag 04042-04

Flatwasher, 3/8-.406 x .734 x .063

$7.49

$

Usually ships in 2-12 days

0

24

Scag 43751

Bushing, Pivot
(Superseded to 485317)

$13.99

$

Usually ships in 2-12 days

0

25

Scag 04061-01

Cotter Pin

$0.99

$

In Stock, Qty 11

0

26

Scag 04020-14

Nut, 3/8-24 UNF Jam

$0.99

$

In Stock, only 3 left!

0

27

Scag 484177

Rod End, 3/8-24

$21.99

$

In Stock, only 1 left!

0

28

Scag 04043-04

Flatwasher, 3/8-.391 x .938 x .105

$0.99

$

In Stock, Qty 20+

0

29

Scag 43063

Spacer

$7.99

$

In Stock, only 2 left!

0
