SCZ61V-31FX - Scag Cheetah 61" Zero-Turn Mower, 31hp Kawasaki (SN: P0200001 - P0299999) SCZ STEERING COMPONENTS Parts Diagram

Cheetah 61" Zero-Turn Mower, 31hp Kawasaki

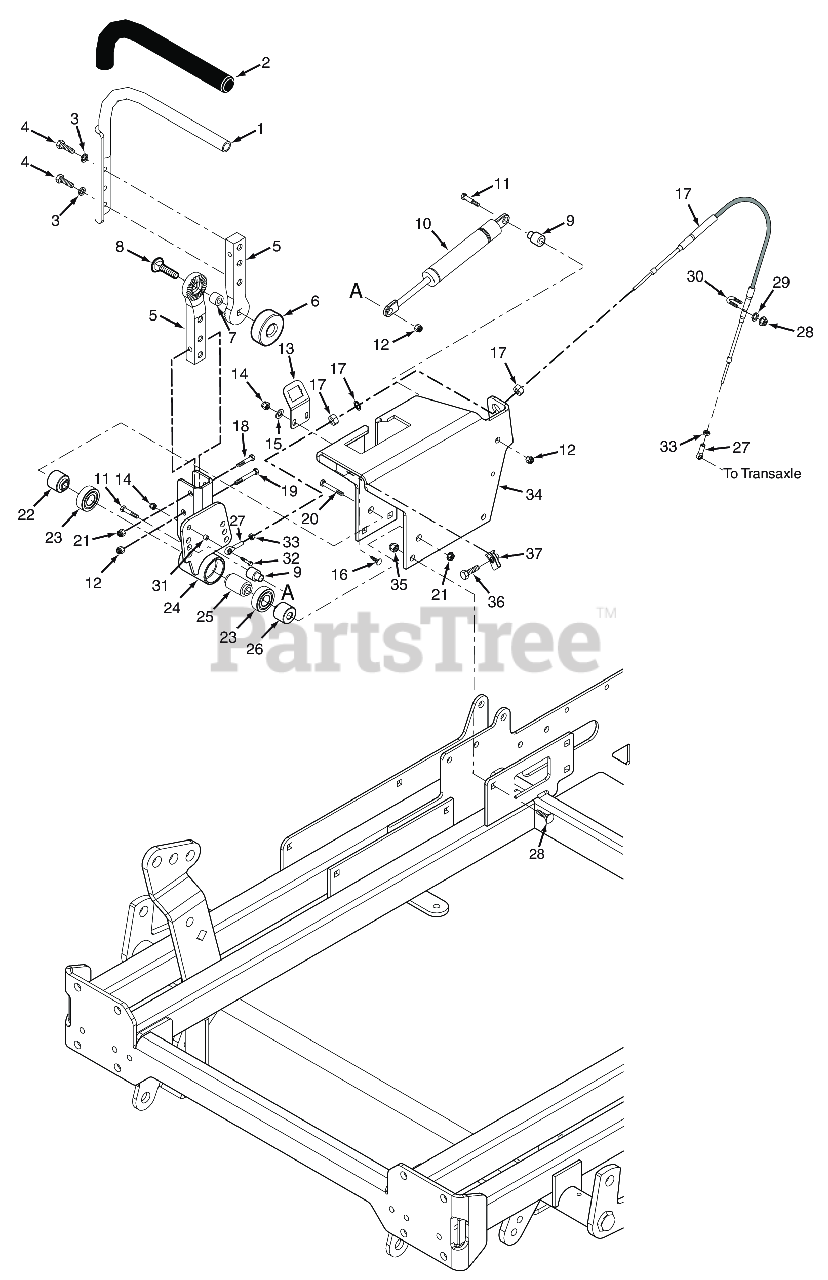

SCZ STEERING COMPONENTS Parts Diagram

  • Title

1

Scag 462804

Handle Bar w/Grip - LH

$64.99

$

Usually ships in 2-12 days

0

1

Scag 462805

Handle Bar w/Grip - RH

$64.99

$

Usually ships in 2-12 days

0

2

Scag 484376

Grip, Control Handle

$11.99

$

Usually ships in 2-12 days

0

3

Scag *04030-03

Lockwasher, 5/16 (.317 x .586 x .078) Helical Spring

$

$

Currently unavailable

4

Scag 04001-09

Bolt, Heax Head 5/16-18 x 1" (48V / 52V)

$0.99

$

In Stock, Qty 20+

0

5

Scag 483238

Pivot, Control Lever

$37.99

$

Usually ships in 2-12 days

0

6

Scag 483269

Knob, Control Handle

$24.99

$

In Stock, only 1 left!

0

7

Scag 483250

Spacer, Rubber

$9.49

$

In Stock, only 3 left!

0

8

Scag 04003-05

Bolt, RDHD Carr. 3/8-16 x 1-1/2 (52" & 61")

$0.99

$

In Stock, Qty 18

0

9

Scag 43602

Spacer, Pump Dampener

$3.49

$

In Stock, only 1 left!

0

10

Scag 484193

Damper, Steering

$74.99

$

In Stock, only 1 left!

0

11

Scag 04001-17

Bolt, Hex Head 5/16-18 x 2-1/2" (x3) (35BV & 37BV-EFI)

$0.99

$

In Stock, Qty 6

0

12

Scag 04021-10

HEX NUT, ELASTIC STOP LOCK, 5/16-18

$0.99

$

In Stock, Qty 20+

0

13

Scag 425389

Bracket, Operator Presence Switch

$74.99

$

Usually ships in 2-12 days

0

14

Scag 04021-08

HEX, NUT, ELASTIC STOP LOCK, 1/4-20

$0.99

$

In Stock, Qty 10

0

15

Scag 04040-14

Flatwasher, 1/4" (.312 x .750 x .065")

$0.99

$

In Stock, only 4 left!

0

16

Scag 04003-02

Serr. Fl. Hex Head CPSCR, 1/4-20 x 3/4"

$0.99

$

In Stock, Qty 20+

0

17

Scag 484114

Control Cable, Hydro

$145.99

$

Usually ships in 2-12 days

0

18

Scag 04001-17

Bolt, Hex Head 5/16-18 x 2-1/2" (x3) (35BV & 37BV-EFI)

$0.99

$

In Stock, Qty 6

0

19

Scag 04001-17

Bolt, Hex Head 5/16-18 x 2-1/2" (x3) (35BV & 37BV-EFI)

$0.99

$

In Stock, Qty 6

0

20

Scag 04001-100

Bolt, 3/8-16 x 6.00" Hex Head

$6.49

$

Usually ships in 2-12 days

0

21

Scag 04021-09

HEX NUT, ELASTIC STOP LOCK, 3/8-16

$0.99

$

In Stock, Qty 20+

0

22

Scag 43607

Spacer, Controls

$5.99

$

Usually ships in 2-12 days

0

23

Scag 48224

BEARINGS, BALL, NEUTRAL RETURN

$13.99

$

In Stock, Qty 20+

0

24

Scag 452406

Pivot Weldment, Control Arm LH

$60.99

$

Usually ships in 2-12 days

0

24

Scag 452407

Pivot Weldment, Control Arm RH

$64.99

$

Usually ships in 2-12 days

0

25

Scag 43600

Spacer, Bearing

$10.99

$

Usually ships in 2-12 days

0

26

Scag 43823

Spacer, Controls

$16.99

$

Usually ships in 2-12 days

0

27

Scag 484040

Rod End, 1/4-28 RH Thread

$18.99

$

Usually ships in 2-12 days

0

28

Scag 04020-31

Nut, Jam 5/16-24 UNF-2B

$0.99

$

In Stock, Qty 9

0

29

Scag *04030-03

Lockwasher, 5/16 (.317 x .586 x .078) Helical Spring

$

$

Currently unavailable

30

Scag 04100-04

U-Bolt, 5/16-24

$4.99

$

Usually ships in 2-12 days

0

31

Scag 43827

Spacer

$4.99

$

Usually ships in 2-12 days

0

32

Scag 04001-59

SERR. FLG. HEX HEAD CAPSCREW, 5/16-18 X 3/4

$0.99

$

In Stock, Qty 6

0

33

Scag 04020-22

Nut, Jam 1/4-28 UNF

$

$

Currently unavailable

34

Scag 462561

Bracket Weldment, Control Lever RH w/Decal

$112.99

$

Usually ships in 2-12 days

0

34

Scag 462560

Bracket Weldment, Control Lever LH w/Decal

$112.99

$

Usually ships in 2-12 days

0

35

Scag 04019 -03

Nut, Serrated Flange 5/16-18 (Right Front Engine Mounting, Briggs and Kohler Only)

$

$

Currently unavailable

36

Scag 04107-04

Bolt, Hex Head 3/8-16 x 2" Special Lock

$1.49

$

In Stock, Qty 8

0

37

Scag 04110-03

U-Nut, 3/8-16 (short)

$2.49

$

In Stock, Qty 20+

0
