SCZ61V-31FX - Scag Cheetah 61" Zero-Turn Mower, 31hp Kawasaki (SN: P0200001 - P0299999) SCZ ELECTRICAL SYSTEM Parts Diagram

Cheetah 61" Zero-Turn Mower, 31hp Kawasaki

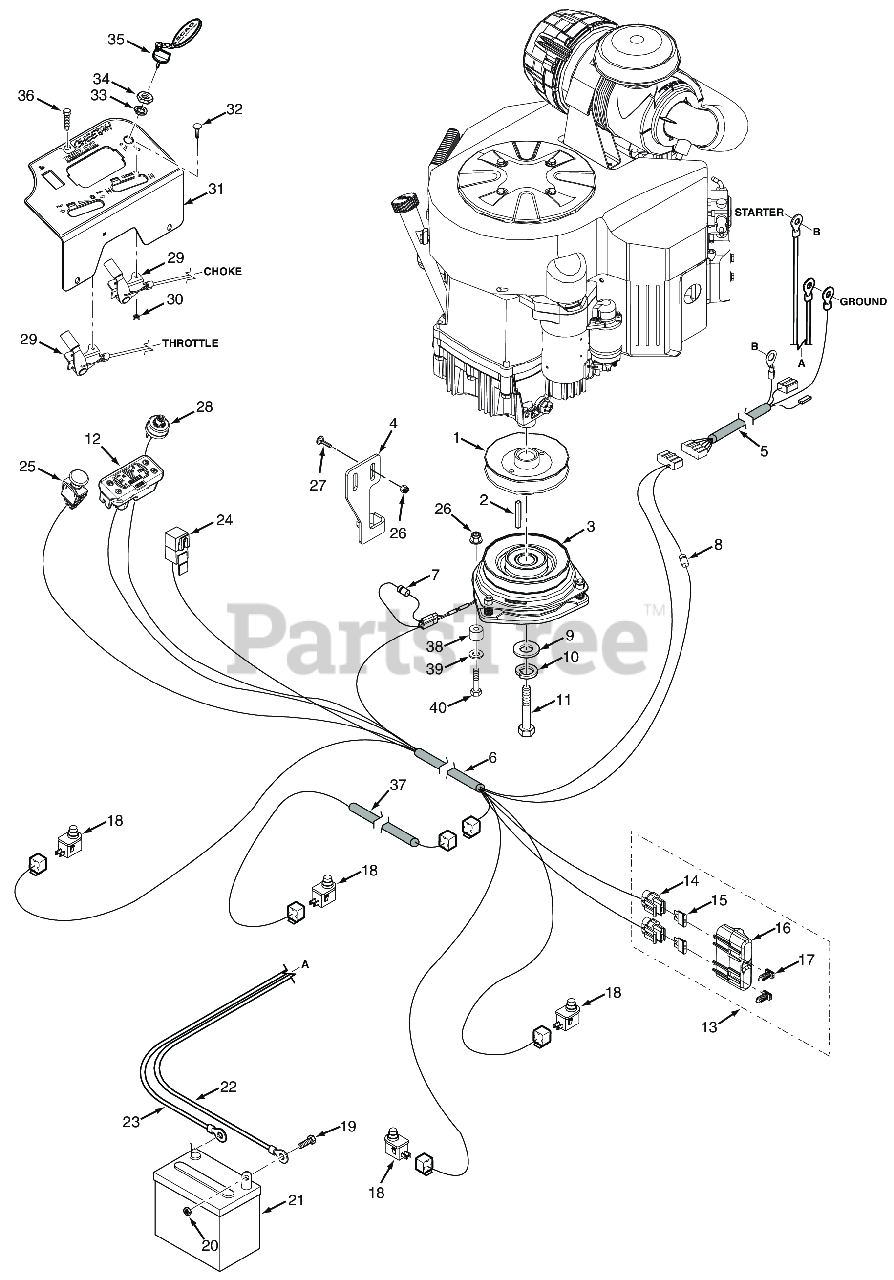

SCZ ELECTRICAL SYSTEM Parts Diagram

  • Title

1

Scag 484098

Pulley, 5.80" Dia. - 1.125 Bore

$87.99

$

In Stock, only 3 left!

0

2

Scag 04063-23

Key, 1/4 x 1/4 x 3-1/4�

$1.99

$

In Stock, only 2 left!

0

3

Scag 461661

Electric Clutch w/Tag - GT-3.5 (FX850)

$429.99

$

In Stock, Qty 11

0

3

Scag 461826

Electric Clutch w/Tag - GT-5 (ECV860, ECV940)

$636.99

$

In Stock, only 2 left!

0

4

Scag 426950

Bracket, Anti-Rotation

$16.99

$

In Stock, only 1 left!

0

5

Scag 485678

Wire Harness Adapter, Kawasaki - 22FX & 23FX

$23.99

$

In Stock, only 1 left!

0

6

Scag 486129

Wire Harness, SCZ

$433.99

$

Usually ships in 2-12 days

0

7

Scag 483958

Diode, 600V 6 Amp

$2.49

$

In Stock, only 4 left!

0

8

Scag 482253

Decal, Forward Speed Selector

$7.99

$

Usually ships in 2-12 days

0

9

Scag 04041-28

Flatwasher, 7/16-.469 x 1.75 x .25 (48, 52)

$2.99

$

In Stock, Qty 20+

0

10

Scag 04030-05

Lockwasher, 7/16� Spring

$0.99

$

In Stock, Qty 20+

0

11

Scag 04102-03

Bolt, Hex Head 7/16-20 x 2-1/4" w/Patch (Kawasaki)

$1.99

$

In Stock, Qty 11

0

12

Scag 484721

Tiger Eye, Cluster Gauge

$374.99

$

In Stock, only 3 left!

0

13

Scag 483642

Double Fuse Assy.

Note: (incl. # 14, 15, 16, 17)

$43.99

$

Usually ships in 2-12 days

0

14

Scag 483629

Fuse Holder Assembly

$7.49

$

In Stock, Qty 7

0

15

Scag 48298

FUSE, 20 AMP BLADE TYPE AUTOMOTIVE

$3.99

$

Usually ships in 2-12 days

0

16

Scag 483571

Cover, Sealed Double

$1.99

$

Usually ships in 2-12 days

0

17

Scag 482588

Clip, Fuse Holder

$1.99

$

Usually ships in 2-12 days

0

18

Scag 481638

Switch, Interlock, Normally Open

$15.99

$

In Stock, Qty 20+

0

19

Scag 04001-44

Bolt, Hex Head 1/4-20 x .5" Battery, (Not Available Through Scag)

$0.99

$

In Stock, Qty 6

0

20

Scag 04020-02

Nut, 1/4 - 20 Hex

$0.99

$

In Stock, Qty 20+

0

21

Battery

Note: Not available through Scag

$

$

Not available

22

Scag 48029-11

Battery Cable, 27" Black (35BV & 37BV-EFI) - Briggs & Stratton

$14.99

$

In Stock, only 1 left!

0

23

Scag 48029-13

Battery Cable, 25" Red (Kawasaki)

$13.99

$

Usually ships in 2-12 days

0

24

Scag 483013

Relay, 12V 40 AMP Standard

$20.99

$

In Stock, Qty 20+

0

25

Scag 485833

Switch, PTO - 10 Amp

$47.99

$

In Stock, Qty 14

0

26

Scag 04117-01

Nut, Flange Head Elastic Stop 5/16-18

$0.99

$

In Stock, Qty 17

0

27

Scag 04003-04

Bolt, Carriage 5/16-18x1" (large frame units only)

$0.99

$

In Stock, Qty 17

0

28

Scag 48798

KEY SWITCH(INCLUDES MOUNTING HARDWARE)

$27.99

$

In Stock, Qty 20+

0

29

Scag 481544

Control Cable (Kawasaki FX921 Throttle & Choke Cable)

$27.99

$

In Stock, Qty 20+

0

29

Scag 481544

Control Cable (Kawasaki FX921 Throttle & Choke Cable)

$27.99

$

In Stock, Qty 20+

0

29

Scag 481363

Control Cable, Throttle (35BV)

$34.99

$

In Stock, Qty 16

0

30

Scag 04021-26

Nut, Elastic Stop #10-24

$0.99

$

In Stock, Qty 10

0

31

Scag 462828

Instrument Panel w/Decal

$67.99

$

In Stock, only 1 left!

0

32

Scag 04003-43

Bolt, Carriage #10-24 x 1/2"

$0.99

$

In Stock, Qty 9

0

33

Scag 48017-03

LOCK WASHER, 5/8" INTERNAL TOOTH

$0.99

$

In Stock, Qty 6

0

34

Scag 48017-04

Nut, 5/8-32 Special

$1.49

$

In Stock, Qty 5

0

35

Scag 462069

Key, Assembly w/Fob

$8.49

$

In Stock, Qty 20+

0

36

Scag 04017-04

CAP SCREW, 1/4-20 X 1/2" SERRATED FLANGE HEX

$0.99

$

In Stock, Qty 20+

0

37

Scag 484722

Wire Harness, Operator Platform -SCZ

$59.99

$

Usually ships in 2-12 days

0

38

Scag 431009

Bushing, UHMW

$6.49

$

In Stock, Qty 20+

0

39

Scag 04040-15

Flatwasher, 5/16-.375 x .875 x .083 (35BV & 37BV-EFI)

$0.99

$

In Stock, Qty 20+

0

40

Scag 04001-11

Bolt, Hex Head 5/16-18 x 1-1/2" (Right Front Engine Mounting, Briggs and Kohler Only)
