SCZ61V-31FX - Scag Cheetah 61" Zero-Turn Mower, 31hp Kawasaki (SN: P0200001 - P0299999) CUTTER DECK CONTROLS Parts Diagram

Cheetah 61" Zero-Turn Mower, 31hp Kawasaki

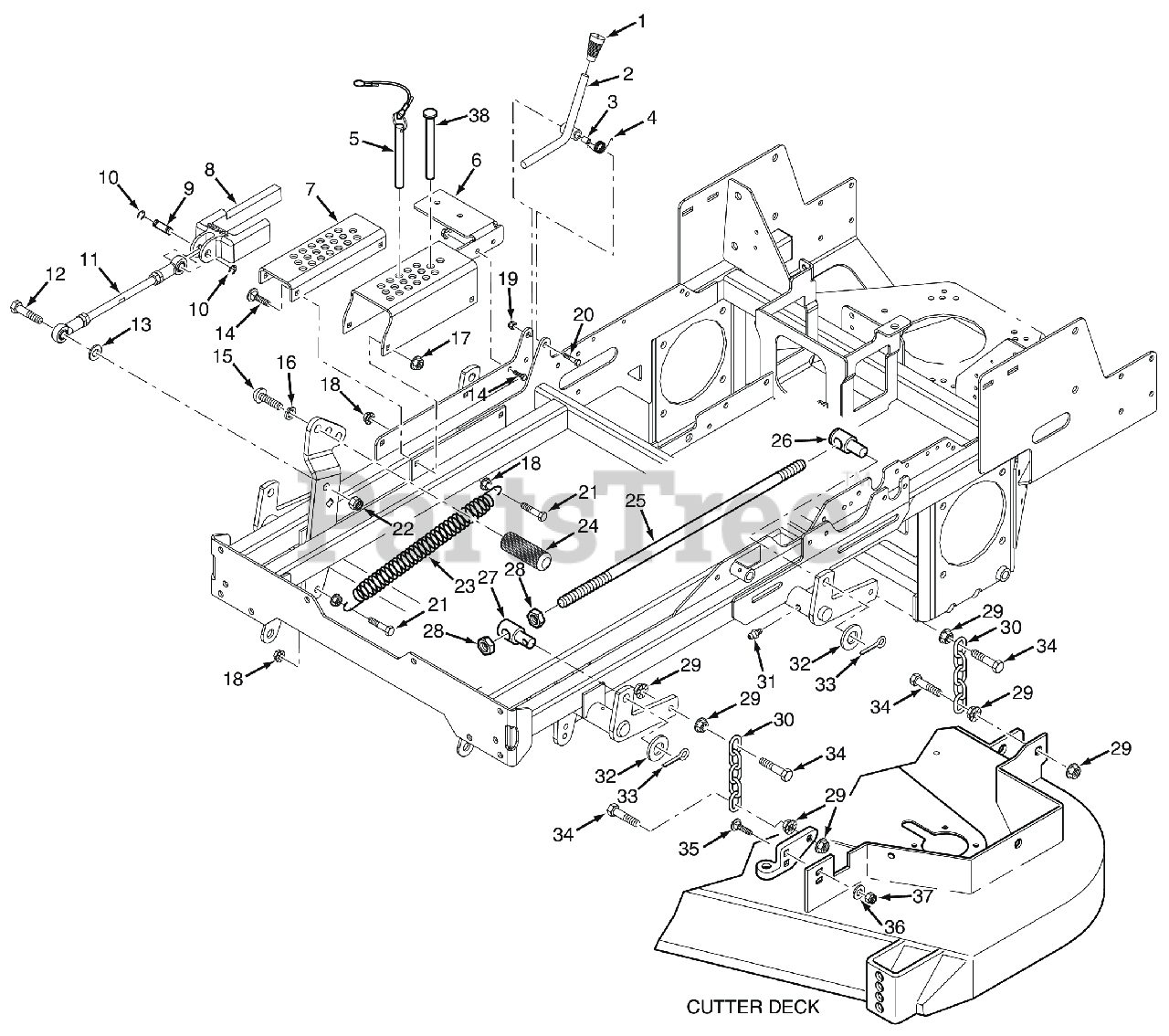

CUTTER DECK CONTROLS Parts Diagram

  • Title

1

Scag 481477

Mounting Bracket, Fuel Tank

$4.49

$

In Stock, only 2 left!

0

2

Scag 462253

Deck Latch Assembly w/Grip

$38.99

$

Usually ships in 2-12 days

0

3

Scag 43668

Bushing, .502 O.D.

$2.99

$

Usually ships in 2-12 days

0

4

Scag 484191

Spring, Torsion - Lever Return

$7.49

$

Usually ships in 2-12 days

0

5

Scag 483345

Lanyard, Deck Height Pin Assembly

$11.99

$

In Stock, Qty 7

0

6

Scag 425574

Adjustment Bracket, Upper Cut Height

$101.99

$

Usually ships in 2-12 days

0

7

Scag 452408

Adjustment Bracket, Lower Cut Height

$65.99

$

Usually ships in 2-12 days

0

8

Scag 485570

Slide, Height Adjustment

$41.99

$

Usually ships in 2-12 days

0

9

Scag 43487

Pin, Deck Lift

$26.99

$

In Stock, only 1 left!

0

10

Scag 04050-10

Retaining Ring, 1/2" External "E"

$0.99

$

In Stock, only 4 left!

0

11

Scag 484141

Linkage, Deck Lift

$101.99

$

Usually ships in 2-12 days

0

11

Scag 481765

Rod End, 1/2-20 Female RH Thread

$41.99

$

In Stock, only 1 left!

0

11

Scag 481766

Rod End, 1/2-20 Female LH Thread

$48.99

$

In Stock, only 1 left!

0

11

Scag 04020-27

Nut, 1/2-20 UNF-2B RH Thread

$4.49

$

In Stock, Qty 5

0

11

Scag 04020-28

Bolt, Hex Hd. 5/16-18 x 3-3/4"

$3.49

$

In Stock, Qty 8

0

12

Scag 04001-72

Hex Head Bolt, 1/2-13 x 2"

$1.99

$

Usually ships in 2-12 days

0

13

Scag 04040-07

Flatwasher, 1/2 - .531 x 1.062 x .095

$0.99

$

In Stock, Qty 5

0

14

Scag 04001-09

Bolt, Heax Head 5/16-18 x 1" (48V / 52V)

$0.99

$

In Stock, Qty 20+

0

14

Scag *04030-03

Lockwasher, 5/16 (.317 x .586 x .078) Helical Spring

$

$

Currently unavailable

15

Scag 04105-01

Bolt, Head Socket 5/8-11 x 1-1/2"
(Superseded to 04108-04)

$2.99

$

Usually ships in 2-12 days

0

16

Scag 04030-07

L o c kwasher, 1/2 Spring

$0.99

$

In Stock, Qty 20+

0

17

Scag 04019 -03

Nut, Serrated Flange 5/16-18 (Right Front Engine Mounting, Briggs and Kohler Only)

$

$

Currently unavailable

18

Scag 04019-04

NUT, 3/8-16 SERRATED FLANGE HEX HEAD

$0.99

$

In Stock, Qty 20+

0

19

Scag 04021-09

HEX NUT, ELASTIC STOP LOCK, 3/8-16

$0.99

$

In Stock, Qty 20+

0

20

Scag 04001-22

Capscrew, Hex Head 3/8-16 x 2.75"

$1.49

$

In Stock, Qty 20+

0

21

Scag 04001-136

Bolt, Hex Head 3/8-16 x 1-1/2" Grade 8 Black

$0.99

$

In Stock, Qty 20+

0

22

Scag 04021-07

HEX LOCKNUT, ELASTIC STOP, 1/2-13

$0.99

$

In Stock, Qty 20+

0

23

Scag 481598

Spring, Helper (61" & 72" Cutter Decks Only)

$65.99

$

Usually ships in 2-12 days

0

24

Scag 424504

Foot Pedal, Height Adjustment

$14.99

$

In Stock, only 1 left!

0

25

Scag 04004-44

Stud, 5/8-11 x 22.0"

$26.99

$

Usually ships in 2-12 days

0

26

Scag 43526

Swivel Joint, LH

$18.99

$

In Stock, Qty 11

0

27

Scag 43527

Swivel Joint, RH

$16.99

$

In Stock, Qty 9

0

28

Scag 04020-09

Hex Locknut, Elastic Stop, 3/8-16

$0.99

$

In Stock, Qty 20+

0

29

Scag 04019-04

NUT, 3/8-16 SERRATED FLANGE HEX HEAD

$0.99

$

In Stock, Qty 20+

0

30

Scag 482628

Chain, Deck Lift

$11.99

$

In Stock, Qty 15

0

31

Scag 48114-04

GREASE FITTING, STR. 1/4-28 SELF TAP.

$0.99

$

In Stock, Qty 20+

0

32

Scag 04040-09

Flatwasher, 5/8" (.656 x 1.312 x .095")

$0.99

$

In Stock, Qty 12

0

33

Scag 04061-07

Pin, Cotter 3/16 x 1.0"

$1.49

$

In Stock, Qty 9

0

34

Scag 04001-20

Bolt, Hex Head, 3/8-16 x 1-1/2"

$0.99

$

In Stock, Qty 20+

0

35

Scag 04003-40

Bolt, Carriage 7/16-14 x 1-1/4"

$1.49

$

In Stock, Qty 6

0

36

Scag 04040-11

Flatwasher, 7/16" (.500 x 1.25 x .083")

$0.99

$

In Stock, Qty 13

0

37

Scag 04021-11

HEX LOCKNUT, ELASTIC STOP, 7/16-14

$0.99

$

In Stock, Qty 10

0

38

Scag 04059-01

Pin, Locking

$6.49

$

Usually ships in 2-12 days

0
