SCZ61V-31CV-EFI - Scag Cheetah 61" Zero-Turn Mower, 31hp Kohler (SN: P0100001 - P0199999) SCZ ROLL-OVER PROTECTION SYSTEM Parts Diagram

Cheetah 61" Zero-Turn Mower, 31hp Kohler

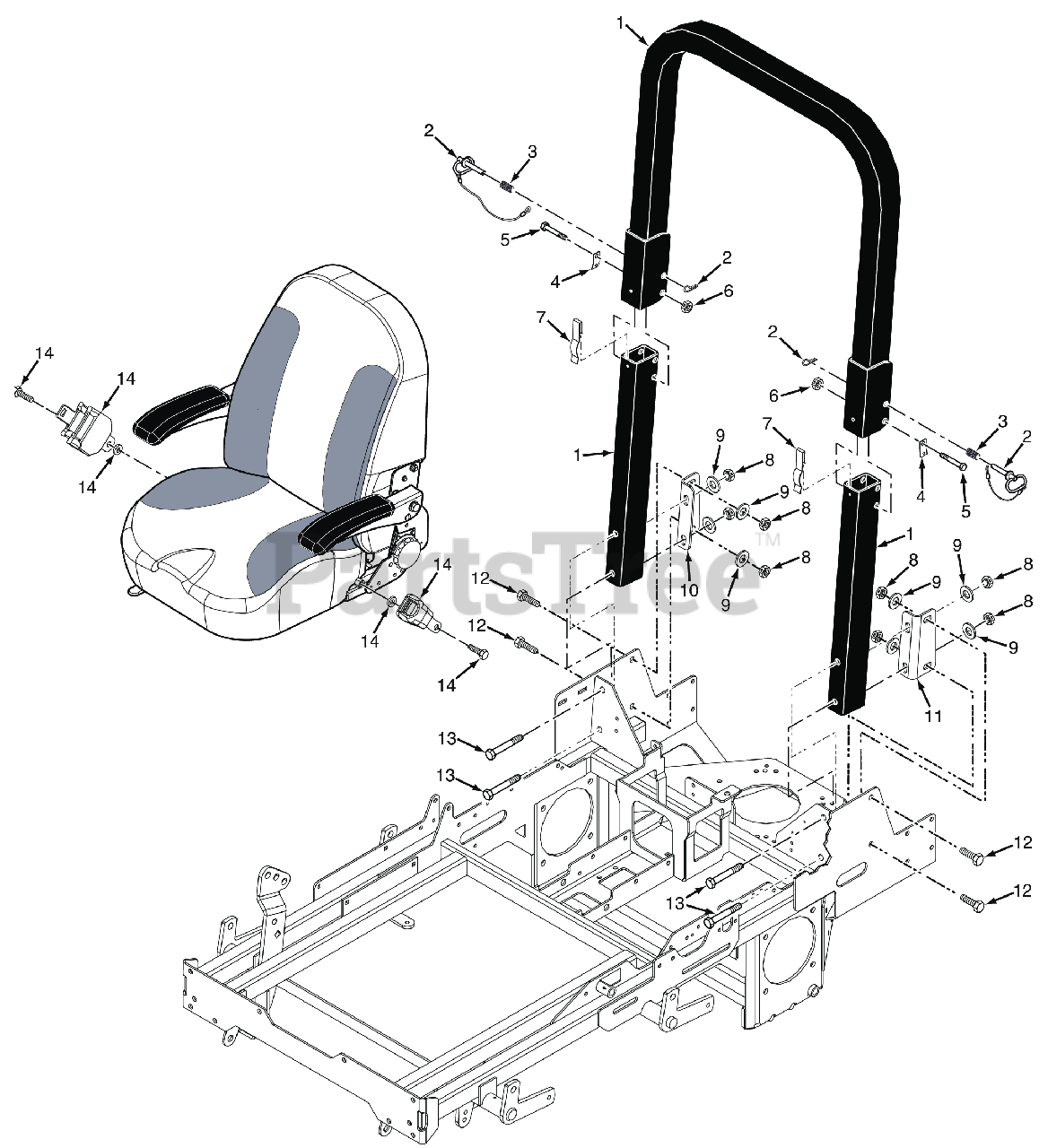

SCZ ROLL-OVER PROTECTION SYSTEM Parts Diagram

  • Title

1

Scag 462246

ROPS, Foldable SCZ

$

$

Not available

2

Scag 484168

Pin Assembly, ROPS Hinge

$27.99

$

In Stock, Qty 9

0

3

Scag 484170

Spring, ROPS

$1.49

$

Usually ships in 2-12 days

0

4

Scag 484169

Clip, ROPS

$3.49

$

Usually ships in 2-12 days

0

5

Scag 04001-90

Bolt, Hex Head, 1/2-13 x 3-1/4"

$2.99

$

Usually ships in 2-12 days

0

6

Scag 04021-07

HEX LOCKNUT, ELASTIC STOP, 1/2-13

$0.99

$

In Stock, Qty 20+

0

7

Scag 484167

Spring, ROPS Anti-Rattle

$4.49

$

Usually ships in 2-12 days

0

8

Scag 04021-19

Locknut, Hex 1/2-13 Center Lock

$0.99

$

In Stock, Qty 5

0

9

Scag 04040-13

Flat Washer, 1/2 (.562 x 1.375 x .109)

$0.99

$

In Stock, Qty 20+

0

10

Scag 425341

ROPS Mount, RH Rear

$21.99

$

Usually ships in 2-12 days

0

11

Scag 425340

ROPS Mount, LH Rear

$21.99

$

Usually ships in 2-12 days

0

12

Scag 04001-70

Bolt, Hex Head 1/2-13 x 1-1/4"

$1.49

$

In Stock, Qty 5

0

13

Scag 04001-194

Bolt, Hex Head 1/2-13 x 4-1/4"

$4.99

$

In Stock, Qty 8

0

14

Scag 484262

Seat Belt Kit, Retractable - SCZ

$186.99

$

Usually ships in 2-12 days

0
