SCZ61RD-31FX - Scag Cheetah 61" Zero-Turn Mower, 31hp Kawasaki (SN: K0800001 - K0899999) 61RD Cutter Deck Parts Diagram

Cheetah 61" Zero-Turn Mower, 31hp Kawasaki

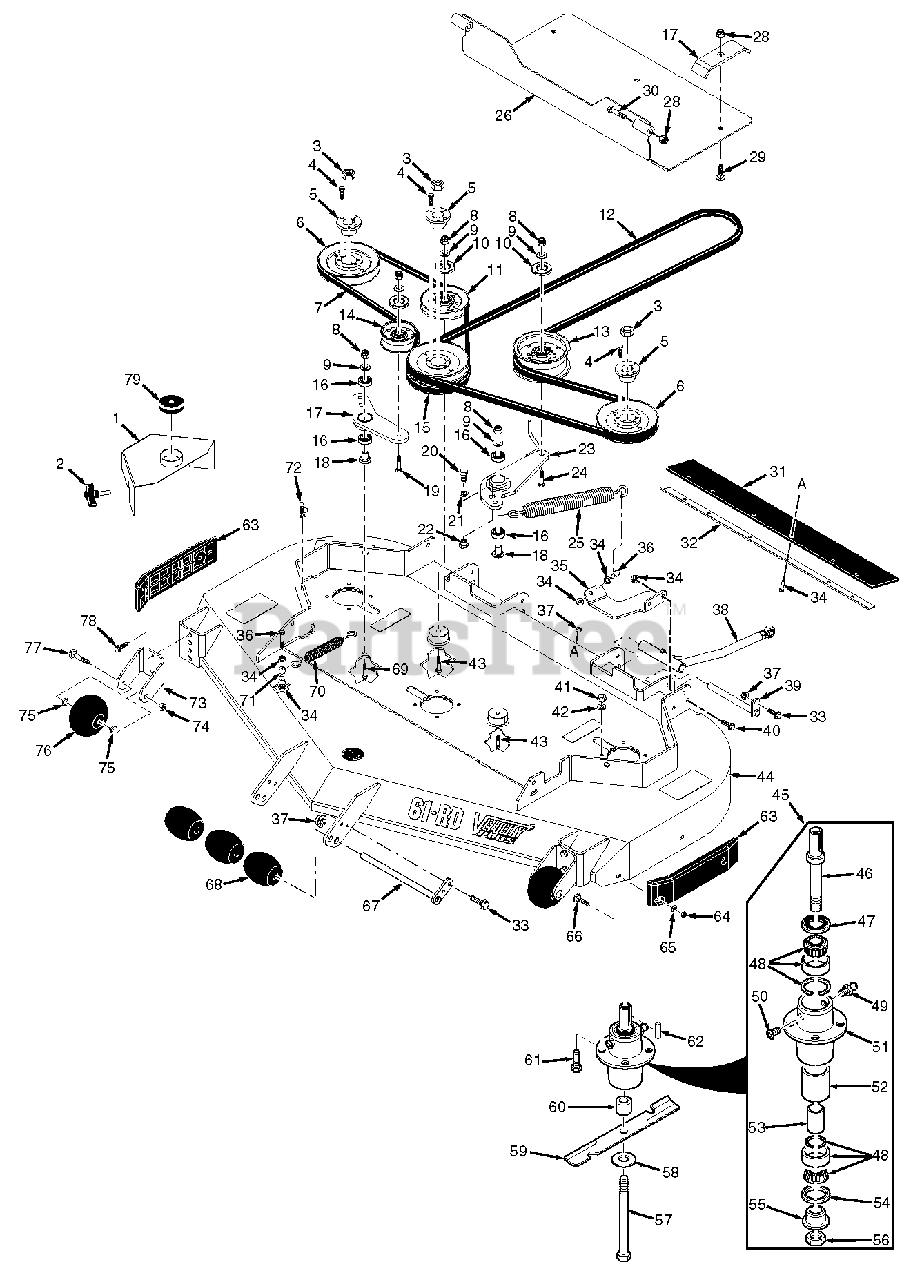

61RD Cutter Deck Parts Diagram

  • Title

1

Scag 425431

Belt Cover, 61V

$

$

Not available

2

Scag 481625-01

Knob w/Stud

$2.99

$

In Stock, Qty 20+

0

3

Scag 04020-09

Nut, 5/8-11 UNC

$0.99

$

In Stock, Qty 20+

0

4

Scag 04001-172

Bolt, Hex Head 1/4-20 x 1"

$0.99

$

In Stock, Qty 20+

0

5

Scag 48926

Tapered Hub, 1.125" Bore

$31.99

$

In Stock, Qty 20+

0

6

Scag 483286

Pulley, 6.32" Dia.

$38.99

$

In Stock, Qty 13

0

7

Scag 483157

Belt

$59.99

$

In Stock, Qty 20+

0

8

Scag 04021-09

Nut, Elastic Stop 3/8-16

$0.99

$

In Stock, Qty 20+

0

9

Scag 04043-04

Flatwasher, 3/8-.391 x .938 x .105

$0.99

$

In Stock, Qty 20+

0

10

Scag 424367

Dust Shield

$2.49

$

Usually ships in 2-12 days

0

11

Scag 48181

Pulley, Idler

$26.99

$

In Stock, Qty 14

0

12

Scag 483741

Belt, Deck Drive

$83.99

$

In Stock, Qty 20+

0

13

Scag 483210

Pulley, 5" Idler

$56.99

$

In Stock, Qty 6

0

14

Scag 483415

Pulley, 3-1/2" Idler
(Superseded to 486045)

$21.99

$

In Stock, Qty 20+

0

15

Scag 483287

Pulley, 6.32" Dia. Double Groove

$65.99

$

Usually ships in 2-12 days

0

16

Scag 48224

Bearing

$13.99

$

In Stock, Qty 20+

0

17

Scag 461946

Idler Arm Assy.

Note: (incl. #16)

$86.99

$

In Stock, only 1 left!

0

18

Scag 43689

Pivot, Idler

$10.99

$

In Stock, Qty 20+

0

19

Scag 04001-31

Bolt, Hex Head 3/8-16 x 2-1/2"

$0.99

$

In Stock, Qty 20+

0

20

Scag 04001-17

Bolt, Hex Head 7/16-14 x 1"

$0.99

$

In Stock, Qty 6

0

21

Scag 04030-05

Lockwasher, 7/16" Spring

$0.99

$

In Stock, Qty 8

0

22

Scag 43686

Boss, Spring Anchor

$8.49

$

Usually ships in 2-12 days

0

23

Scag 461940

Idler Arm Assy.
(Superseded to 462269)

Note: (incl. #16)

$86.99

$

In Stock, only 3 left!

0

24

Scag 04001-54

Bolt, Hex Head 3/8-16 x 3"

$1.49

$

In Stock, Qty 10

0

25

Scag 483246

Spring, LH Cutter Deck

$63.99

$

Usually ships in 2-12 days

0

26

Scag 452341

Weldment, Debris Shield

$92.99

$

Usually ships in 2-12 days

0

27

Scag 425897

Mounting Bracket, Shield

$34.99

$

Usually ships in 2-12 days

0

28

Scag 04021-10

Nut, Elastic Stop 5/16-18

$0.99

$

In Stock, Qty 20+

0

29

Scag 04003-38

Bolt, Carriage 5/16-18 x 1-1/2'

$0.99

$

In Stock, only 2 left!

0

30

Scag 04001-13

Bolt, Hex Head 5/16-18 x 2-3/4"

$0.99

$

In Stock, only 1 left!

0

31

Scag 484557

Pad, Rubber

$56.99

$

Usually ships in 2-12 days

0

32

Scag 425899

Retaining Plate, Pad

$44.99

$

Usually ships in 2-12 days

0

33

Scag 04001-09

Bolt, Hex Head 5/16-18 x 1"

$0.99

$

In Stock, Qty 20+

0

34

Scag 04019-04

Nut, Serrated Flange 3/8-16

$0.99

$

In Stock, Qty 20+

0

35

Scag 425335

Spring Mount, SMCZ

$13.99

$

Usually ships in 2-12 days

0

36

Scag 04001-136

Bolt, Hex Head 3/8-16 x 1-1/2"

Note: Grade 8

$0.99

$

In Stock, Qty 20+

0

37

Scag 04021-10

Nut, Elastic Stop 5/16-18

$0.99

$

In Stock, Qty 20+

0

38

Scag 462225

Pusharm Assembly, LH

$172.99

$

In Stock, only 1 left!

0

38

Scag 462226

Pusharm Assembly, RH

$172.99

$

In Stock, only 1 left!

0

39

Scag 451240

Rod Weldment, Pusharm

$53.99

$

In Stock, Qty 20+

0

40

Scag 04001-19

Bolt, Hex Head 3/8-16 x 1"

$0.99

$

In Stock, Qty 7

0

41

Scag 04021-22

Nut, Elastic Stop 5/16-18

Note: Grade 8

$0.99

$

In Stock, Qty 20+

0

42

Scag 04030-03

Lockwasher, 5/16"

$0.99

$

In Stock, Qty 20+

0

43

Scag 04001-54

Bolt, Hex Head 3/8-16 x 3"

$1.49

$

In Stock, Qty 10

0

44

Scag 462505

Cutter Deck Assembly w/Decals SCZ-61RD

$2520.99

$

Usually ships in 2-12 days

0

45

Scag 461663

Spindle Assembly

$263.99

$

In Stock, Qty 20+

0

46

Scag 43589

Shaft, Spindle

$59.99

$

In Stock, only 1 left!

0

47

Scag 481024

Seal, Top

$4.99

$

In Stock, Qty 20+

0

48

Scag 481022

Bearing Assembly

$61.99

$

In Stock, Qty 15

0

49

Scag 48114-04

Grease Fitting

$1.49

$

In Stock, Qty 20+

0

50

Scag 48677

Relief Fitting, Spindle

$9.49

$

Usually ships in 2-12 days

0

51

Scag 43644

Spindle Housing

$60.99

$

In Stock, only 2 left!

0

52

Scag 43312

Spacer, Outside

$19.99

$

In Stock, only 1 left!

0

53

Scag 43296

Spacer, Inside

$8.49

$

In Stock, only 2 left!

0

54

Scag 481025

Seal, Bottom

$4.99

$

In Stock, Qty 20+

0

55

Scag 43297

Spindle Bushing

$9.99

$

In Stock, only 2 left!

0

56

Scag 481035

Nut, Special 1-1/16 - 18

$7.99

$

In Stock, only 3 left!

0

57

Scag 04001-41

Bolt, Hex Head 5/8-11 x 9-1/2"

$15.99

$

In Stock, Qty 20+

0

58

Scag 04043-06

Flatwasher, 5/8-.688 x 1.75 x .134 HD

$1.99

$

In Stock, Qty 20+

0

59

Scag 482881

Cutter Blade, 21"

$32.99

$

In Stock, Qty 20+

0

60

Scag 43590

Spacer, Spindle Bottom

$17.99

$

In Stock, Qty 20+

0

61

Scag 04001-176

Bolt, Hex Head 5/16-18 x 1-3/4"

Note: Grade 8

$0.99

$

In Stock, Qty 20+

0

62

Scag 04063-08

Key, 1/4 x 1/4 x 2"

$1.49

$

In Stock, Qty 20+

0

63

Scag 483176

Wear Pad

$34.99

$

In Stock, Qty 20+

0

64

Scag 04021-14

Nut, Center Lock 5/16-18

$1.99

$

Usually ships in 2-12 days

0

65

Scag 04040-04

Flatwasher, 5/16-.344 x .688 x .065

$0.99

$

In Stock, Qty 20+

0

66

Scag 04003-12

Bolt, Carriage 5/16-18 x 3/4"

$0.99

$

In Stock, Qty 20+

0

67

Scag 45944

Shaft Weldment

$22.99

$

In Stock, Qty 20+

0

68

Scag 482295

Wheel, Anti-Scalp

$9.99

$

In Stock, Qty 20+

0

69

Scag 04001-46

Bolt, Hex Head 3/8-16 x 2-1/4"

$0.99

$

In Stock, Qty 20+

0

70

Scag 483703

Deck Spring

$33.99

$

In Stock, Qty 20+

0

71

Scag 43063

Spacer

$9.99

$

In Stock, only 2 left!

0

72

Scag 04110-03

U-Nut, 3/8-16

$2.49

$

In Stock, Qty 20+

0

73

Scag 422478

Bracket, Anti-Scalp Wheel

$28.99

$

In Stock, Qty 20+

0

74

Scag 04021-05

Nut, Center Lock 3/8-16

$0.99

$

In Stock, Qty 20+

0

75

Scag 48100-15

Bushing, .376 I.D. Oilite

$4.99

$

In Stock, Qty 20+

0

76

Scag 481632

Wheel, Anti-Scalp

$27.99

$

In Stock, Qty 20+

0

77

Scag 04003-26

Bolt, Carriage 3/8-16 x 4"

$1.99

$

In Stock, Qty 20+

0

78

Scag 04017-27

Bolt, Hex Head Serrated Flange 3/8-16 x 1"

$1.49

$

In Stock, Qty 20+

0

79

Scag 484368

Cap, Spindle

$5.49

$

In Stock, Qty 20+

0
