SCZ52V-25CV-EFI - Scag Cheetah 52" Zero-Turn Mower, 25hp Kohler (SN: K0100001 - K0199999) SCZ EFI Electrical System Parts Diagram

Cheetah 52" Zero-Turn Mower, 25hp Kohler

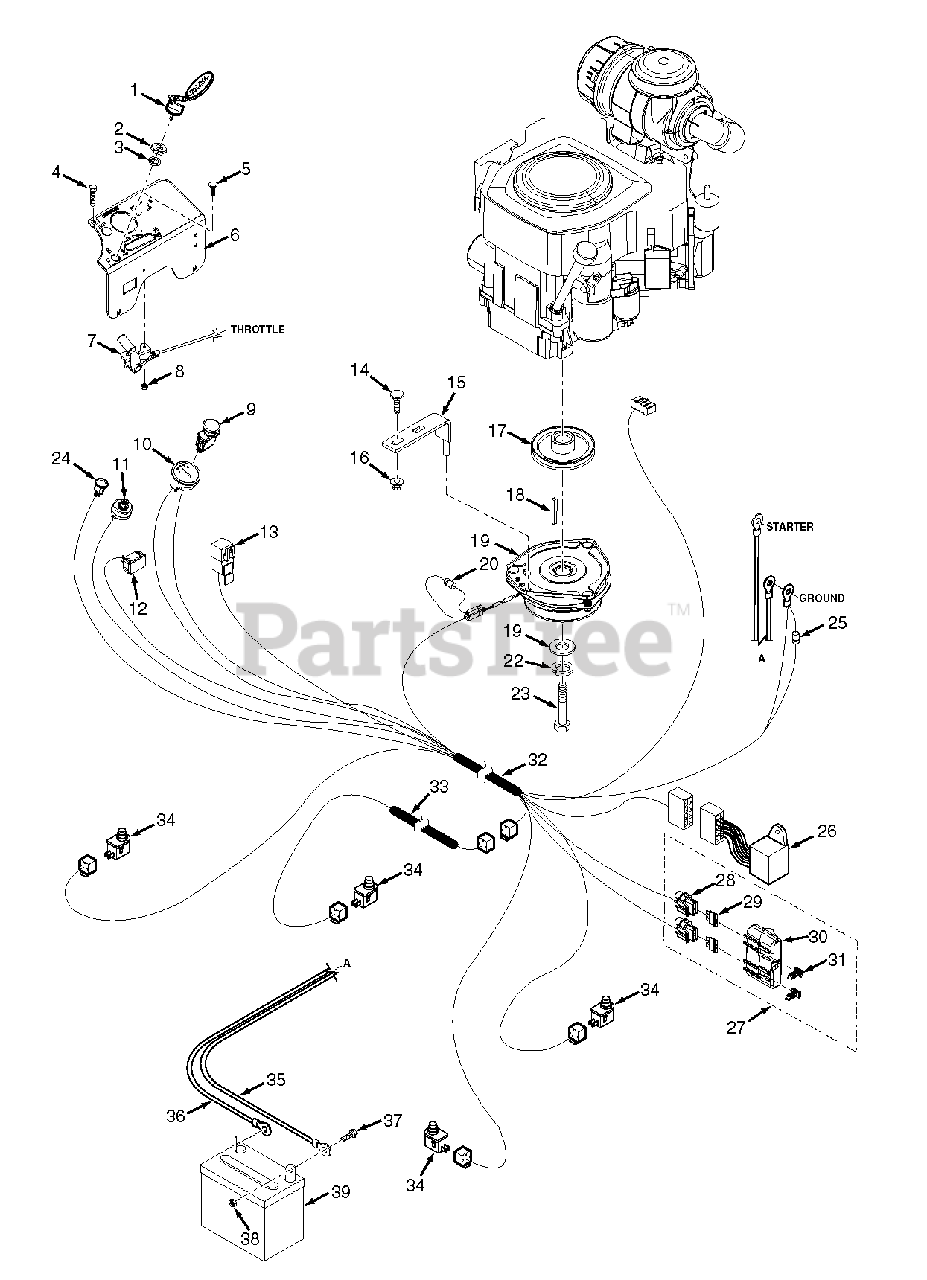

SCZ EFI Electrical System Parts Diagram

  • Title

1

Scag 483366

Key, Ignition
(Superseded to 462069)

$9.99

$

In Stock, Qty 20+

0

1

Scag 462069

Key Assembly w/Fob

$9.99

$

In Stock, Qty 20+

0

2

Scag 48017-04

Nut, Hex 5/8-32

$1.99

$

In Stock, Qty 5

0

3

Scag 48017-03

Lockwasher, 5/8" Internal

$0.99

$

In Stock, Qty 6

0

4

Scag 04017-04

Bolt, Hex Head Serrated Flange 1/4-20 x 1/2"

$0.99

$

In Stock, Qty 20+

0

5

Scag 04003-43

Bolt, Carriage #10-24 x 1/2"

$0.99

$

In Stock, Qty 10

0

6

Scag 462XXX

Instrument Panel w/Decal

$

$

Currently unavailable

7

Scag 481544

Control Cable

$28.99

$

In Stock, Qty 20+

0

8

Scag 04021-26

Locknut, #10-24

$0.99

$

In Stock, Qty 14

0

9

Scag 483957

Switch, PTO
(Superseded to 463034)

$46.99

$

In Stock, Qty 20+

0

10

Scag 481184

Voltmeter

$96.99

$

Usually ships in 2-12 days

0

11

Scag 48798

Switch, Starter

$27.99

$

In Stock, Qty 20+

0

12

Scag 484565

Hourmeter

$63.99

$

In Stock, only 1 left!

0

13

Scag 483013

Relay

$21.99

$

In Stock, Qty 20+

0

14

Scag 04003-12

Bolt, Carriage 5/16-18 x 3/4"

$0.99

$

In Stock, Qty 20+

0

15

Scag 452291

Anti-Rotation Weldment

$19.99

$

Usually ships in 2-12 days

0

16

Scag 04117-01

Nut, Flange Elastic Stop 5/16-18

$0.99

$

In Stock, Qty 18

0

17

Scag 484373

Pulley, 5" Dia. - 1.125 Bore

$60.99

$

Usually ships in 2-12 days

0

18

Scag 04063-28

Key, 1/4 x 1/4 x 3-1/2"

$1.49

$

In Stock, Qty 5

0

19

Scag 462339

Clutch, GT3.5 - 1.125 Bore

$496.99

$

Usually ships in 2-12 days

0

20

Scag 483958

Diode, 600V - 6A

$2.49

$

In Stock, only 4 left!

0

21

Scag 04041-28

Flatwasher, 7/16-.469 x 1.75 x .25

$2.99

$

In Stock, Qty 13

0

22

Scag 04030-05

Lockwasher, 7/16" Spring

$0.99

$

In Stock, Qty 8

0

23

Scag 04102-03

Bolt, Hex Head 7/16-20 x 2-1/4" w/Patch

$2.49

$

In Stock, Qty 13

0

24

Scag 481182

Indicator Light

$48.99

$

Usually ships in 2-12 days

0

25

Scag 482253

Diode

$8.49

$

Usually ships in 2-12 days

0

26

Scag 483599

Electronic Module

$137.99

$

In Stock, Qty 20+

0

27

Scag 483642

Double Fuse Assy.

Note: (incl. #28, 29, 30, 31)

$54.99

$

Usually ships in 2-12 days

0

28

Scag 483629

Fuse Holder

$7.49

$

In Stock, Qty 8

0

29

Scag 48298

Fuse, 20 Amp

$

$

Not available

30

Scag 483571

Cover, Sealed Double

$1.99

$

Usually ships in 2-12 days

0

31

Scag 482588

Clip, Wire

$1.99

$

Usually ships in 2-12 days

0

32

Scag 484726

Wire Harness, SCZ-EFI

$836.99

$

Usually ships in 2-12 days

0

33

Scag 484722

Wire Harness, Operator Platform

$61.99

$

Usually ships in 2-12 days

0

34

Scag 481638

Switch

$15.99

$

In Stock, Qty 20+

0

35

Scag 48029-13

Battery Cable, 25" Red (Kawasaki)

$14.99

$

In Stock, only 1 left!

0

36

Scag 48029-11

Battery Cable, 27" Black

$14.99

$

In Stock, only 1 left!

0

37

Scag 04001-44

Bolt, Hex Head 1/4-20 x 1/2"

$0.99

$

In Stock, Qty 6

0

38

Scag 04020-02

Nut, 1/4-20 UNC

$0.99

$

In Stock, Qty 10

0

39

Battery, 350 CCA

Note: Not available through Scag

$

$

Not available
