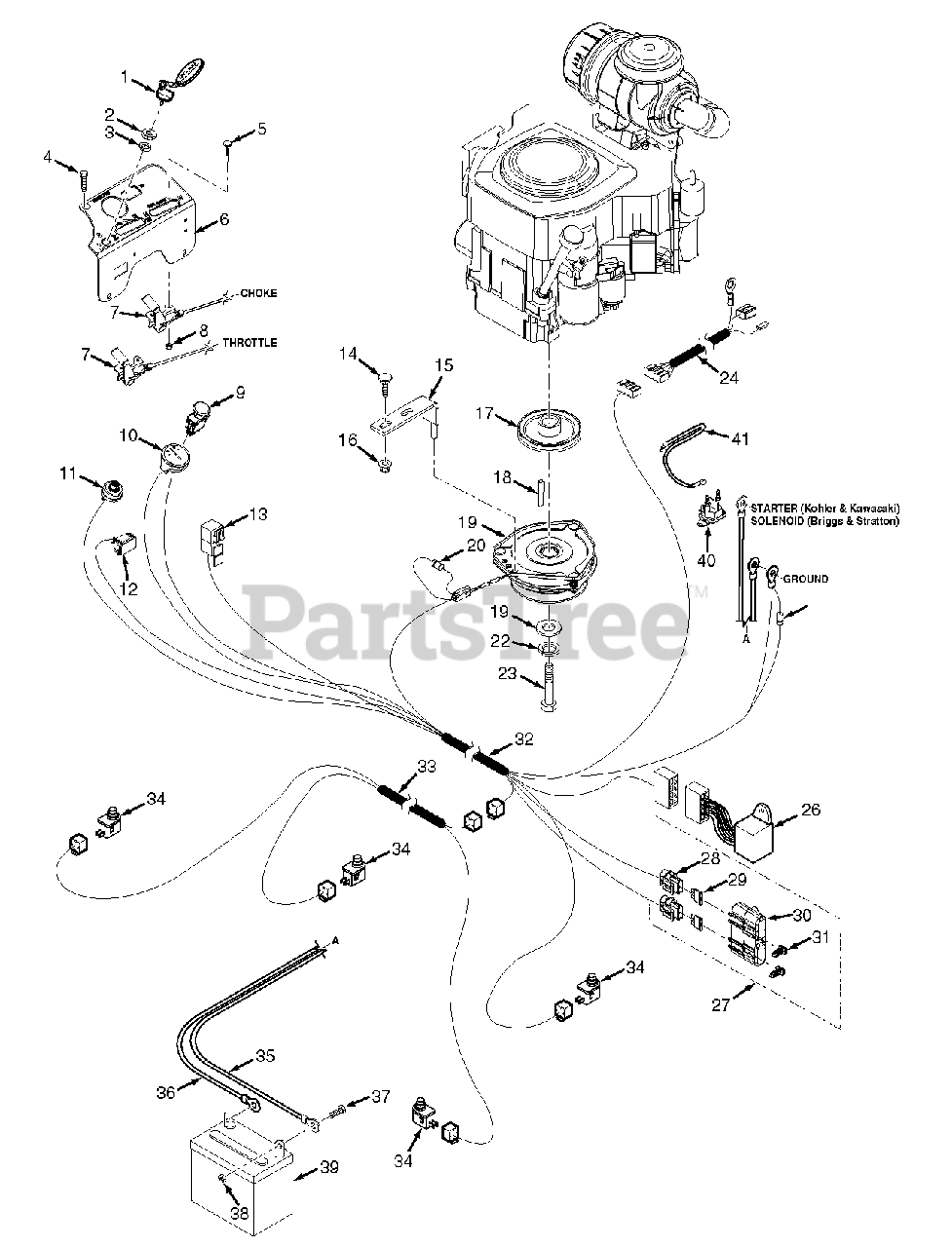

SCZ48V-691FX - Scag Cheetah 48" Zero-Turn Mower, Kawasaki 691FX (SN: H6700001 - H6799999) SCZ Electrical System Parts Diagram

Cheetah 48" Zero-Turn Mower, Kawasaki 691FX

SCZ Electrical System Parts Diagram

  • Title

1

Scag 483366

Key, Ignition
(Superseded to 462069)

$8.49

$

In Stock, Qty 20+

0

1

Scag 462069

Key Assembly w/Fob

$8.49

$

In Stock, Qty 20+

0

2

Scag 48017-04

Nut, Hex 5/8-32

$1.49

$

In Stock, Qty 5

0

3

Scag 48017-03

Lockwasher, 5/8" Internal

$0.99

$

In Stock, Qty 6

0

4

Scag 04017-04

Bolt, Hex Head Serrated Flange 1/4-20 x 1/2"

$0.99

$

In Stock, Qty 20+

0

5

Scag 04003-43

Bolt, Carriage #10-24 x 1/2"

$0.99

$

In Stock, Qty 6

0

6

Scag 462496

Instrument Panel w/Decal
(Superseded to 462559)

$70.99

$

Usually ships in 2-12 days

0

7

Scag 481544

Control Cable

$27.99

$

In Stock, Qty 20+

0

8

Scag 04021-26

Locknut, #10-24

$0.99

$

In Stock, Qty 11

0

9

Scag 483957

Switch, PTO
(Superseded to 463034)

$37.99

$

In Stock, Qty 20+

0

10

Scag 481755

Ammeter
(Superseded to 487596)

$64.99

$

Usually ships in 2-12 days

0

11

Scag 48798

Switch, Starter

$27.99

$

In Stock, Qty 20+

0

12

Scag 484565

Hourmeter

$51.99

$

In Stock, only 1 left!

0

13

Scag 483013

Relay

$20.99

$

In Stock, Qty 20+

0

14

Scag 04003-12

Bolt, Carriage 5/16-18 x 3/4"

$0.99

$

In Stock, Qty 20+

0

15

Scag 452291

Anti-Rotation Weldment
(Superseded to 427330)

$22.99

$

Usually ships in 2-12 days

0

16

Scag 04117-01

Nut, Flange Elastic Stop 5/16-18

$0.99

$

In Stock, Qty 18

0

17

Scag 484373

Pulley, 5" Dia. - 1.125 Bore

$58.99

$

Usually ships in 2-12 days

0

18

Scag 04063-28

Key, 1/4 x 1/4 x 3-1/2"

$1.49

$

In Stock, Qty 5

0

19

Scag 484276

Clutch, GT3.5 - 1.125 Bore
(Superseded to 462339)

$457.99

$

In Stock, only 1 left!

0

20

Scag 483958

Diode, 600V - 6A

$2.49

$

In Stock, only 4 left!

0

21

Scag 04041-28

Flatwasher, 7/16-.469 x 1.75 x .25

$2.99

$

In Stock, Qty 12

0

22

Scag 04030-05

Lockwasher, 7/16" Spring

$0.99

$

In Stock, Qty 5

0

23

Scag 04102-03

Bolt, Hex Head 7/16-20 x 2-1/4" w/Patch

$1.99

$

In Stock, Qty 12

0

24

Scag 482543

Wire Harness Adapter, Kawasaki

$30.99

$

In Stock, only 1 left!

0

24

Scag 484078

Wire Harness Adapter, Kohler

$25.99

$

In Stock, only 3 left!

0

24

Scag 482836

Wire Harness Adapter, Briggs & Stratton

$35.99

$

In Stock, only 1 left!

0

25

Scag 482253

Diode

$7.99

$

Usually ships in 2-12 days

0

26

Scag 483599

Electronic Module

$133.99

$

In Stock, Qty 20+

0

27

Scag 483642

Double Fuse Assy.

Note: (incl. #28, 29, 30, 31)

$43.99

$

Usually ships in 2-12 days

0

28

Scag 483629

Fuse Holder

$7.49

$

In Stock, Qty 7

0

29

Scag 48298

Fuse, 20 Amp

$3.99

$

Usually ships in 2-12 days

0

30

Scag 483571

Cover, Sealed Double

$1.99

$

Usually ships in 2-12 days

0

31

Scag 482588

Clip, Wire

$1.99

$

Usually ships in 2-12 days

0

32

Scag 484563

Wire Harness, SCZ48/52

$794.99

$

Usually ships in 2-12 days

0

33

Scag 484562

Wire Harness, Operator Platform

$118.99

$

Usually ships in 2-12 days

0

34

Scag 481638

Switch

$15.99

$

In Stock, Qty 20+

0

35

Scag 48029-13

Battery Cable, 25" Red (Kawasaki)

$13.99

$

In Stock, only 1 left!

0

36

Scag 48029-11

Battery Cable, 27" Black

$14.99

$

In Stock, only 1 left!

0

37

Scag 04001-44

Bolt, Hex Head 1/4-20 x 1/2"

$0.99

$

In Stock, Qty 6

0

38

Scag 04020-02

Nut, 1/4-20 UNC

$0.99

$

In Stock, Qty 10

0

39

Battery, 350 CCA

Note: Not available through Scag

$

$

Not available

40

Scag 483278

Solenoid, Sealed (Briggs & Stratton)

$51.99

$

In Stock, only 1 left!

0

41

Scag 48029-09

Battery Cable, Red 9" (Briggs & Stratton)

$10.99

$

Usually ships in 2-12 days

0
