SCZ48V-691FX - Scag Cheetah 48" Zero-Turn Mower, Kawasaki 691FX (SN: H6700001 - H6799999) Cutter Deck Controls Parts Diagram

Cheetah 48" Zero-Turn Mower, Kawasaki 691FX

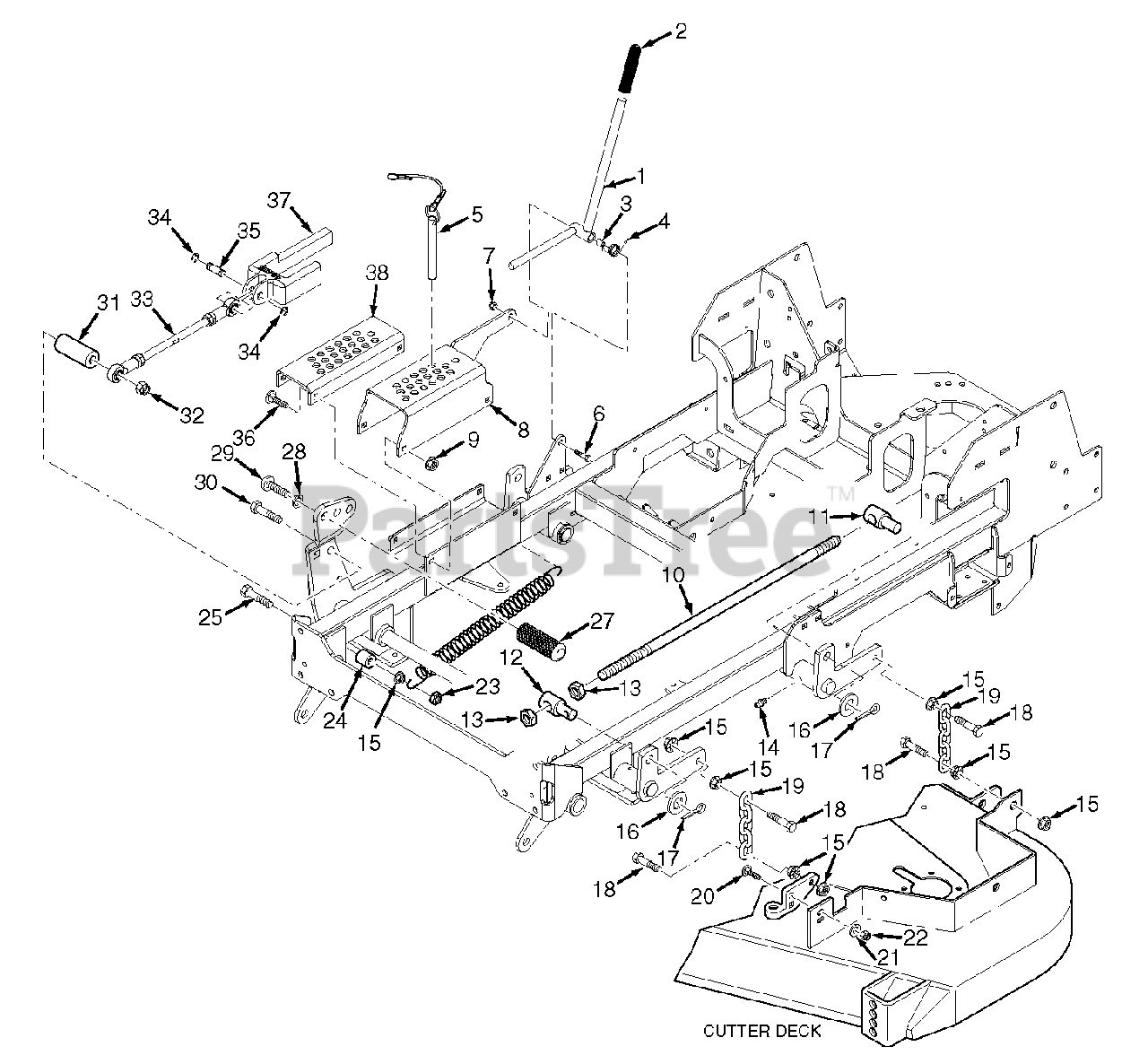

Cutter Deck Controls Parts Diagram

  • Title
1

Scag 462451

Deck Latch Assembly

Note: (incl. #2)

$51.99

$

Usually ships in 2-12 days

0

2

Scag 481477

Grip, Deck Latch

$4.49

$

In Stock, only 2 left!

0

3

Scag 43874

Spacer, Deck Latch

$10.99

$

Usually ships in 2-12 days

0

4

Scag 484191

Spring, Torsion - Lever Return

$7.49

$

Usually ships in 2-12 days

0

5

Scag 483345

Pin Assembly, w/Lanyard

$11.99

$

In Stock, Qty 6

0

6

Scag 04001-54

Bolt, Hex Head 3/8-16 x 3"

$0.99

$

In Stock, Qty 9

0

7

Scag 04021-09

Nut, Elastic Stop 3/8-16

$0.99

$

In Stock, Qty 20+

0

8

Scag 425737

Adjustment Bracket, Cutting Height

$

$

Not available

9

Scag 04019-03

Nut, Serrated Flange 5/16-18

$0.99

$

In Stock, Qty 20+

0

10

Scag 04004-45

Stud, 1/2-13 x 20"

$25.99

$

Usually ships in 2-12 days

0

11

Scag 43678

Swivel Joint, LH

$18.99

$

Usually ships in 2-12 days

0

12

Scag 43679

Swivel Joint, RH

$18.99

$

Usually ships in 2-12 days

0

13

Scag 04020-07

Nut, 1/2-13

$0.99

$

In Stock, only 3 left!

0

14

Scag 48114-04

Grease Fitting, 1/4-28 Self Tap

$0.99

$

In Stock, Qty 20+

0

15

Scag 04019-04

Nut, Serrated Flange 3/8-16

$0.99

$

In Stock, Qty 20+

0

16

Scag 04040-09

Flatwasher, 5/8-.656 x 1.312 x .095

$0.99

$

In Stock, Qty 12

0

17

Scag 04061-07

Cotter Pin, 3/16 x 1"

$1.49

$

In Stock, Qty 9

0

18

Scag 04001-20

Bolt, Hex Head 3/8-16 x 1-1/2"

$0.99

$

In Stock, Qty 20+

0

19

Scag 48540

Chain
(Superseded to 482628)

$11.99

$

In Stock, only 3 left!

0

20

Scag 04003-40

Bolt, Carriage 7/16-14 x 1-1/4"

$1.49

$

In Stock, Qty 6

0

21

Scag 04040-07

Flatwasher, 1/2-.531 x 1.062 x .095

$0.99

$

In Stock, Qty 5

0

22

Scag 04021-11

Nut, Elastic Stop 7/16-11

$0.99

$

In Stock, Qty 10

0

23

Scag 04021-05

Nut, Center Lock 3/8-16

$0.99

$

In Stock, Qty 20+

0

24

Scag 43572

Spacer

$1.99

$

In Stock, Qty 5

0

25

Scag 04001-32

Bolt, Hex Head 3/8-16 x 1-1/4"

$0.99

$

In Stock, Qty 12

0

26

Scag 483177

Spring, Helper

$65.99

$

Usually ships in 2-12 days

0

27

Scag 424504

Foot Pedal, Height Adjustment

$14.99

$

In Stock, only 1 left!

0

28

Scag 04030-07

Lockwasher, 5/8" Spring

$0.99

$

In Stock, Qty 19

0

29

Scag 04105-01

Capscrew, 5/8-11 x 1-1/2”
(Superseded to 04108-04)

$2.99

$

Usually ships in 2-12 days

0

30

Scag 04001-87

Bolt, Hex Head 1/2-13 x 4"

$2.99

$

In Stock, Qty 10

0

31

Scag 43873

Spacer, Deck Lift Pedal

$14.99

$

Usually ships in 2-12 days

0

32

Scag 04021-07

Nut, Elastic Stop 1/2-13

$0.99

$

In Stock, Qty 20+

0

33

Scag 482534

Linkage Assembly, Deck Lift

$83.99

$

Usually ships in 2-12 days

0

33

Scag 482624

Rod, Deck Lift

$10.99

$

Usually ships in 2-12 days

0

33

Scag 04020-28

Jam Nut, 1/2-20 LH Thread

$3.49

$

In Stock, Qty 8

0

33

Scag 481766

Rod End, 1/2-20 LH Female

$48.99

$

In Stock, only 1 left!

0

33

Scag 04020-27

Jam Nut, 1/2-20 RH Thread

$4.49

$

In Stock, Qty 5

0

33

Scag 481765

Rod End, 1/2-20 RH Female

$41.99

$

In Stock, only 1 left!

0

34

Scag 04050-10

Retaining Ring, 1/2" Ext. "E"

$0.99

$

In Stock, only 4 left!

0

35

Scag 43487

Pin, Deck Lift

$26.99

$

In Stock, only 1 left!

0

36

Scag 04003-04

Bolt, Carriage 5/16-18 x 1"

$0.99

$

In Stock, Qty 9

0

36

Scag 04001-09

Bolt, Hex Head 5/16-18 x 1"

$0.99

$

In Stock, Qty 20+

0

36

Scag 04030-03

Lockwasher, 5/16" Spring

$0.99

$

In Stock, Qty 20+

0

37

Scag 484115

Slide, Height Adjust

$54.99

$

Usually ships in 2-12 days

0

38

Scag 425361

Adjustment Bracket, Lower Cut Height

$45.99

$

Usually ships in 2-12 days

0

38

Scag 452408

Adjustment Bracket, Lower Cut Height

$65.99

$

Usually ships in 2-12 days

0
