SCZ48V-25CV - Scag Cheetah 48" Zero-Turn Mower, 25hp Kohler (SN: H6800001 - H6899999) SCZ Suspension System Parts Diagram

Cheetah 48" Zero-Turn Mower, 25hp Kohler

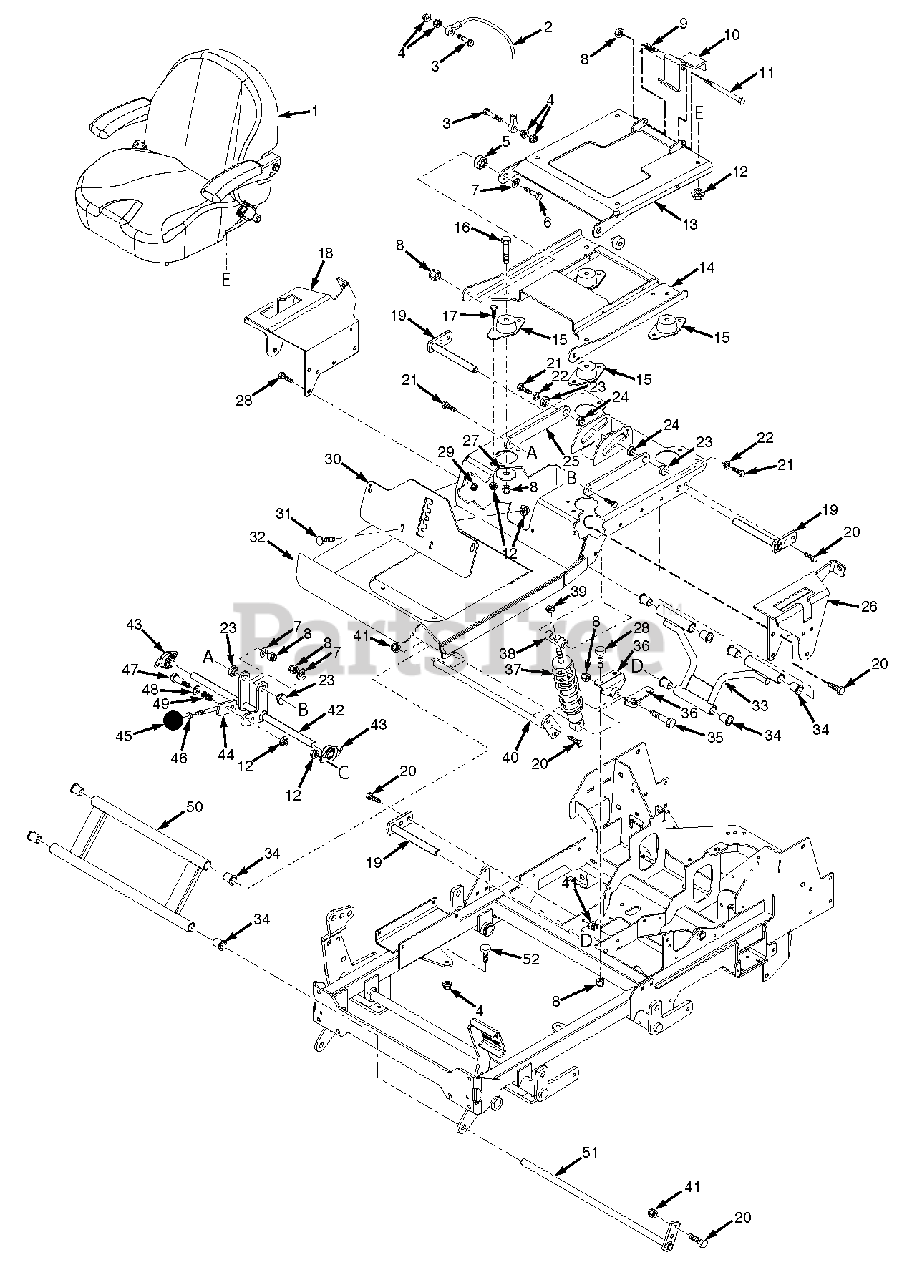

SCZ Suspension System Parts Diagram

  • Title

1

Scag 484588

Seat Assembly

$1490.99

$

In Stock, only 1 left!

0

2

Scag 483559

Cable, Seat Stop

$8.99

$

Usually ships in 2-12 days

0

3

Scag 04001-59

Bolt, Hex Head 1/4-20 x 1-1/4"

$0.99

$

In Stock, Qty 5

0

4

Scag 04019-02

Nut, Serrated Flange 1/4-20

$0.99

$

In Stock, Qty 20+

0

5

Scag 43606

Sleeve, Seat Base Mount

$7.99

$

Usually ships in 2-12 days

0

6

Scag 04001-45

Bolt, Hex Head 3/8-16 x 2"

$0.99

$

In Stock, Qty 8

0

7

Scag 04041-07

Flatwasher, 3/8-.391 x .938 x .105

$0.99

$

In Stock, Qty 20+

0

8

Scag 04021-09

Nut, Elastic Stop 3/8-16

$0.99

$

In Stock, Qty 20+

0

9

Scag 483371

Spring, Seat Latch

$7.99

$

Usually ships in 2-12 days

0

10

Scag 452143

Latch Weldment, Seat

$38.99

$

Usually ships in 2-12 days

0

11

Scag 04001-100

Bolt, Hex Head 3/8-16 x 6"

$5.99

$

Usually ships in 2-12 days

0

12

Scag 04019-03

Nut, Serrated Flange 5/16-18

$0.99

$

In Stock, Qty 20+

0

13

Scag 452147

Seat Plate Weldment

$

$

Not available

14

Scag 462262

Seat Mounting Plate Weldment w/Decal

$145.99

$

Usually ships in 2-12 days

0

15

Scag 484148

Isolator, Seat

$36.99

$

In Stock, only 3 left!

0

16

Scag 04001-46

Bolt, Hex Head 3/8-16 x 2-1/4"

$0.99

$

In Stock, Qty 20+

0

17

Scag 04001-08

Bolt, Hex Head 5/16-18 x 3/4"

$0.99

$

In Stock, Qty 20+

0

18

Scag 462264

Bracket Weld., Control Lever RH w/Decal
(Superseded to 462349)

$97.99

$

Usually ships in 2-12 days

0

19

Scag 452152

Shaft Weldment, Rear Op. Platform Pivot

$24.99

$

Usually ships in 2-12 days

0

20

Scag 04001-09

Bolt, Hex Head 5/16-18 x 1"

$0.99

$

In Stock, Qty 20+

0

21

Scag 04001-20

Bolt, Hex Head 3/8-16 x 1-1/2"

$0.99

$

In Stock, Qty 20+

0

22

Scag 04030-04

Lockwasher, 3/8" Spring

$0.99

$

In Stock, Qty 8

0

23

Scag 43086

Bushing

$5.99

$

Usually ships in 2-12 days

0

24

Scag 484035

Bearing

$3.99

$

Usually ships in 2-12 days

0

25

Scag 425257

Link, Suspension Seat Tensioner

$16.99

$

Usually ships in 2-12 days

0

26

Scag 462263

Bracket Weld., Control Lever LH w/Decal
(Superseded to 462348)

$97.99

$

Usually ships in 2-12 days

0

27

Scag 04041-38

Flatwasher, 3/8-.406 x 2.25 x .188

$3.49

$

In Stock, Qty 8

0

28

Scag 04001-19

Bolt, Hex Head 3/8-16 x 1"

$0.99

$

In Stock, Qty 6

0

29

Scag 04019-04

Nut, Serrated Flange 3/816

$0.99

$

In Stock, Qty 20+

0

30

Scag 462267

Bracket, Suspension Adjustment w/Decal

$86.99

$

Usually ships in 2-12 days

0

31

Scag 04003-04

Bolt, Carriage 5/16-18 x 1"

$0.99

$

In Stock, Qty 9

0

32

Scag 462497

Seat Mounting Base Weldment w/Decal

$651.99

$

Usually ships in 2-12 days

0

33

Scag 462212

Suspension Pivot Assembly, Rear

$189.99

$

Usually ships in 2-12 days

0

34

Scag 483453-14

Bearing

$4.49

$

In Stock, only 2 left!

0

35

Scag 04001-22

Bolt, Hex Head 3/8-16 x 2-3/4"

$1.49

$

In Stock, Qty 10

0

36

Scag 452154

Mount Weldment, Shock

$31.99

$

Usually ships in 2-12 days

0

37

Scag 484032

Shock Absorber, Suspension

$208.99

$

Usually ships in 2-12 days

0

38

Scag 484150

Mount, Suspension Shock

$30.99

$

In Stock, only 1 left!

0

39

Scag 04021-18

Nut, Elastic Stop 3/8-24

Note: Grade 8

$1.49

$

In Stock, Qty 9

0

40

Scag 452151

Pin Weldment, Op Platform Upper Pivot

$33.99

$

Usually ships in 2-12 days

0

41

Scag 04021-10

Nut, Elastic Stop 5/16-18

$0.99

$

In Stock, Qty 20+

0

42

Scag 452107

Pivot Weldment, Suspension Tensioner

$54.99

$

Usually ships in 2-12 days

0

43

Scag 48796

Bearing, Self Align 5/8" ID

$12.99

$

Usually ships in 2-12 days

0

44

Scag 452106

Adjustment Lever, Suspension

$29.99

$

Usually ships in 2-12 days

0

45

Scag 484010

Knob

$11.99

$

Usually ships in 2-12 days

0

46

Scag 04020-12

Nut, Jam 3/8-16

$0.99

$

In Stock, only 3 left!

0

47

Scag 04009-11

Bolt, Shoulder 3/8 x 1"

$2.99

$

In Stock, only 4 left!

0

47

Scag 04009-14

Bolt, Shoulder 3/8 x 3/8"

$5.99

$

In Stock, only 3 left!

0

48

Scag 04050-05

Flatwasher, 3/8-.406 x .812 x .065

$0.99

$

In Stock, Qty 20+

0

49

Scag 483601

Spring

$2.99

$

Usually ships in 2-12 days

0

50

Scag 462400

Suspension Pivot Assembly, Front

$

$

Currently unavailable

51

Scag 452150

Pin Weldment, Op Platform Lower Pivot

$35.99

$

Usually ships in 2-12 days

0

52

Scag 484201

Bumper, Rubber

$3.49

$

Usually ships in 2-12 days

0
