SCZ48V-25CV - Scag Cheetah 48" Zero-Turn Mower, 25hp Kohler (SN: H6800001 - H6899999) SCZ Hydraulic System Parts Diagram

Cheetah 48" Zero-Turn Mower, 25hp Kohler

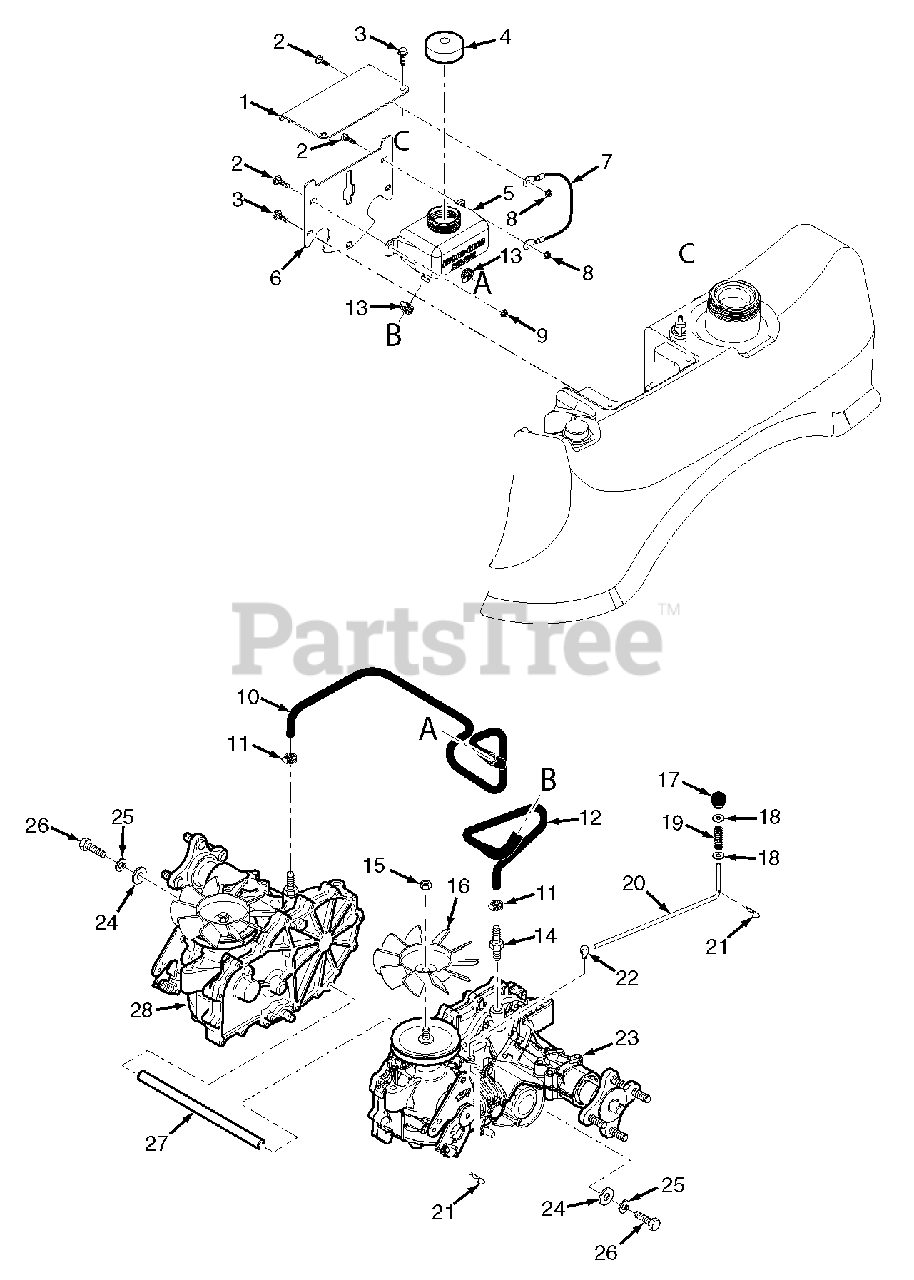

SCZ Hydraulic System Parts Diagram

  • Title

1

Scag 425861

Cover, Oil Reservoir

$22.99

$

Usually ships in 2-12 days

0

2

Scag 04003-02

Bolt, Carriage 1/4-20 x 3/4"

$0.99

$

In Stock, Qty 20+

0

3

Scag 04017-04

Bolt, Serrated Flange 1/4-20 x 1/2"

$0.99

$

In Stock, Qty 20+

0

4

Scag 483514

Cap, Oil Reservoir

$23.99

$

Usually ships in 2-12 days

0

5

Scag 484517

Oil Reservoir Assembly

Note: (incl. #4)

$35.99

$

Usually ships in 2-12 days

0

6

Scag 425860

Mounting Bracket, Oil Reservoir

$24.99

$

Usually ships in 2-12 days

0

7

Scag 484196

Lanyard, Oil Reservoir Cover

$15.99

$

Usually ships in 2-12 days

0

8

Scag 04117-03

Nut, Flanged Elastic Stop 1/4-20

$0.99

$

In Stock, Qty 10

0

9

Scag 04021-08

Nut, Elastic Stop 1/4-20

$0.99

$

In Stock, Qty 10

0

10

Scag 484607

Hose, RH Transaxle

$96.99

$

Usually ships in 2-12 days

0

11

Scag 48136-13

Clamp, .69 Max Dia.

$7.49

$

In Stock, Qty 20+

0

12

Scag 484537

Hose, LH Transaxle

$51.99

$

Usually ships in 2-12 days

0

13

Scag 48136-05

Clamp, .87 Max Dia.

$3.99

$

In Stock, only 2 left!

0

14

Scag 482800-04

Fitting, Transmission

$11.99

$

Usually ships in 2-12 days

0

15

Scag HG44133

Fan Nut

$

$

Currently unavailable

16

Fan (order through Hydro-Gear)

$

$

Not available

17

Scag 484573

Knob, Dump Lever

$8.49

$

Usually ships in 2-12 days

0

18

Scag 04040-14

Flatwasher, 1/4-.312 x .750 x .065

$0.99

$

In Stock, only 4 left!

0

19

Scag 482070

Spring

$6.99

$

Usually ships in 2-12 days

0

20

Scag 44186

Linkage, Dump Valve

$28.99

$

Usually ships in 2-12 days

0

21

Scag 04062-02

Hair Pin Cotter

$0.99

$

In Stock, Qty 20+

0

22

Scag 43876

Joint, Swivel

$10.99

$

Usually ships in 2-12 days

0

23

Scag 484454

Transaxle, LH
(Superseded to 486885)

$2498.99

$

Usually ships in 2-12 days

0

24

Scag 04041-07

Flatwasher, 3/8-.391 x .938 x .105

$0.99

$

In Stock, Qty 20+

0

25

Scag 04030-04

Lockwasher, 3/8" Spring

$0.99

$

In Stock, Qty 8

0

26

Scag 04001-46

Bolt, Hex Head 3/8-16 x 2-1/4"

$0.99

$

In Stock, Qty 20+

0

27

Scag 43864

Spacer, Axles

$23.99

$

Usually ships in 2-12 days

0

28

Scag 484455

Transaxle, RH

$1319.99

$

Usually ships in 2-12 days

0
