SCZ48V-25CV - Scag Cheetah 48" Zero-Turn Mower, 25hp Kohler (SN: H6800001 - H6899999) 48V & 52V Cutter Decks Parts Diagram

Cheetah 48" Zero-Turn Mower, 25hp Kohler

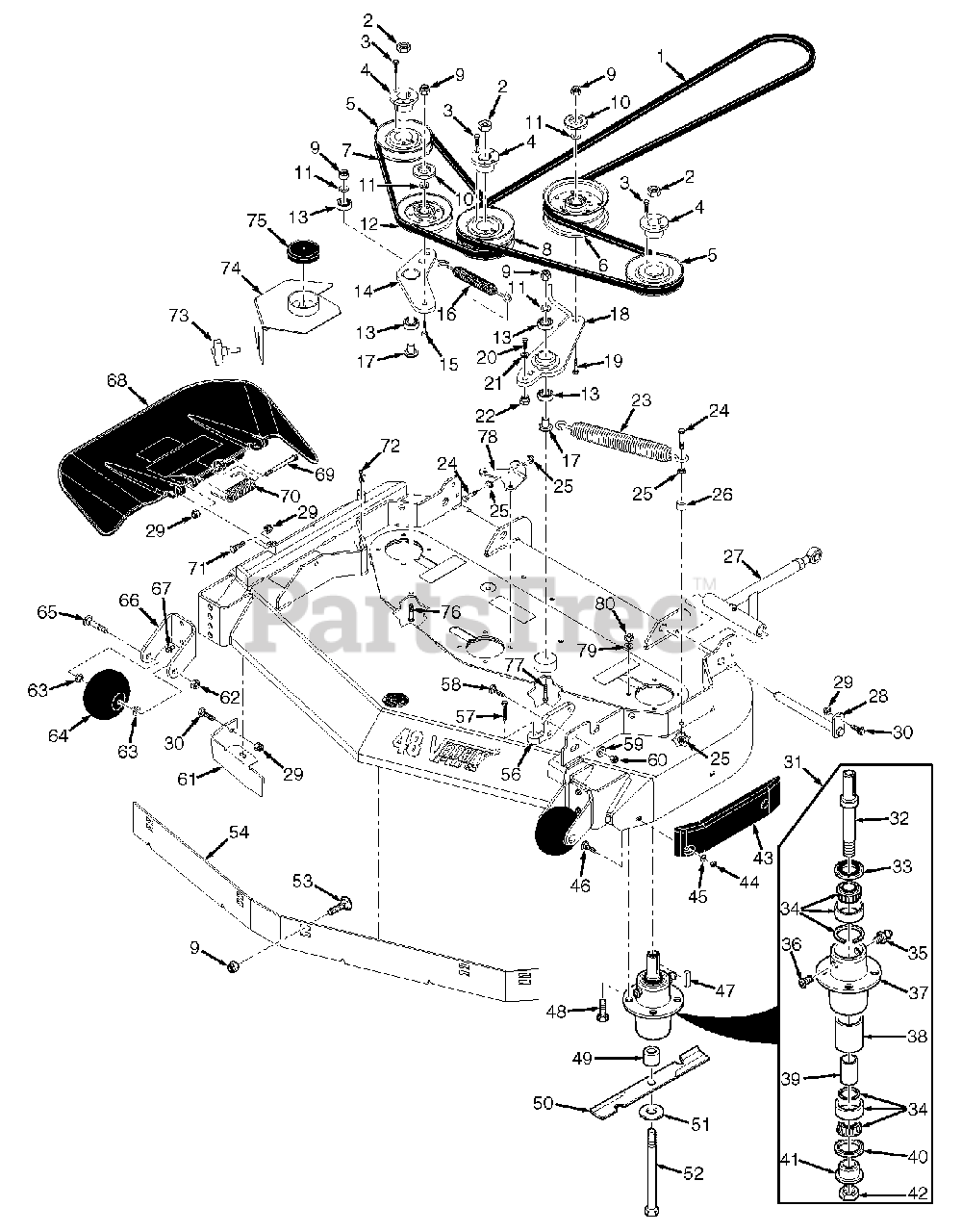

48V & 52V Cutter Decks Parts Diagram

  • Title

1

Scag 483241

Belt, Deck Drive

$65.99

$

In Stock, Qty 20+

0

1

Scag 483242

Belt, Deck Drive

$80.99

$

In Stock, Qty 12

0

2

Scag 04020-09

Nut, 5/8-11 UNC

$0.99

$

In Stock, Qty 20+

0

3

Scag 04001-172

Bolt, Hex Head 1/4-20 x 1"

$0.99

$

In Stock, Qty 20+

0

4

Scag 48926

Tapered Hub, 1.125" Bore

$30.99

$

In Stock, Qty 20+

0

5

Scag 483282

Pulley, 5.13" Dia.

$36.99

$

In Stock, only 2 left!

0

5

Scag 483284

Pulley, 5.73" Dia.

$37.99

$

In Stock, only 1 left!

0

6

Scag 483210

Pulley, 5" Idler

$55.99

$

In Stock, only 2 left!

0

7

Scag 483239

Belt, RH Deck Drive

$31.99

$

In Stock, only 1 left!

0

7

Scag 483240

Belt, RH Deck Drive

$34.99

$

In Stock, only 1 left!

0

8

Scag 483283

Pulley, 5.232" Dia.

$62.99

$

In Stock, only 1 left!

0

8

Scag 483285

Pulley, 5.832" Dia.

$63.99

$

In Stock, only 1 left!

0

9

Scag 04021-09

Nut, Elastic Stop 3/8-16

$0.99

$

In Stock, Qty 20+

0

10

Scag 424367

Dust Shield

$2.49

$

In Stock, only 2 left!

0

11

Scag 04043-04

Flatwasher, 3/8-.391 x .938 x .105 HD

$0.99

$

In Stock, Qty 20+

0

12

Scag 48181

Pulley, Idler

$26.99

$

In Stock, Qty 11

0

13

Scag 48224

Bearing

$12.99

$

In Stock, Qty 20+

0

14

Scag 461946

Idler Arm Assy.

Note: (incl. #13)

$69.99

$

In Stock, only 1 left!

0

15

Scag 04001-45

Bolt, Hex Head 3/8-16 x 2"

$0.99

$

In Stock, Qty 8

0

16

Scag 483247

Spring, RH Deck

$51.99

$

In Stock, only 1 left!

0

17

Scag 43689

Pivot, Idler

$10.99

$

In Stock, Qty 20+

0

18

Scag 462503

Idler Arm Assy.

Note: (incl. #13)

$88.99

$

In Stock, only 1 left!

0

19

Scag 04001-54

Bolt, Hex Head 3/8-16 x 3"

$0.99

$

In Stock, Qty 9

0

20

Scag 04001-27

Bolt, Hex Head 7/16-14 x 1"

$0.99

$

Usually ships in 2-12 days

0

21

Scag 04030-05

Lockwasher, 7/16" Spring

$0.99

$

In Stock, Qty 5

0

22

Scag 43686

Boss, Spring Anchor - LH

$7.99

$

Usually ships in 2-12 days

0

23

Scag 483246

Spring, LH Deck

$51.99

$

Usually ships in 2-12 days

0

24

Scag 04001-136

Bolt, Hex Head 3/8-16 x 1-1/2"

Note: Grade 8

$0.99

$

In Stock, Qty 20+

0

25

Scag 04019-04

Nut, Serrated Flange 3/8-16

$0.99

$

In Stock, Qty 20+

0

26

Scag 43063

Spacer

$7.99

$

In Stock, only 2 left!

0

27

Scag 462463

Pusharm Assy., LH

$145.99

$

Usually ships in 2-12 days

0

27

Scag 462464

Pusharm Assy., RH

$145.99

$

Usually ships in 2-12 days

0

28

Scag 451240

Rod Weldment, Pusharm

$52.99

$

In Stock, Qty 20+

0

29

Scag 04021-10

Nut, Elastic Stop 5/16-18

$0.99

$

In Stock, Qty 20+

0

30

Scag 04001-09

Bolt, Hex Head 5/16-18 x 1"

$0.99

$

In Stock, Qty 20+

0

31

Scag 461663

Spindle Assembly

$257.99

$

In Stock, Qty 20+

0

32

Scag 43589

Shaft, Spindle

$58.99

$

In Stock, only 1 left!

0

33

Scag 481024

Seal, Top

$4.99

$

In Stock, Qty 20+

0

34

Scag 481022

Bearing Assembly

$59.99

$

In Stock, Qty 15

0

35

Scag 48114-04

Grease Fitting

$0.99

$

In Stock, Qty 20+

0

36

Scag 48677

Relief Fitting, Spindle

$

$

Not available

37

Scag 43644

Spindle Housing

$58.99

$

In Stock, only 2 left!

0

38

Scag 43312

Spacer, Outside

$19.99

$

In Stock, only 1 left!

0

39

Scag 43296

Spacer, Inside

$8.49

$

In Stock, only 2 left!

0

40

Scag 481025

Seal, Bottom

$4.99

$

In Stock, Qty 20+

0

41

Scag 43296

Spindle Bushing

$8.49

$

In Stock, only 2 left!

0

42

Scag 481035

Nut, Special 1-1/16 - 18

$7.99

$

In Stock, only 3 left!

0

43

Scag 483176

Wear Pad

$33.99

$

In Stock, Qty 20+

0

44

Scag 04021-04

Nut, Center Lock 5/16-18

$0.99

$

In Stock, Qty 20+

0

45

Scag 04040-04

Flatwasher, 5/16-.344 x .688 x .065

$0.99

$

In Stock, Qty 20+

0

46

Scag 04003-12

Bolt, Carriage 5/16-18 x 3/4"

$0.99

$

In Stock, Qty 20+

0

47

Scag 04063-08

Key, 1/4 x 1/4 x 2"

$1.49

$

In Stock, Qty 20+

0

48

Scag 04001-176

Bolt, Hex Head 5/16-18 x 1-3/4"

Note: Grade 8

$0.99

$

In Stock, Qty 20+

0

49

Scag 43590

Spacer, Spindle Bottom

$17.99

$

In Stock, Qty 20+

0

50

Scag 482877

Cutter Blade, 16.5"

$22.99

$

In Stock, Qty 20+

0

50

Scag 482878

Cutter Blade, 18"

$23.99

$

In Stock, Qty 20+

0

51

Scag 04043-06

Flatwasher, 5/8-.688 x 1.75 x .134 HD

$1.99

$

In Stock, Qty 20+

0

52

Scag 04001-41

Bolt, Hex Head 5/8-11 x 9-1/2"

$12.99

$

In Stock, Qty 20+

0

53

Scag 04003-23

Bolt, Carriage 3/8-16 x 1"

$1.49

$

In Stock, Qty 20+

0

54

Scag 424839

Baffle, Flange - 48V

$84.99

$

In Stock, only 1 left!

0

54

Scag 424840

Baffle, Flange - 52V

$101.99

$

Usually ships in 2-12 days

0

55

Scag 462501

Cutter Deck w/Decals

$1445.99

$

Usually ships in 2-12 days

0

55

Scag 462502

Cutter Deck w/Decals

$1464.99

$

Usually ships in 2-12 days

0

56

Scag 461929

Lever Assy., Deck Level

$61.99

$

Usually ships in 2-12 days

0

57

Scag 483167

Bolt, Deck Adjustment

$17.99

$

Usually ships in 2-12 days

0

58

Scag 04003-40

Bolt, Carriage 7/16-14 x 1-1/4"

$1.49

$

In Stock, Qty 6

0

59

Scag 04040-07

Flatwasher, 1/2-.531 x 1.062 x .095

$0.99

$

In Stock, Qty 5

0

60

Scag 04021-11

Nut, Elastic Stop 7/16-14

$0.99

$

In Stock, Qty 10

0

61

Scag 424677

Baffle, Turbo

$31.99

$

In Stock, only 1 left!

0

62

Scag 04021-05

Nut, Center Lock 3/8-16

$0.99

$

In Stock, Qty 20+

0

63

Scag 48100-15

Bushing, .376 ID Oilite

$4.99

$

In Stock, Qty 20+

0

64

Scag 481632

Wheel, Anti-Scalp

$21.99

$

In Stock, Qty 20+

0

65

Scag 04003-26

Bolt, Carriage 3/8-16 x 4"

$1.99

$

In Stock, Qty 20+

0

66

Scag 422478

Bracket, Anti-Scalp Wheel

$28.99

$

In Stock, Qty 20+

0

67

Scag 04017-27

Bolt, Serrated Flange 3/8-16 x 1"

$1.49

$

In Stock, Qty 20+

0

68

Scag 461844

Discharge Chute Assy.

$66.99

$

In Stock, only 2 left!

0

68

Scag 461845

Discharge Chute Assy.

$66.99

$

In Stock, only 1 left!

0

69

Scag 04001-154

Bolt, Hex Head 5/16-18 x 4-3/4"

$2.99

$

In Stock, Qty 20+

0

70

Scag 483378

Spring, Discharge Chute

$7.49

$

In Stock, only 4 left!

0

71

Scag 04001-12

Bolt, Hex Head 5/16-18 x 1-3/4"

$0.99

$

In Stock, Qty 20+

0

72

Scag 04110-03

U-Nut, 3/8-16

$2.49

$

In Stock, Qty 20+

0

73

Scag 481625-01

Wing Nut, 3/8-16

$2.99

$

In Stock, Qty 20+

0

74

Scag 462479

Belt Cover Assy., LH

$82.99

$

Usually ships in 2-12 days

0

74

Scag 462480

Belt Cover Assy., RH

$68.99

$

Usually ships in 2-12 days

0

74

Scag 462481

Belt Cover Assy., LH

$58.99

$

In Stock, only 1 left!

0

74

Scag 462482

Belt Cover Assy., RH

$68.99

$

Usually ships in 2-12 days

0

75

Scag 484368

Cap, Spindle

$4.99

$

In Stock, Qty 20+

0

76

Scag 04001-46

Bolt, Hex Head 3/8-16 x 2-1/4"

$0.99

$

In Stock, Qty 20+

0

77

Scag 04001-62

Bolt, Hex Head 3/8-16 x 3-1/4"

$1.49

$

In Stock, Qty 12

0

78

Scag 424376

Anchor Bracket, Spring

$12.99

$

Usually ships in 2-12 days

0

78

Scag 424377

Anchor Bracket, Spring

$11.99

$

In Stock, only 1 left!

0

79

Scag 04030-03

Lockwasher, 5/16" Spring

$0.99

$

In Stock, Qty 20+

0

80

Scag 04021-22

Nut, Elastic Stop 5/16-18

Note: Grade 8

$0.99

$

In Stock, Qty 20+

0
