SCZ48V-23CV - Scag Cheetah 48" Zero-Turn Mower, 23hp Kohler (SN: J9700001 - J9799999) SCZ Roll-Over Protection System Parts Diagram

Cheetah 48" Zero-Turn Mower, 23hp Kohler

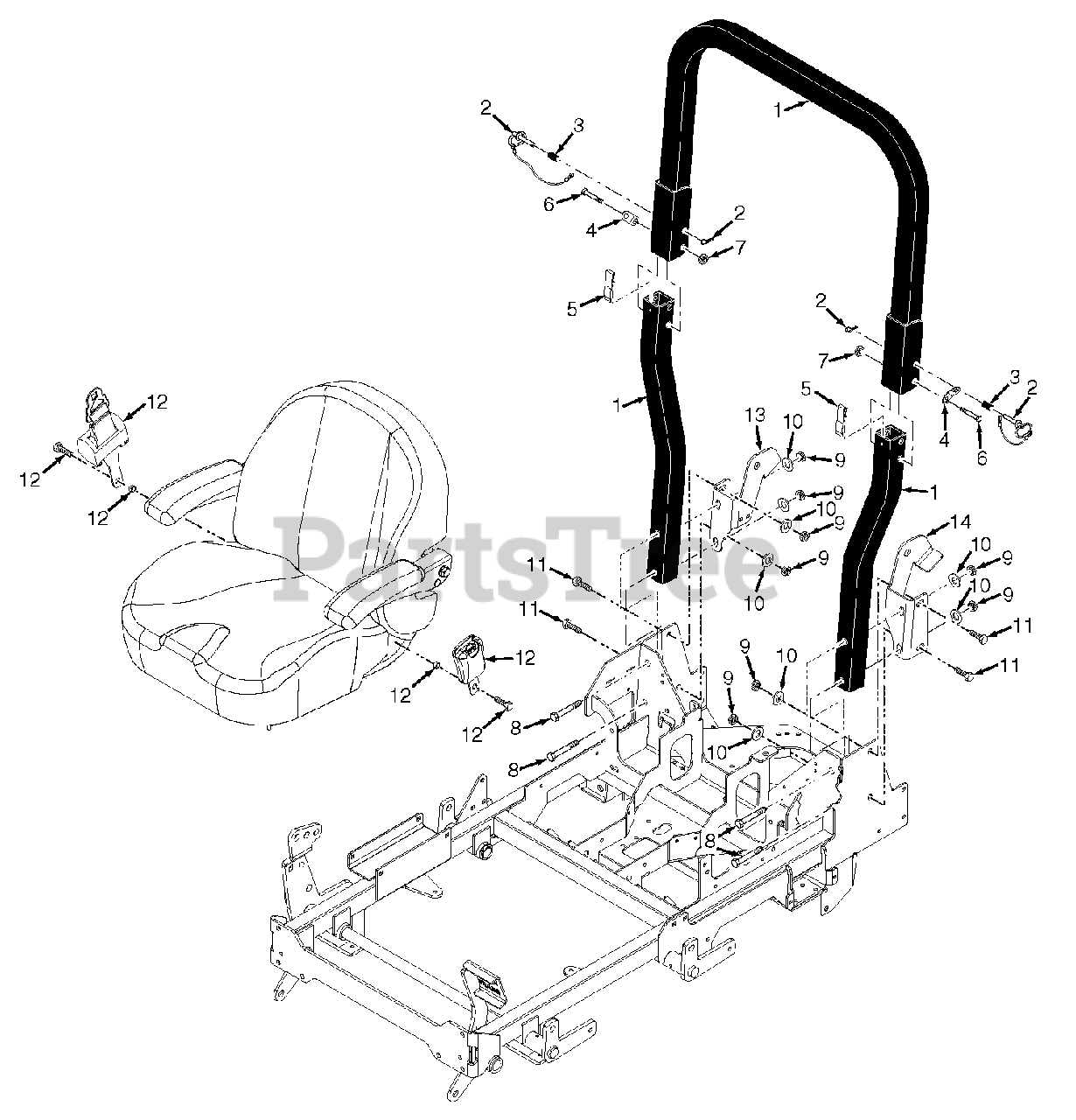

SCZ Roll-Over Protection System Parts Diagram

  • Title

1

Scag 462414

ROPS Assembly, Foldable
(Superseded to 462935)

$665.99

$

Usually ships in 2-12 days

0

2

Scag 484168

Pin Assembly

Note: (incl. #3)

$27.99

$

Usually ships in 2-12 days

0

3

Scag 484170

Spring, ROPS

$1.49

$

Usually ships in 2-12 days

0

4

Scag 484169

Clip, ROPS

$3.49

$

Usually ships in 2-12 days

0

5

Scag 484167

Spring, ROPS Anti-Rattle

$4.49

$

Usually ships in 2-12 days

0

6

Scag 04001-90

Bolt, Hex Head 1/2-13 x 3-1/4"

$2.99

$

Usually ships in 2-12 days

0

7

Scag 04021-07

Nut, Elastic Stop 1/2-13

$0.99

$

In Stock, Qty 20+

0

8

Scag 04001-145

Bolt, Hex Head 1/2-13 x 3-1/2"

$2.49

$

In Stock, only 3 left!

0

9

Scag 04021-19

Nut, Center Lock 1/2-13

$0.99

$

In Stock, Qty 5

0

10

Scag 04040-13

Flatwasher, 1/2-.562 x 1.375 x .109

$0.99

$

In Stock, Qty 20+

0

11

Scag 04001-70

Bolt, Hex Head 1/2-13 x 1-1/4"

$1.49

$

In Stock, Qty 5

0

12

Scag 484527

Seat Belt Kit

$118.99

$

Usually ships in 2-12 days

0

13

Scag 425962

ROPS Mount, RH

$41.99

$

Usually ships in 2-12 days

0

14

Scag 425961

ROPS Mount, LH

$41.99

$

Usually ships in 2-12 days

0
