SCZ48V-23CV - Scag Cheetah 48" Zero-Turn Mower, 23hp Kohler (SN: J9700001 - J9799999) SCZ Engine & Attaching Parts Parts Diagram

Cheetah 48" Zero-Turn Mower, 23hp Kohler

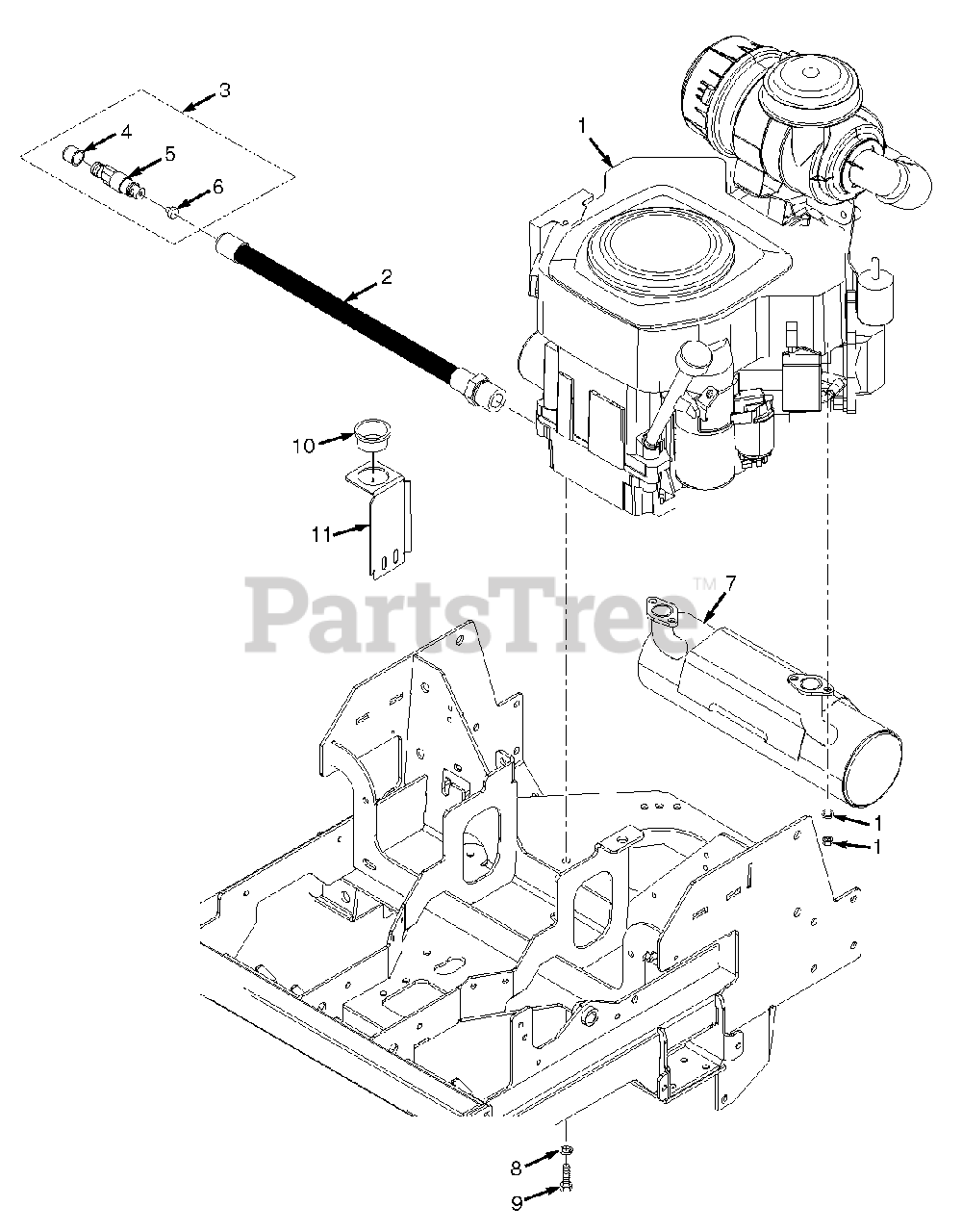

SCZ Engine & Attaching Parts Parts Diagram

  • Title

1

Scag 484414

Engine, Kawasaki 22FX (FX691V)

Note: Available through the individual engine manufacturer.

$

$

Currently unavailable

1

Scag 484226

Engine, Kohler 23CV (CV730)

Note: Available through the individual engine manufacturer.

$

$

Currently unavailable

1

Scag 484689

Engine, Kohler 23CV-EFI (ECV730)

Note: Available through the individual engine manufacturer.

$

$

Currently unavailable

1

Scag 484415

Engine, Kawasaki 23FX (FX730V)

Note: Available through the individual engine manufacturer.

$

$

Currently unavailable

1

Scag 484227

Engine, Kohler 25CV (CV740)

Note: Available through the individual engine manufacturer.

$

$

Currently unavailable

1

Scag 484690

Engine, Kohler 25CV-EFI (ECV740)

Note: Available through the individual engine manufacturer.

$

$

Currently unavailable

1

Scag 484561

Engine, Briggs & Stratton 26BS (44L977)

Note: Available through the individual engine manufacturer.

$

$

Currently unavailable

2

Scag 484581

Hose Assembly, Engine Oil Drain - Kawasaki FS/FX

Note: (incl. #3, 4, 5, 6)

$61.99

$

In Stock, only 1 left!

0

2

Scag 484628

Hose, Oil Drain - Briggs & Stratton ELS

Note: (incl. #3, 4, 5, 6)

$

$

Currently unavailable

2

Scag 484610

Hose, Oil Drain - Kohler CV
(Superseded to 484706)

Note: (incl. #3, 4, 5, 6)

$41.99

$

Usually ships in 2-12 days

0

3

Scag 484593

Valve Assembly, Oil Drain

$10.99

$

In Stock, only 3 left!

0

4

Scag 484585

Cap

$0.99

$

In Stock, only 4 left!

0

5

Scag 48603-12

O-Ring

$0.99

$

In Stock, Qty 8

0

6

Scag 484586

Seal

$0.99

$

Usually ships in 2-12 days

0

7

Scag 484751

Muffler, Kawasaki FS/FX

$185.99

$

Usually ships in 2-12 days

0

7

Scag 484567

Muffler, Briggs & Stratton

$183.99

$

Usually ships in 2-12 days

0

7

Scag 484568

Muffler, Kohler CV
(Superseded to 486141)

$185.99

$

In Stock, only 2 left!

0

7

Scag 484650

Muffler, Kohler ECV (EFI)

$209.99

$

Usually ships in 2-12 days

0

8

Scag 04030-04

Lockwasher, 3/8" Spring (Kawasaki)

$0.99

$

In Stock, Qty 8

0

9

Scag 04001-32

Bolt, Hex Head 3/8-16 x 1-1/4" (Kawasaki)

$0.99

$

In Stock, Qty 14

0

9

Scag 04011-07

Bolt, Hex Head 3/8-16 x 1-1/4" Self Tap (Briggs and Kohler)

$3.49

$

In Stock, Qty 11

0

9

Scag 04001-11

Bolt, Hex Head 5/16-18 x 1-1/2" (Right Front Engine Mounting, Briggs and Kohler Only)

$0.99

$

In Stock, Qty 6

0

9

Scag 04019-03

Nut, Serrated Flange 5/16-18 (Right Front Engine Mounting, Briggs and Kohler Only)

$0.99

$

In Stock, Qty 20+

0

10

Scag 484617

Bushing, Thick Panel Snap

$3.49

$

Usually ships in 2-12 days

0

11

Scag 426040

Bracket, Oil Drain Hose

$26.99

$

Usually ships in 2-12 days

0
