SCZ48V-23CV-EFI - Scag Cheetah 48" Zero-Turn Mower, 23hp Kohler (SN: L6200001 - L6299999) SCZ Drive System Components Parts Diagram

Cheetah 48" Zero-Turn Mower, 23hp Kohler

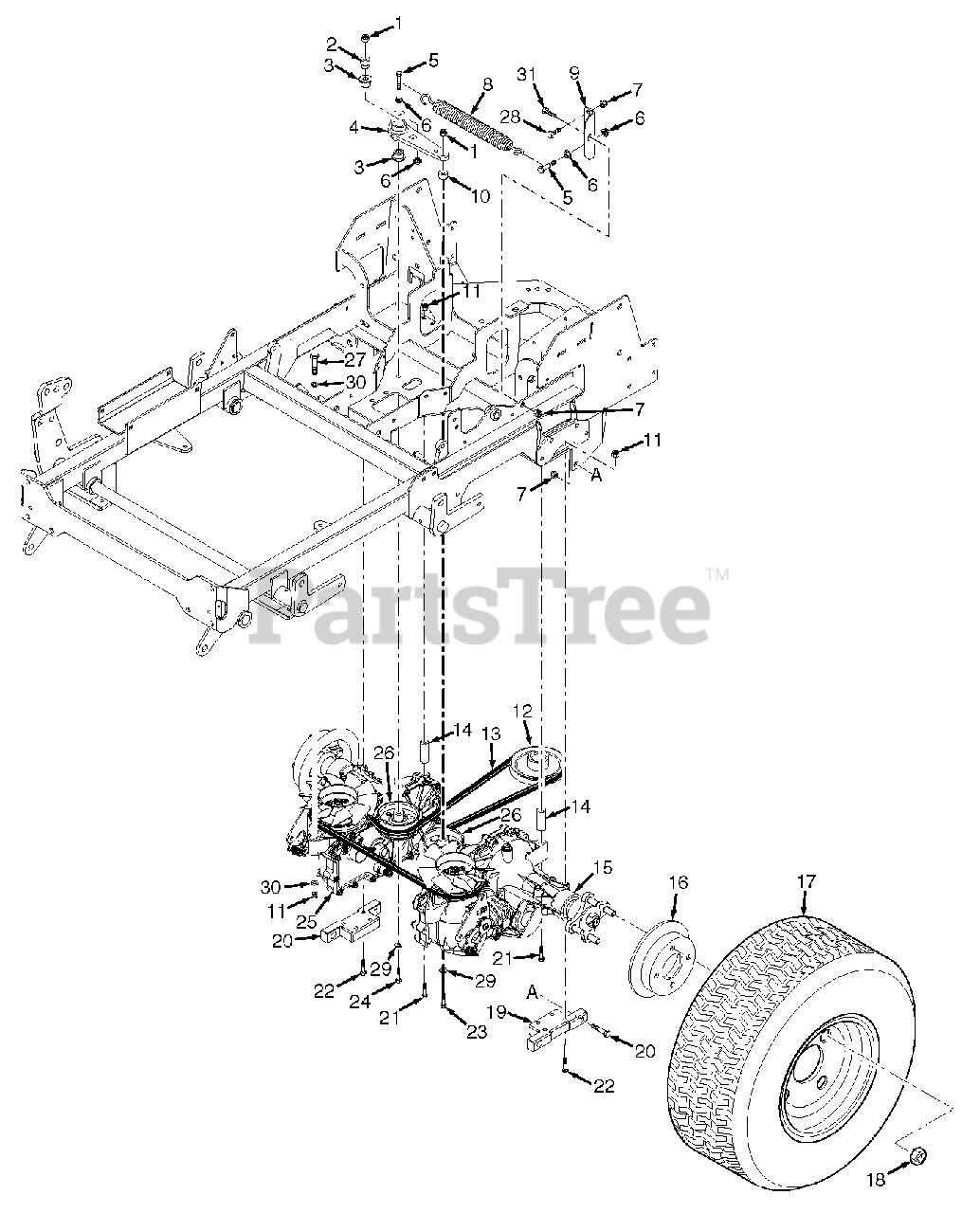

SCZ Drive System Components Parts Diagram

  • Title

1

Scag 04021-09

Nut, Elastic Stop 3/8-16

$0.99

$

In Stock, Qty 20+

0

2

Scag 43715

Shaft, Pivot Idler Arm

$17.99

$

In Stock, Qty 11

0

3

Scag 483453-04

Bearing

$3.99

$

In Stock, Qty 20+

0

4

Scag 462492

Idler Arm Assembly

Note: (incl. #3)

$58.99

$

Usually ships in 2-12 days

0

5

Scag 04001-136

Bolt, Hex Head 3/8-16 x 1-1/2" Grade 8

$0.99

$

In Stock, Qty 20+

0

6

Scag 04019-04

Nut, Serrated Flange 3/8-16

$0.99

$

In Stock, Qty 20+

0

7

Scag 04021-09

Nut, Elastic Stop 3/8-16

$0.99

$

In Stock, Qty 20+

0

8

Scag 484560

Spring, Pump Drive

$83.99

$

Usually ships in 2-12 days

0

9

Scag 425907

Anchor Bracket, Pump Spring

$15.99

$

Usually ships in 2-12 days

0

10

Scag 43572

Spacer

$1.99

$

In Stock, Qty 5

0

11

Scag 04021-10

Nut, Elastic Stop 5/16-18

$0.99

$

In Stock, Qty 20+

0

12

Scag 484373

Pulley, 5" Dia. - 1.125" Bore

$58.99

$

Usually ships in 2-12 days

0

13

Scag 484372

Belt, Pump Drive

$51.99

$

In Stock, Qty 19

0

14

Scag 43857

Spacer, Axle

$17.99

$

Usually ships in 2-12 days

0

15

Scag 484454

Transaxle, LH
(Superseded to 486885)

$2015.99

$

Usually ships in 2-12 days

0

16

Scag 43853

Spacer, Axle

$125.99

$

Usually ships in 2-12 days

0

17

Scag 484558

Wheel Assembly, 23 x 9.5-12 (48)

$422.99

$

Usually ships in 2-12 days

0

17

Scag 481659

Rim (48)

$137.99

$

In Stock, only 1 left!

0

17

Scag 484466

Tire, 23 x 9.5-12

$322.99

$

Usually ships in 2-12 days

0

17

Scag 484465

Wheel Assembly, 23 x 9.5-12 (52)

$421.99

$

Usually ships in 2-12 days

0

17

Scag 482414

Rim (52)

$137.99

$

In Stock, only 1 left!

0

18

Scag 04028-02

Wheel Nut, 1/2-20

$1.49

$

In Stock, Qty 20+

0

19

Scag 484480

Mount, Pusharm

$56.99

$

Usually ships in 2-12 days

0

20

Scag 04001-142

Bolt, Hex Head 5/8-11 x 2-1/2"

$2.49

$

Usually ships in 2-12 days

0

21

Scag 04001-154

Bolt, Hex Head 5/16-18 x 4-3/4"

$2.99

$

In Stock, Qty 20+

0

22

Scag 04001-76

Bolt, Hex Head 5/16-18 x 4"

$1.99

$

In Stock, Qty 5

0

23

Scag 04001-62

Bolt, Hex Head 3/8-16 x 3-1/4"

$1.49

$

In Stock, Qty 11

0

24

Scag 04001-152

Bolt, Hex Head 3/8-16 x 4-1/4"

$5.49

$

In Stock, Qty 5

0

25

Scag 484455

Transaxle, RH

$

$

Not available

26

Scag 483638

Pulley, 3-1/2" Idler
(Superseded to 486045)

$20.99

$

In Stock, Qty 20+

0

27

Scag 04001-39

Bolt, Hex Head 5/16-18 x 2-1/4"

$0.99

$

In Stock, Qty 10

0

28

Scag 04001-19

Bolt, Hex Head 3/8-16 x 1"

$0.99

$

In Stock, Qty 20+

0

29

Scag 04043-04

Flatwasher, 3/8-.391 x .938 x .105 HD

$0.99

$

In Stock, Qty 20+

0

30

Scag 04040-15

Flatwasher, 5/16-.375 x .875 x .083

$0.99

$

In Stock, Qty 20+

0

31

Scag 04001-32

Bolt, Hex Head 3/8-16 x 1-1/4"

$0.99

$

In Stock, Qty 11

0
