Scag SCZ48V-23CV-EFI - Scag Cheetah 48" Zero-Turn Mower, 23hp Kohler (SN: L6200001 - L6299999) Cutter Deck Controlsols Parts Lookup with Diagrams

1

Scag 462451

Deck Latch Assembly

Note: (incl. #2)

$52.99

$

Usually ships in 2-12 days

2

Scag 481477

Grip, Deck Latch

$4.49

$

Usually ships in 2-12 days

3

Scag 43874

Spacer, Deck Latch

$10.99

$

Usually ships in 2-12 days

4

Scag 484191

Spring, Torsion - Lever Return

$7.49

$

Usually ships in 2-12 days

5

Scag 483345

Pin Assembly, w/Lanyard

$11.99

$

In Stock, Qty 6

6

Scag 04001-54

Bolt, Hex Head 3/8-16 x 3"

$1.49

$

In Stock, Qty 10

7

Scag 04021-09

Nut, Elastic Stop 3/8-16

$0.99

$

In Stock, Qty 20+

8

Scag 425737

Adjustment Bracket, Cutting Height

$92.99

$

Usually ships in 2-12 days

9

Scag 04019-03

Nut, Serrated Flange 5/16-18

$0.99

$

In Stock, Qty 20+

10

Scag 04004-45

Stud, 1/2-13 x 20"

$32.99

$

Usually ships in 2-12 days

11

Scag 43678

Swivel Joint, LH

$18.99

$

Usually ships in 2-12 days

12

Scag 43679

Swivel Joint, RH

$18.99

$

Usually ships in 2-12 days

13

Scag 04020-07

Nut, 1/2-13

$0.99

$

In Stock, only 3 left!

14

Scag 48114-04

Grease Fitting, 1/4-28 Self Tap

$1.49

$

In Stock, Qty 20+

15

Scag 04019-04

Nut, Serrated Flange 3/8-16

$0.99

$

In Stock, Qty 20+

16

Scag 04040-09

Flatwasher, 5/8-.656 x 1.312 x .095

$0.99

$

In Stock, Qty 12

17

Scag 04061-07

Cotter Pin, 3/16 x 1"

$1.49

$

In Stock, Qty 9

18

Scag 04001-20

Bolt, Hex Head 3/8-16 x 1-1/2"

$0.99

$

In Stock, Qty 20+

19

Scag 48540

Chain

(Superseded to 482628) 

$11.99

$

In Stock, only 3 left!

20

Scag 04003-40

Bolt, Carriage 7/16-14 x 1-1/4"

$1.49

$

In Stock, Qty 6

21

Scag 04040-07

Flatwasher, 1/2-.531 x 1.062 x .095

$0.99

$

In Stock, Qty 5

22

Scag 04021-11

Nut, Elastic Stop 7/16-11

$0.99

$

In Stock, Qty 10

23

Scag 04021-05

Nut, Center Lock 3/8-16

$0.99

$

In Stock, Qty 20+

24

Scag 43572

Spacer

$1.99

$

In Stock, Qty 5

25

Scag 04001-32

Bolt, Hex Head 3/8-16 x 1-1/4"

$0.99

$

In Stock, Qty 14

26

Scag 483177

Spring, Helper

$80.99

$

Usually ships in 2-12 days

27

Scag 424504

Foot Pedal, Height Adjustment

$14.99

$

In Stock, only 1 left!

28

Scag 04030-07

Lockwasher, 5/8" Spring

$1.49

$

In Stock, Qty 19

29

Scag 04105-01

Capscrew, 5/8-11 x 1-1/2"

(Superseded to 04108-04) 

$2.99

$

Usually ships in 2-12 days

30

Scag 04001-87

Bolt, Hex Head 1/2-13 x 4"

$2.99

$

In Stock, Qty 10

31

Scag 43873

Spacer, Deck Lift Pedal

$15.99

$

Usually ships in 2-12 days

32

Scag 04021-07

Nut, Elastic Stop 1/2-13

$0.99

$

In Stock, Qty 20+

33

Scag 482534

Linkage Assembly, Deck Lift

$85.99

$

Usually ships in 2-12 days

33

Scag 482624

Rod, Deck Lift

$10.99

$

Usually ships in 2-12 days

33

Scag 04020-28

Jam Nut, 1/2-20 LH Thread

$3.49

$

In Stock, Qty 8

33

Scag 481766

Rod End, 1/2-20 LH Female

$49.99

$

In Stock, only 1 left!

33

Scag 04020-27

Jam Nut, 1/2-20 RH Thread

$4.49

$

In Stock, Qty 5

33

Scag 481765

Rod End, 1/2-20 RH Female

$42.99

$

In Stock, only 1 left!

34

Scag 04050-10

Retaining Ring, 1/2" Ext. "E"

$0.99

$

In Stock, only 4 left!

35

Scag 43487

Pin, Deck Lift

$4.99

$

In Stock, only 1 left!

36

Scag 04001-09

Bolt, Hex Head 5/16-18 x 1"

$0.99

$

In Stock, Qty 20+

36

Scag 04030-03

Lockwasher, 5/16" Spring

$0.99

$

In Stock, Qty 20+

37

Scag 485570

Slide, Height Adjust

$42.99

$

Usually ships in 2-12 days

38

Scag 452408

Adjustment Bracket, Lower Cut Height

$67.99

$

Usually ships in 2-12 days

39

Scag 04059-01

Pin, Locking

$6.99

$

Usually ships in 2-12 days

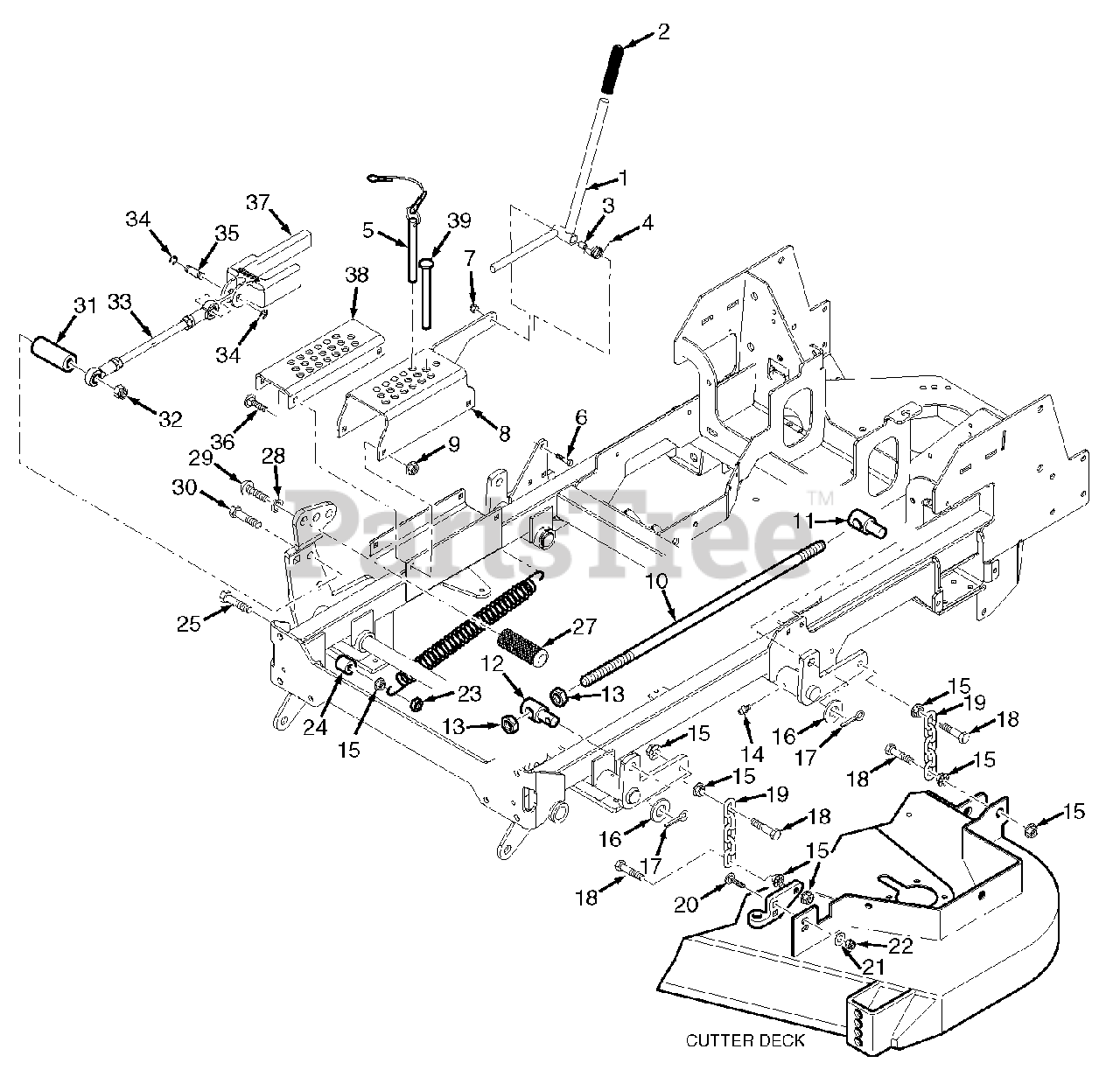

SCZ48V-23CV-EFI - Scag Cheetah 48" Zero-Turn Mower, 23hp Kohler (SN: L6200001 - L6299999) Cutter Deck Controlsols Parts Diagram

Cutter Deck Controlsols Parts Diagram
