SCZ48V-22FX - Scag Cheetah 48" Zero-Turn Mower, 22hp Kawasaki (SN: L6100001 - L6199999) Sheet Metal Components Parts Diagram

Cheetah 48" Zero-Turn Mower, 22hp Kawasaki

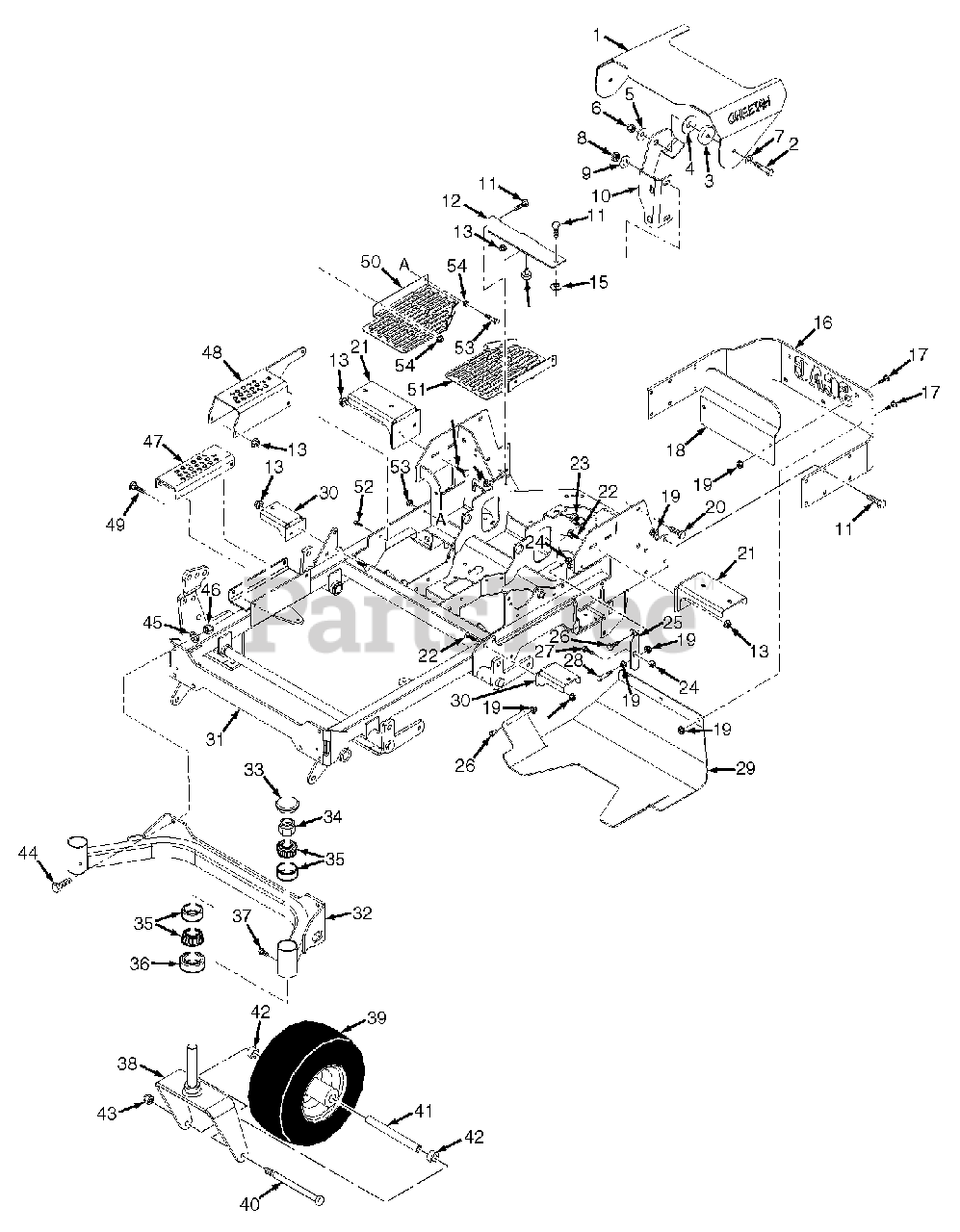

Sheet Metal Components Parts Diagram

  • Title

1

Scag 462504

Hood Assembly
(Superseded to 462838)

$206.99

$

Usually ships in 2-12 days

0

1

Scag 462556

Hood Assembly, EFI
(Superseded to 462838)

$206.99

$

Usually ships in 2-12 days

0

2

Scag 04001-21

Bolt, Hex Head 3/8-16 x 1-3/4"

$0.99

$

In Stock, Qty 20+

0

3

Scag 43740

Spacer, Hood

$28.99

$

Usually ships in 2-12 days

0

4

Scag 483471

Disk, Anti-Friction

$7.99

$

Usually ships in 2-12 days

0

5

Scag 04041-11

Flatwasher, 3/8-.406 x 1.50 x 7 Ga.

$1.99

$

In Stock, Qty 20+

0

6

Scag 04021-09

Nut, Elastic Stop 3/8-16

$0.99

$

In Stock, Qty 20+

0

7

Scag 04041-07

Flatwasher, 3/8-.391 x .938 x .105

$0.99

$

In Stock, Qty 20+

0

8

Scag 04021-09

Nut, Center Lock 1/2-13

$0.99

$

In Stock, Qty 20+

0

9

Scag 04040-13

Flatwasher, 1/2-.562 x 1.375 x .109

$0.99

$

In Stock, Qty 20+

0

10

Scag 425961

ROPS Mount, LH

$41.99

$

Usually ships in 2-12 days

0

10

Scag 425962

ROPS Mount, RH

$41.99

$

Usually ships in 2-12 days

0

11

Scag 04001-19

Bolt, Hex Head 3/8-16 x 1"

$0.99

$

In Stock, Qty 20+

0

12

Scag 425422

Cover, Battery Box

$21.99

$

Usually ships in 2-12 days

0

13

Scag 04019-03

Nut, Serrated Flange 5/16-18

$0.99

$

In Stock, Qty 20+

0

14

Scag 481581

Bumper, Rubber

$40.99

$

In Stock, only 2 left!

0

15

Scag 04024-02

Nut, Push-On 3/8 Thread

$1.49

$

In Stock, Qty 5

0

16

Scag 425725

Bumper, Rear

$

$

Not available

17

Scag 04003-23

Bolt, Carriage 3/8-16 x 1"

$1.49

$

In Stock, Qty 20+

0

18

Scag 425926

Guard, Engine

$

$

Not available

19

Scag 04019-04

Nut, Serrated Flange 3/8-16

$0.99

$

In Stock, Qty 20+

0

20

Scag 04001-70

Bolt, Hex Head 1/2-13 x 1-1/4"

$1.49

$

In Stock, Qty 5

0

21

Scag 425350

Mounting Bracket, Fuel Tank Rear

$45.99

$

Usually ships in 2-12 days

0

22

Scag 04003-12

Bolt, Carriage 5/16-18 x 3/4"

$0.99

$

In Stock, Qty 20+

0

23

Scag 04110-03

U-Nut, 3/8-16

$2.49

$

In Stock, Qty 20+

0

24

Scag 04021-09

Nut, Elastic Stop 3/8-16

$0.99

$

In Stock, Qty 20+

0

25

Scag 425907

Anchor Bracket, Pum Spring

$15.99

$

Usually ships in 2-12 days

0

26

Scag 04001-19

Bolt, Hex Head 3/8-16 x 1"

$0.99

$

In Stock, Qty 20+

0

27

Scag 04001-32

Bolt, Hex Head 3/8-16 x 1-1/4"

$0.99

$

In Stock, Qty 11

0

28

Scag 04001-136

Bolt, Hex Head 3/8-16 x 1-1/2" Grade 8

$0.99

$

In Stock, Qty 20+

0

29

Scag 425724

Plate, Skid

$116.99

$

Usually ships in 2-12 days

0

30

Scag 425862

Mounting Bracket, Fuel Tank Front

$

$

Not available

31

Scag 462562

Mainframe Assembly, w/Decals

$2270.99

$

Usually ships in 2-12 days

0

32

Scag 452284

Caster Weldment

$361.99

$

Usually ships in 2-12 days

0

33

Scag 484195

Cap, Grease

$2.49

$

In Stock, Qty 20+

0

34

Scag 04021-20

Nut, Elastic Stop 1"-14

$4.99

$

In Stock, Qty 20+

0

35

Scag 481657

Bearing w/Race
(Superseded to 48668)

$23.99

$

In Stock, Qty 20+

0

36

Scag 481025

Seal, 2" O.D. x 1.625 Bore

$4.99

$

In Stock, Qty 20+

0

37

Scag 482028-01

Plug, 1/4-28

$6.49

$

In Stock, only 3 left!

0

38

Scag 451658

Yoke Weldment

$111.99

$

In Stock, only 3 left!

0

39

Scag 9278

Caster Wheel Assembly

$191.99

$

In Stock, Qty 20+

0

39

Scag 482621

Bearing

$20.99

$

In Stock, Qty 20+

0

39

Scag 48114-10

Grease Fitting

$3.99

$

In Stock, Qty 12

0

40

Scag 04001-167

Bolt, Hex Head 1/2-13 x 9-1/2"

$5.99

$

In Stock, Qty 20+

0

41

Scag 43583

Sleeve, Caster Wheel

$13.99

$

In Stock, Qty 20+

0

42

Scag 43584

Spacer, Caster Wheel

$2.99

$

In Stock, Qty 20+

0

43

Scag 04021-07

Nut, Elastic Stop 1/2-13

$0.99

$

In Stock, Qty 20+

0

44

Scag 04001-28

Bolt, Hex Head 7/16-14 x 1-1/4"

$0.99

$

In Stock, Qty 12

0

45

Scag 04030-05

Lockwasher, 7/16" Spring

$0.99

$

In Stock, Qty 20+

0

46

Scag 04021-11

Nut, Elastic Stop 7/16-14

$0.99

$

In Stock, Qty 10

0

47

Scag 452408

Adjustment Bracket, Lower Cut Height

$65.99

$

Usually ships in 2-12 days

0

48

Scag 425737

Adjustment Bracket, Cutting Height

$

$

Not available

49

Scag 04001-09

Bolt, Hex Head 5/16-18 x 1"

$0.99

$

In Stock, Qty 20+

0

49

Scag 04030-03

Lockwasher, 5/16" Spring

$0.99

$

In Stock, Qty 20+

0

50

Scag 425747

Fan Cover, RH

$42.99

$

Usually ships in 2-12 days

0

51

Scag 425746

Fan Cover, LH

$42.99

$

Usually ships in 2-12 days

0

52

Scag 04001-01

Bolt, Hex Head 1/4-20 x 3/4"

$0.99

$

In Stock, Qty 20+

0

53

Scag 04001-59

Bolt, Hex Head 1/4-20 x 1-1/4"

$0.99

$

In Stock, Qty 15

0

54

Scag 04019-02

Nut, Serrated Flange 1/4-20

$0.99

$

In Stock, Qty 20+

0
