SCZ48V-22FX - Scag Cheetah 48" Zero-Turn Mower, 22hp Kawasaki (SN: L6100001 - L6199999) SCZ Steering Components Parts Diagram

Cheetah 48" Zero-Turn Mower, 22hp Kawasaki

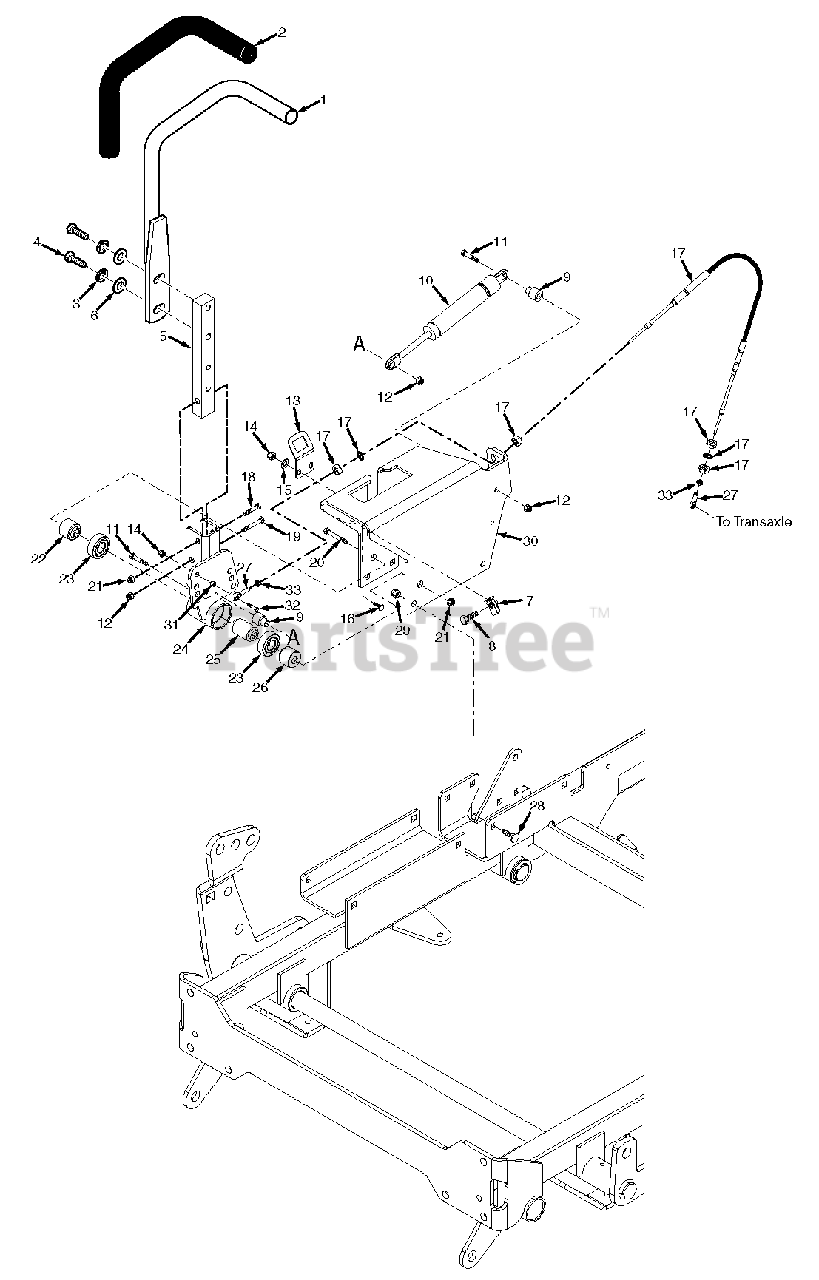

SCZ Steering Components Parts Diagram

  • Title

1

Scag 462401

Handle Bar w/Grip

$107.99

$

Usually ships in 2-12 days

0

2

Scag 484376

Grip, Control Handle

$11.99

$

Usually ships in 2-12 days

0

3

Scag 04030-04

Lockwasher, 3/8" Spring

$0.99

$

In Stock, Qty 8

0

4

Scag 04001-32

Bolt, Hex Head 3/8-16 x 1-1/4'

$0.99

$

In Stock, Qty 14

0

5

Scag 422372

Bar, Control Lever

$30.99

$

In Stock, only 2 left!

0

6

Scag 04041-07

Flatwasher, 3/8-.391 x .938 x .105

$0.99

$

In Stock, Qty 20+

0

7

Scag 04110-03

U-Nut, 3/8-16

$2.49

$

In Stock, Qty 20+

0

8

Scag 04107-04

Bolt, Hex Head 3/8-16 x 2" Special

$1.49

$

In Stock, Qty 8

0

9

Scag 43602

Spacer

$3.49

$

In Stock, only 1 left!

0

10

Scag 484193

Damper

$74.99

$

In Stock, only 1 left!

0

11

Scag 04001-11

Bolt, Hex Head 5/16-18 x 1-1/2"

$0.99

$

In Stock, Qty 6

0

12

Scag 04021-10

Nut, Elastic Stop 5/16-18

$0.99

$

In Stock, Qty 20+

0

13

Scag 425905

Bracket, Operator Presence Switch

$11.99

$

Usually ships in 2-12 days

0

14

Scag 04021-08

Nut, Elastic Stop 1/4-20

$0.99

$

In Stock, Qty 10

0

15

Scag 04040-14

Flatwasher, 1/4-.312 x .750 x .065

$0.99

$

In Stock, only 4 left!

0

16

Scag 04003-02

Bolt, Carriage 1/4-20 x 3/4"

$0.99

$

In Stock, Qty 20+

0

17

Scag 484485

Control Cable, Hydro

$124.99

$

Usually ships in 2-12 days

0

18

Scag 04001-45

Bolt, Hex Head 3/8-16 x 2"

$0.99

$

In Stock, Qty 9

0

19

Scag 04001-17

Bolt, Hex Head 5/16-18 x 2"

$0.99

$

In Stock, Qty 6

0

20

Scag 04001-23

Bolt, Hex Head 3/8-16 x 4-1/2"

$2.49

$

In Stock, Qty 7

0

21

Scag 04021-09

Nut, Elastic Stop 3/8-16

$0.99

$

In Stock, Qty 20+

0

22

Scag 43607

Spacer, Controls

$5.99

$

Usually ships in 2-12 days

0

23

Scag 48224

Bearing

$13.99

$

In Stock, Qty 20+

0

24

Scag 452406

Pivot Weldment, Control Arm LH

$60.99

$

Usually ships in 2-12 days

0

24

Scag 452407

Pivot Weldment, Control Arm RH

$64.99

$

Usually ships in 2-12 days

0

25

Scag 43600

Spacer, Bearing

$10.99

$

Usually ships in 2-12 days

0

26

Scag 43823

Spacer, Controls

$16.99

$

Usually ships in 2-12 days

0

27

Scag 484040

Rod End, 1/4-28 RH Thread

$18.99

$

Usually ships in 2-12 days

0

28

Scag 04003-04

Bolt,Carriage 5/16-18 x 1"

$0.99

$

In Stock, Qty 9

0

29

Scag 04019-03

Nut, Serrated Flange 5/16-18

$0.99

$

In Stock, Qty 20+

0

30

Scag 462561

Bracket Weldment, Control Lever RH w/Decal

$112.99

$

Usually ships in 2-12 days

0

30

Scag 462560

Bracket Weldment, Control Lever LH w/Decal

$112.99

$

Usually ships in 2-12 days

0

31

Scag 43827

Spacer

$4.99

$

Usually ships in 2-12 days

0

32

Scag 04001-59

Bolt, Hex Head 1/4-20 x 1-1/4"

$0.99

$

In Stock, Qty 6

0

33

Scag 04020-22

Nut, Jam 1/4-28 UNF

$

$

Currently unavailable
