SCZ-OCDC-52V (922M) - Scag Operator Controlled Discharge Chute STC/SCZ/STT/SVR - OCDC Parts Diagram

Operator Controlled Discharge Chute

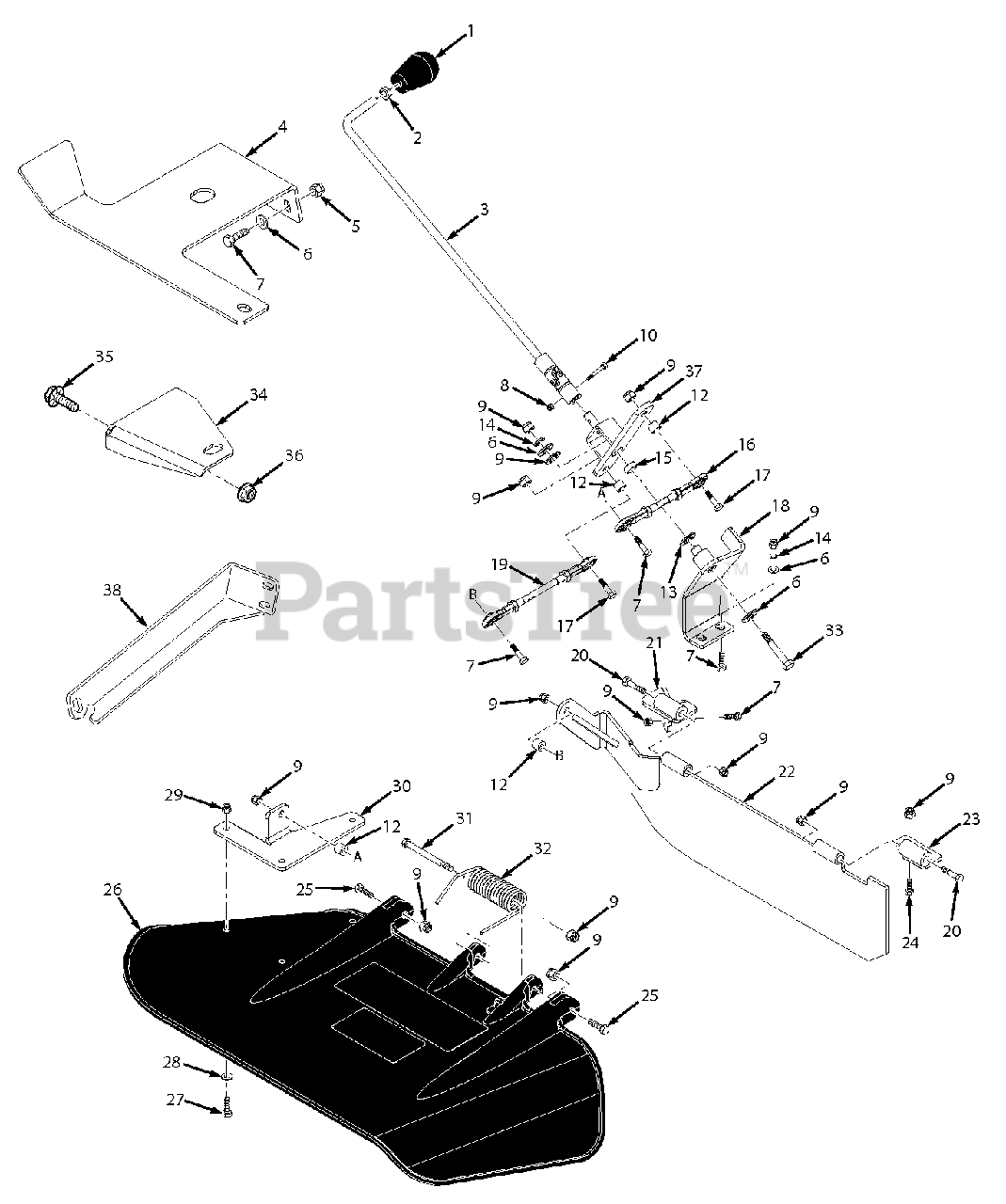

STC/SCZ/STT/SVR - OCDC Parts Diagram

  • Title

1

Scag 484093

Knob, Soft Touch

$12.99

$

Usually ships in 2-12 days

0

2

Scag 04020-12

Nut, 3/8-16 UNC Jam

$0.99

$

In Stock, only 3 left!

0

3

Scag 452135

Lever Weldment, OCDC (STC/SCZ & STT)

$157.99

$

Usually ships in 2-12 days

0

3

Scag 452413

Lever Weldment, OCDC (SVR)

$183.99

$

Usually ships in 2-12 days

0

4

Scag 426080

Bracket, Lever Support (SCZ-48V & SCZ-52V)
(Superseded to 427131)

$101.99

$

Usually ships in 2-12 days

0

4

Scag 425371

Bracket, Lever Support (STC-48V & STC-52V)

$95.99

$

Usually ships in 2-12 days

0

4

Scag 425429

Bracket, Lever Support (STC-61V)

$102.99

$

Usually ships in 2-12 days

0

4

Scag 426081

Bracket, Lever Support (SCZ-61V)

$66.99

$

Usually ships in 2-12 days

0

5

Scag 04019-03

Nut, Serrated Flange 5/16-18

$0.99

$

In Stock, Qty 20+

0

6

Scag 04040-15

Flatwasher, 5/16-.375 x .875 x .083

$0.99

$

In Stock, Qty 20+

0

7

Scag 04001-09

Bolt, Hex Head 5/16-18 x 1"

$0.99

$

In Stock, Qty 20+

0

8

Scag 04021-17

Nut, Elastic Stop #8-32

$0.99

$

In Stock, Qty 5

0

9

Scag 04021-10

Nut, Elastic Stop 5/16-18

$0.99

$

In Stock, Qty 20+

0

10

Scag 04015-20

Capscrew, Socket Head #8-32 x 1-1/4"

$6.49

$

Usually ships in 2-12 days

0

11

Scag 452132

Pivot Arm Weldment

$39.99

$

Usually ships in 2-12 days

0

12

Scag 43212

Sleeve

$4.49

$

In Stock, Qty 5

0

13

Scag 04045-01

Washer, Thrust 1/2" ID

$0.99

$

Usually ships in 2-12 days

0

14

Scag 04030-03

Lockwasher, 5/16" Spring

$0.99

$

In Stock, Qty 20+

0

15

Scag 483453-20

Bearing

$5.99

$

Usually ships in 2-12 days

0

16

Scag 484121

Linkage Assembly (SVR-48V)

$60.99

$

Usually ships in 2-12 days

0

16

Scag 484131

Linkage Assembly (STC/SVR-52V)

$51.99

$

Usually ships in 2-12 days

0

16

Scag 484002

Linkage Assembly (STC/SCZ-48V & SCZ/STT-52V)

$93.99

$

Usually ships in 2-12 days

0

16

Scag 483990

Linkage Assembly (STC/SVR-61V)

$78.99

$

Usually ships in 2-12 days

0

16

Scag 484119

Linkage Assembly (SCZ/STT-61V)

$60.99

$

Usually ships in 2-12 days

0

17

Scag 04001-11

Bolt, Hex Head 5/16-18 x 1-1/2"

$0.99

$

In Stock, Qty 6

0

18

Scag 452134

Pivot Weldment (SVR-48V, STC/SVR/SCZ/STT-52V)

$39.99

$

Usually ships in 2-12 days

0

18

Scag 452415

Pivot Weldment (STC/SCZ-48V)

$40.99

$

Usually ships in 2-12 days

0

18

Scag 452156

Pivot Weldment (STC/SVR-61V)

$35.99

$

Usually ships in 2-12 days

0

18

Scag 452173

Pivot Weldment (SCZ/STT-61V)

$35.99

$

Usually ships in 2-12 days

0

19

Scag 484119

Linkage Assembly (SVR-48V)

$60.99

$

Usually ships in 2-12 days

0

19

Scag 484121

Linkage Assembly (STC/SCZ-48V)

$60.99

$

Usually ships in 2-12 days

0

19

Scag 484129

Linkage Assembly, (STC/SVR-52V)

$60.99

$

Usually ships in 2-12 days

0

19

Scag 483990

Linkage Assembly (SCZ/STT-52V)

$78.99

$

Usually ships in 2-12 days

0

19

Scag 483989

Linkage Assembly (STC/SVR-61V)

$78.99

$

Usually ships in 2-12 days

0

19

Scag 484119

Linkage Assembly (SCZ/STT-61V)

$60.99

$

Usually ships in 2-12 days

0

20

Scag 04001-63

Bolt, Hex Head 5/16-18 x 3-1/2"

$1.49

$

Usually ships in 2-12 days

0

21

Scag 452082

Hinge Weldment, Rear (48V)

$25.99

$

Usually ships in 2-12 days

0

21

Scag 452079

Hinge Weldment, Rear (52V & 61V)

$60.99

$

Usually ships in 2-12 days

0

22

Scag 452083

Block-Off Plate Weldment (48V)

$109.99

$

Usually ships in 2-12 days

0

22

Scag 452084

Block-Off Plate Weldment (52V)

$139.99

$

Usually ships in 2-12 days

0

22

Scag 452080

Block-Off Plate Weldment (61V)

$127.99

$

Usually ships in 2-12 days

0

23

Scag 452078

Hinge Weldment, Front

$22.99

$

Usually ships in 2-12 days

0

24

Scag 04001-08

Bolt, Hex Head 5/16-18 x 3/4"

$0.99

$

In Stock, Qty 20+

0

25

Scag 04001-12

Bolt, Hex Head 5/16-18 x 1-3/4"

$0.99

$

In Stock, Qty 20+

0

26

Scag 462242

Discharge Chute Assy., 48V

Note: (incl. #9, 27, 28, 29, 30, 31, 32)

$

$

Currently unavailable

26

Scag 462249

Discharge Chute Assy., 52V
(Superseded to 462897)

Note: (incl. #9, 27, 28, 29, 30, 31, 32)

$150.99

$

Usually ships in 2-12 days

0

26

Scag 462250

Discharge Chute Assy., 61V
(Superseded to 462899)

Note: (incl. #9, 27, 28, 29, 30, 31, 32)

$213.99

$

Usually ships in 2-12 days

0

27

Scag 04001-01

Bolt, Hex Head 1/4-20 x 3/4"

$0.99

$

In Stock, Qty 18

0

28

Scag 04040-14

Flatwasher, 1/4-.312 x .750 x .065

$0.99

$

In Stock, only 4 left!

0

29

Scag 04021-08

Nut, Elastic Stop 1/4-20

$0.99

$

In Stock, Qty 9

0

30

Scag 425372

Plate, Discharge Chute (48V)

$

$

Currently unavailable

30

Scag 425427

Plate, Discharge Chute (52V)

$21.99

$

Usually ships in 2-12 days

0

30

Scag 425131

Plate, Discharge Chute (61V)

$23.99

$

Usually ships in 2-12 days

0

31

Scag 04001-154

Bolt, Hex Head 5/16-18 x 4-3/4"

$2.99

$

In Stock, Qty 20+

0

32

Scag 484124

Spring, Discharge Chute

$10.99

$

Usually ships in 2-12 days

0

33

Scag 04001-17

Bolt, Hex Head 5/16-18 x 2"

$0.99

$

In Stock, Qty 6

0

34

Scag 425481

Guide Bracket, OCDC Lever (STT-52V & STT-61V)

$26.99

$

Usually ships in 2-12 days

0

35

Scag 04017-16

Bolt, 5/16-18 x 3/4" Serrated Flange

$0.99

$

In Stock, Qty 10

0

36

Scag 04019-03

Nut, 5/16-18 Serrated Flange

$0.99

$

In Stock, Qty 20+

0

37

Scag 452132

Pivot Arm Weldment (SVR-48V/52V/61V, STC-52V/61V, SCZ-52V/61V, STT-52V/61V)

$39.99

$

Usually ships in 2-12 days

0

37

Scag 452414

Pivot Arm Weldment (STC/SCZ-48V)
(Superseded to 452797)

$50.99

$

Usually ships in 2-12 days

0

38

Scag 426077

Bracket, Lever Support (SVR)

$79.99

$

Usually ships in 2-12 days

0
