SCR48-27KA - Scag Cougar 48" Zero-Turn Mower, 27hp Kawasaki (SN: 6450001 - 6459999) Speed And Steering Controls Parts Diagram

Cougar 48" Zero-Turn Mower, 27hp Kawasaki

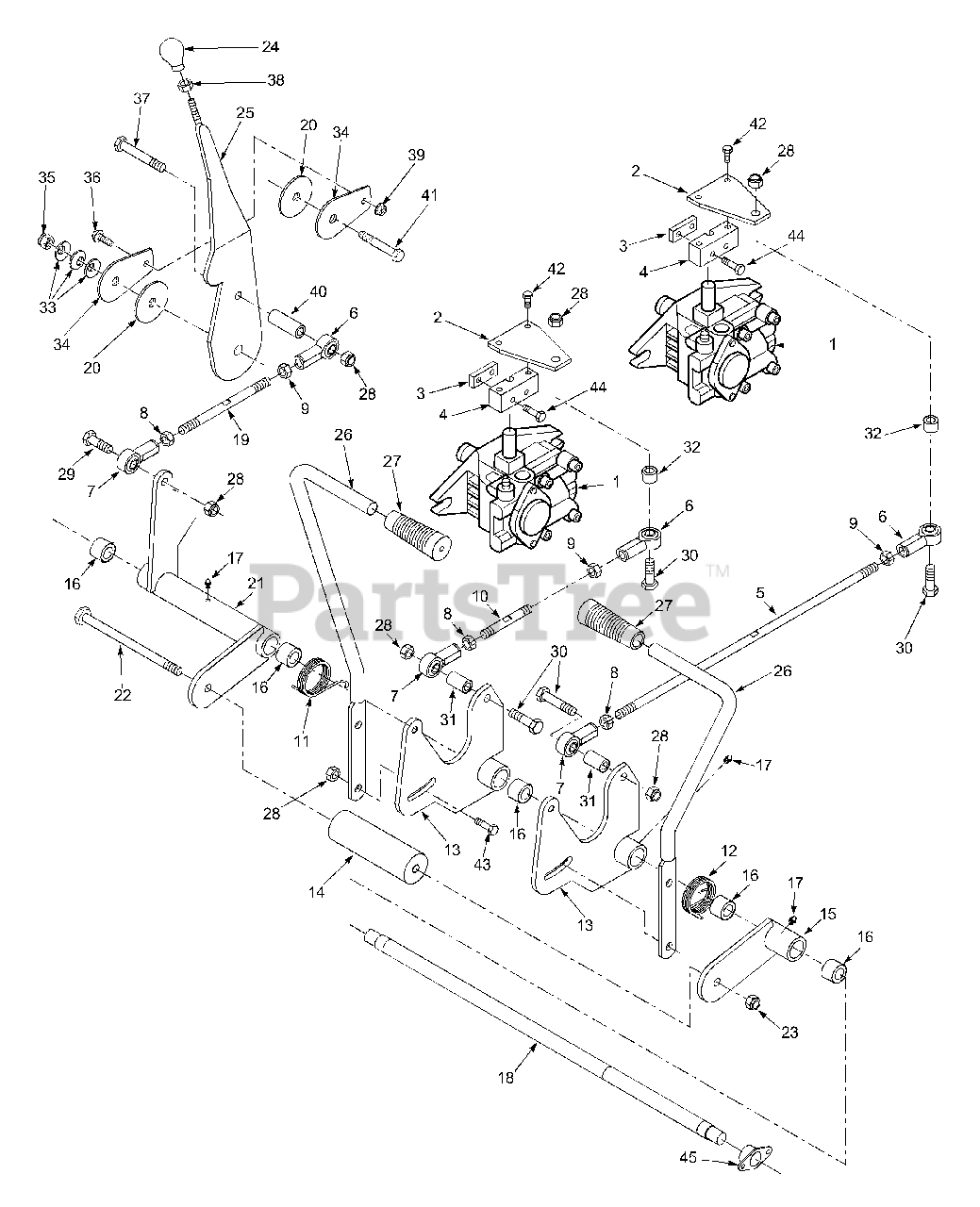

Speed And Steering Controls Parts Diagram

  • Title

1

Scag 48551

Pump, Hydraulic

$982.99

$

Usually ships in 2-12 days

0

2

Scag 422969

Lever, Pump

$8.49

$

Usually ships in 2-12 days

0

3

Scag 421203

Clamp, Pump Control

$18.99

$

Usually ships in 2-12 days

0

4

Scag 48829

Block, Pump Control

$21.99

$

In Stock, only 1 left!

0

5

Scag 482177

Rod, Threaded 3/8-24 x 14.675"

$23.99

$

Usually ships in 2-12 days

0

6

Scag 48464

Rod End, 3/8-24 RH Thread Female

$23.99

$

In Stock, only 1 left!

0

7

Scag 48544

Rod End, 3/8-24 LH Thread Female

$26.99

$

Usually ships in 2-12 days

0

8

Scag 04020-26

Nut, Jam 3/8-24 LH Thread

$1.99

$

In Stock, only 4 left!

0

9

Scag 04020-25

Nut, Jam 3/8-24 RH Thread

$0.99

$

In Stock, only 2 left!

0

10

Scag 482178

Rod, Threaded 3/8-24 x 2.925"

$20.99

$

Usually ships in 2-12 days

0

11

Scag 482060

Spring, Torsion RH

$26.99

$

Usually ships in 2-12 days

0

12

Scag 482059

Spring, Torsion LH

$26.99

$

Usually ships in 2-12 days

0

13

Scag 451183

Weldment, Steering Control
(Superseded to 49281)

$

$

Not available

14

Scag 43541

Spacer, Lever Stop

$

$

Not available

15

Scag 451181

Weldment, Speed Control LH

$

$

Currently unavailable

16

Scag 48100-06

Buching, .753 ID Sint.

$1.49

$

In Stock, only 1 left!

0

17

Scag 48114-04

Fitting, Grease 1/4-28

$0.99

$

In Stock, Qty 20+

0

18

Scag 43544

Shaft, Steering Lever

$

$

Not available

19

Scag 482176

Rod, Threaded 3/8-24 x 3.75"

$20.99

$

Usually ships in 2-12 days

0

20

Scag 481243

Disc, Friction

$

$

Not available

21

Scag 451182

Weldment, Speed Control RH

$

$

Currently unavailable

22

Scag 04001-100

Bolt, Hex Head 3/8-16 x 6"

$5.99

$

Usually ships in 2-12 days

0

23

Scag 04021-09

Locknut, 3/8-16 Elastic

$0.99

$

In Stock, Qty 20+

0

24

Scag 481245

Knob, Speed Control Lever

$8.49

$

Usually ships in 2-12 days

0

25

Scag 451298

Lever, Speed Control

$

$

Not available

26

Scag 422438

Lever, Steering

$

$

Currently unavailable

27

Scag 481477

Grip, Steering Lever

$4.49

$

In Stock, only 2 left!

0

28

Scag 04021-09

Nut, Elastic Stop 3/8-16

$0.99

$

In Stock, Qty 20+

0

29

Scag 04001-20

Bolt, Hex Head 3/8-16 x 1.5"

$0.99

$

In Stock, Qty 20+

0

30

Scag 04001-21

Bolt, Hex Head 3/8-16 x 1.75"

$0.99

$

In Stock, Qty 20+

0

31

Scag 43512

Spacer

$4.49

$

Usually ships in 2-12 days

0

32

Scag 43212

Spacer

$4.49

$

In Stock, Qty 5

0

33

Scag 04032-04

Washer, Belleville 5/8"

$

$

Not available

34

Scag 422198

Plate, Speed Selector

$

$

Not available

35

Scag 04021-13

Nut, Elastic Stop 5/8-11

$1.49

$

In Stock, Qty 20+

0

36

Scag 04017-18

Bolt, 5/16-18 x 1.25" Capscrew

$1.49

$

Usually ships in 2-12 days

0

37

Scag 04001-46

Bolt, Hex Head 3/8-16 x 2.25"

$0.99

$

In Stock, Qty 20+

0

38

Scag 04020-12

Nut, 3/8-16 Jam

$0.99

$

In Stock, only 3 left!

0

39

Scag 04019-03

Nut, 5/16-18 Serrated Flange

$0.99

$

In Stock, Qty 20+

0

40

Scag 43277

Spacer

$6.49

$

In Stock, only 1 left!

0

41

Scag 04001-122

Bolt, Hex Head 5/16-18 x 2.25"

$2.99

$

Usually ships in 2-12 days

0

42

Scag 04001-08

Bolt, Hex Head 5/16-18 x .75"

$0.99

$

In Stock, Qty 20+

0

43

Scag 04001-32

Bolt, Hex Head 3/8-16 x 1.25"

$0.99

$

In Stock, Qty 12

0

44

Scag 04001-59

Bolt, Hex Head 1/4-20 x 1.25"

$0.99

$

In Stock, Qty 5

0

45

Scag 48796

Bushing, Self-Aligning

$12.99

$

Usually ships in 2-12 days

0
