SCR48-25CH - Scag Cougar 48" Zero-Turn Mower, 25hp Kohler (SN: 6460001 - 6469999) Hopper Actuator Mechanism Parts Diagram

Cougar 48" Zero-Turn Mower, 25hp Kohler

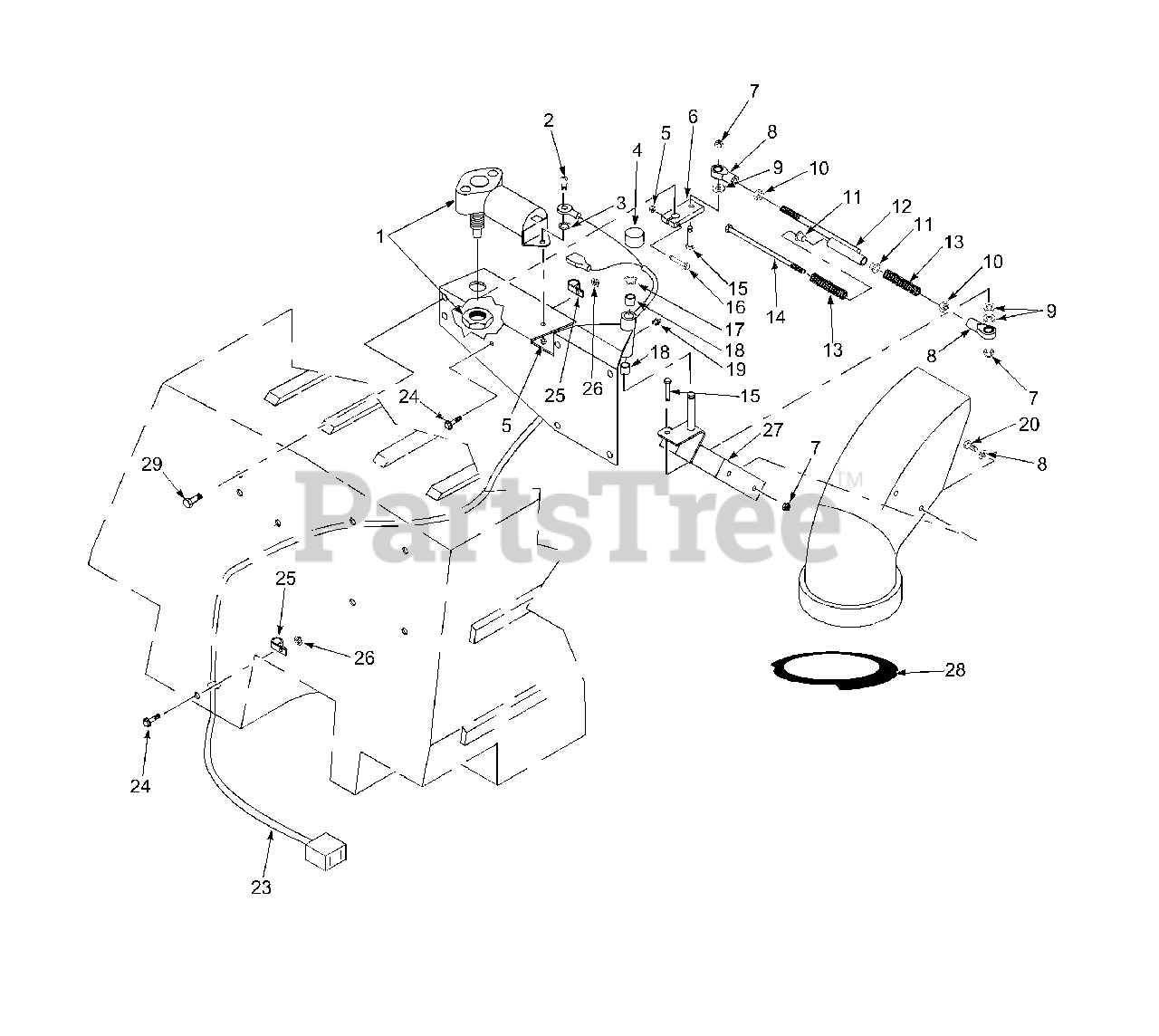

Hopper Actuator Mechanism Parts Diagram

  • Title
1

Scag 481254

Motor, Actuator

$592.99

$

Usually ships in 2-12 days

0

2

Scag 04015-05

Capscrew, Socket Head, #10-32 x 1/2"

$0.99

$

In Stock, Qty 5

0

3

Scag 04031-01

Washer, External

$0.99

$

In Stock, Qty 20+

0

4

Scag 481285

Cap, Plastic

$0.99

$

Usually ships in 2-12 days

0

5

Scag 04021-01

Hex Locknut, Elastic Stop, #10-32

$0.99

$

In Stock, Qty 10

0

6

Scag 481291

Lever, Actuator

$21.99

$

Usually ships in 2-12 days

0

7

Scag 04021-10

Hex Locknut, Elastic Stop, 5/16-18

$0.99

$

In Stock, Qty 20+

0

8

Scag 482072

Rod End, 5/16-24 R.H. Thread

$27.99

$

Usually ships in 2-12 days

0

9

Scag 04040-15

Flatwasher, 5/16 (.375 x .875 x .083)

$0.99

$

In Stock, Qty 20+

0

10

Scag 04020-13

Hex Nut, 5/16-18

$0.99

$

Usually ships in 2-12 days

0

11

Scag 481354

Bushing, Nylon

$3.99

$

Usually ships in 2-12 days

0

12

Scag 45799

Connecting Rod

$

$

Not available

13

Scag 481344

Spring, Connecting Rod

$

$

Not available

14

Scag 04001-124

Bolt, Hex Head, 5/16-18 x 7.00"

$3.99

$

Usually ships in 2-12 days

0

15

Scag 04001-10

Bolt, Hex Head, 5/16-18 x 1-1/4"

$0.99

$

In Stock, Qty 14

0

16

Scag 04015-08

Capscrew, Socket Head, #10-32 x 1-1/2"

$0.99

$

Usually ships in 2-12 days

0

17

Scag 04050-10

Retainer Ring

$0.99

$

In Stock, only 4 left!

0

18

Scag 48100-04

Bushing, Oilite, .502 ID

$0.99

$

In Stock, only 4 left!

0

19

Scag 48114-05

Grease Fitting

$1.49

$

In Stock, Qty 9

0

20

Scag 04001-08

Bolt, Hex Head, 5/16-18 x 3/4"

$0.99

$

In Stock, Qty 20+

0

?21

Scag 481253

Chute
(Superseded to 461475)

$142.99

$

Usually ships in 2-12 days

0

?22

Scag 45777

Actuator Mount
(Superseded to 46844)

$

$

Not available

23

Scag 482033

Wire Harness, Hopper

$43.99

$

Usually ships in 2-12 days

0

24

Scag 04003-02

Bolt, Carr. 1/4-20 x 3/4"

$0.99

$

In Stock, Qty 20+

0

25

Scag 48030-09

Clamp, Cable, 1/2"

$1.49

$

In Stock, Qty 5

0

26

Scag 04019-02

Serr. Fl. Hex Nut, 1/4-20

$0.99

$

In Stock, Qty 20+

0

27

Scag 45778

Pivot, Elbow

$

$

Not available

28

Scag 481408

Seal, Hopper Elbow

$9.99

$

Usually ships in 2-12 days

0

29

Scag 04006-01

Body Bolt, 5/16-18 x .81"

$0.99

$

In Stock, Qty 9

0
