SCR48-25CH - Scag Cougar 48" Zero-Turn Mower, 25hp Kohler (SN: 6460001 - 6469999) Blower Assembly Parts Diagram

Cougar 48" Zero-Turn Mower, 25hp Kohler

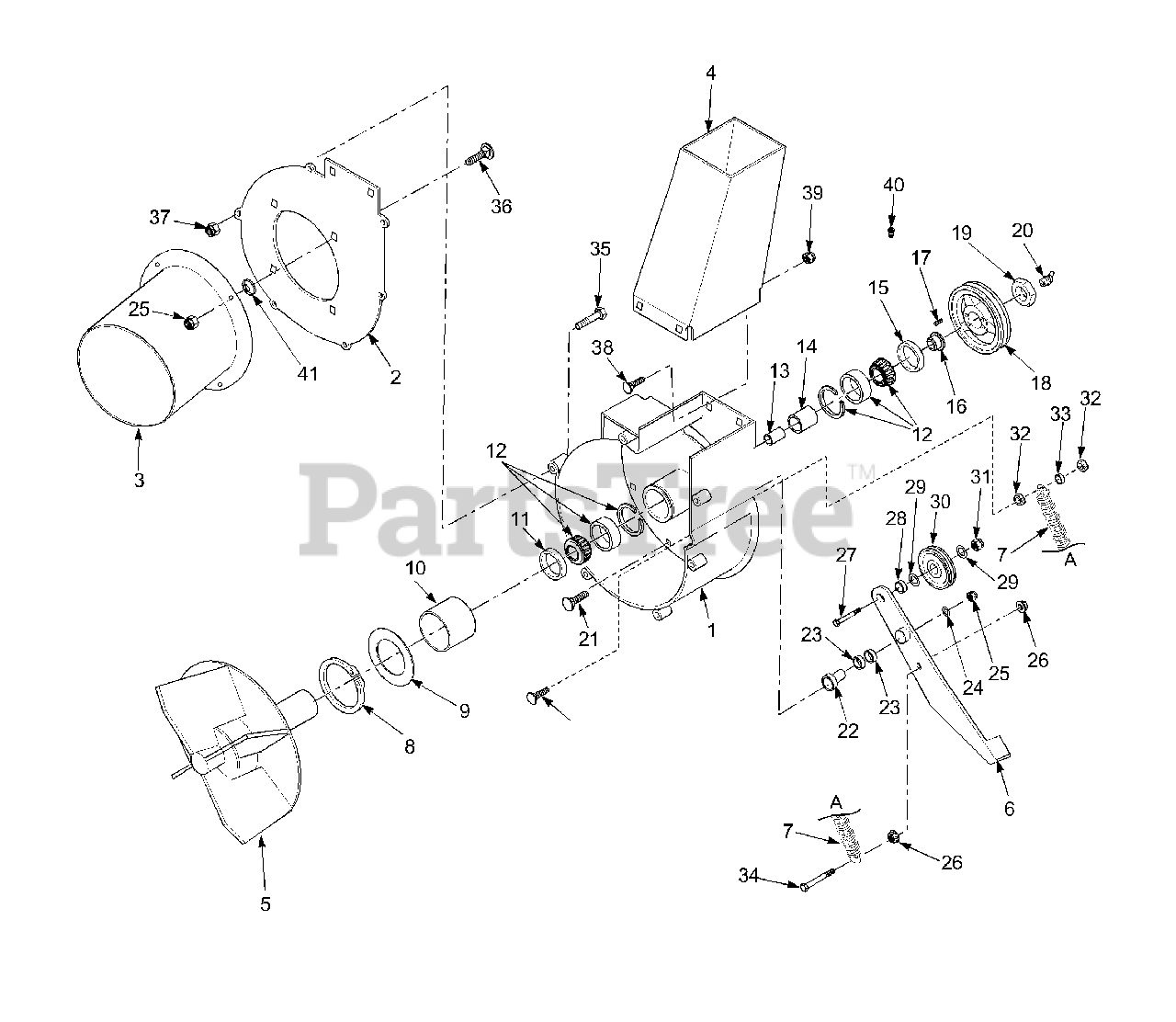

Blower Assembly Parts Diagram

  • Title

1

Scag 451202

Blower Housing, Rear

$1180.99

$

Usually ships in 2-12 days

0

2

Scag 422812

Blower Housing, Front

$108.99

$

Usually ships in 2-12 days

0

3

Scag 451116

Inlet

$137.99

$

In Stock, only 1 left!

0

4

Scag 461321

Outlet

$163.99

$

Usually ships in 2-12 days

0

5

Scag 451201

Fan

$975.99

$

Usually ships in 2-12 days

0

6

Scag 461326

Idler Arm, Weldment

Note: (Includes #22)

$129.99

$

Usually ships in 2-12 days

0

7

Scag 481995

Spring

$61.99

$

Usually ships in 2-12 days

0

8

Scag 04050-15

Ring, Retaining 2.5 ext.

$5.49

$

Usually ships in 2-12 days

0

9

Scag 421665

Washer, Retainer

$10.99

$

Usually ships in 2-12 days

0

10

Scag 48100-12

Bushing, Oilite 2.505 ID

$21.99

$

Usually ships in 2-12 days

0

11

Scag 481024

Seal, 2.00 OD x 1.50 Bore

$4.99

$

In Stock, Qty 20+

0

12

Scag 481022

Bearing Assembly

$61.99

$

In Stock, Qty 15

0

13

Scag 43296

Spacer, Inside

$8.49

$

In Stock, only 2 left!

0

14

Scag 43312

Spacer, Outside

$19.99

$

In Stock, only 1 left!

0

15

Scag 481025

Seal, 2.00 OD x 1.625 Bore

$4.99

$

In Stock, Qty 20+

0

16

Scag 43297

Bushing

$9.99

$

In Stock, only 2 left!

0

17

Scag 04063-21

Key, 1/4 x .874 Woodruff

$1.99

$

Usually ships in 2-12 days

0

18

Scag 481468

Pulley, 5.25 OD

$97.99

$

Usually ships in 2-12 days

0

19

Scag 481106

Nut, 1-1/16 - 18 LH Thread

$61.99

$

Usually ships in 2-12 days

0

20

Scag 48114-09

Grease Fitting, 65 degree angle

$5.49

$

Usually ships in 2-12 days

0

21

Scag 04003-21

Bolt, Carriage 3/8-16 x 2.5"

$2.49

$

Usually ships in 2-12 days

0

22

Scag 461326

Idler Arm w/pivot

$129.99

$

Usually ships in 2-12 days

0

23

Scag 48224

Bearing

$13.99

$

In Stock, Qty 20+

0

24

Scag 04043-04

Flatwasher 3/8"

$0.99

$

In Stock, Qty 20+

0

25

Scag 04021-09

Nut, Elastic Stop 3/8-16

$0.99

$

In Stock, Qty 20+

0

26

Scag 04019-04

Nut, Serr. Flng. 3/8-16

$0.99

$

In Stock, Qty 20+

0

27

Scag 04001-46

Bolt, HH 3/8-16 x 2.25"

$0.99

$

In Stock, Qty 20+

0

28

Scag 43282

Spacer

$7.99

$

In Stock, only 1 left!

0

29

Scag 04043-04

Flat Washer 3/8"

$0.99

$

In Stock, Qty 20+

0

30

Scag 482079

Pulley, 3.0" diameter
(Superseded to 483189)

$48.99

$

In Stock, only 1 left!

0

31

Scag 04021-09

Nut, Elastic Stop 3/8-16

$0.99

$

In Stock, Qty 20+

0

32

Scag 04019-04

Nut, Serr. Flng. 3/8-16

$0.99

$

In Stock, Qty 20+

0

33

Scag 43212

Spacer

$4.49

$

In Stock, Qty 5

0

34

Scag 04001-136

Bolt, HH 3/8-16 x 1.5"

$0.99

$

In Stock, Qty 20+

0

35

Scag 04001-11

Bolt, HH 5/16-18 x 1.5"

$0.99

$

In Stock, Qty 6

0

36

Scag 04003-23

Bolt, Carriage 3/8-16 x 1.0

$1.49

$

In Stock, Qty 20+

0

37

Scag 04021-10

Nut, Elastic Stop 5/16-18

$0.99

$

In Stock, Qty 20+

0

38

Scag 04003-06

Bolt, Carriage 1/4-20 x 1.0

$0.99

$

In Stock, Qty 6

0

39

Scag 04021-08

Nut, Elastic Stop 1/4-20

$0.99

$

In Stock, Qty 10

0

40

Scag 48677

Relief Fitting

$9.49

$

Usually ships in 2-12 days

0

41

Scag 04024-02

Push Nut, 3/8 Thread

$1.49

$

In Stock, Qty 5

0
