SCR48-25CH - Scag Cougar 48" Zero-Turn Mower, 25hp Kohler (SN: 5590001 - 5599999) Traction Drive Components Parts Diagram

Cougar 48" Zero-Turn Mower, 25hp Kohler

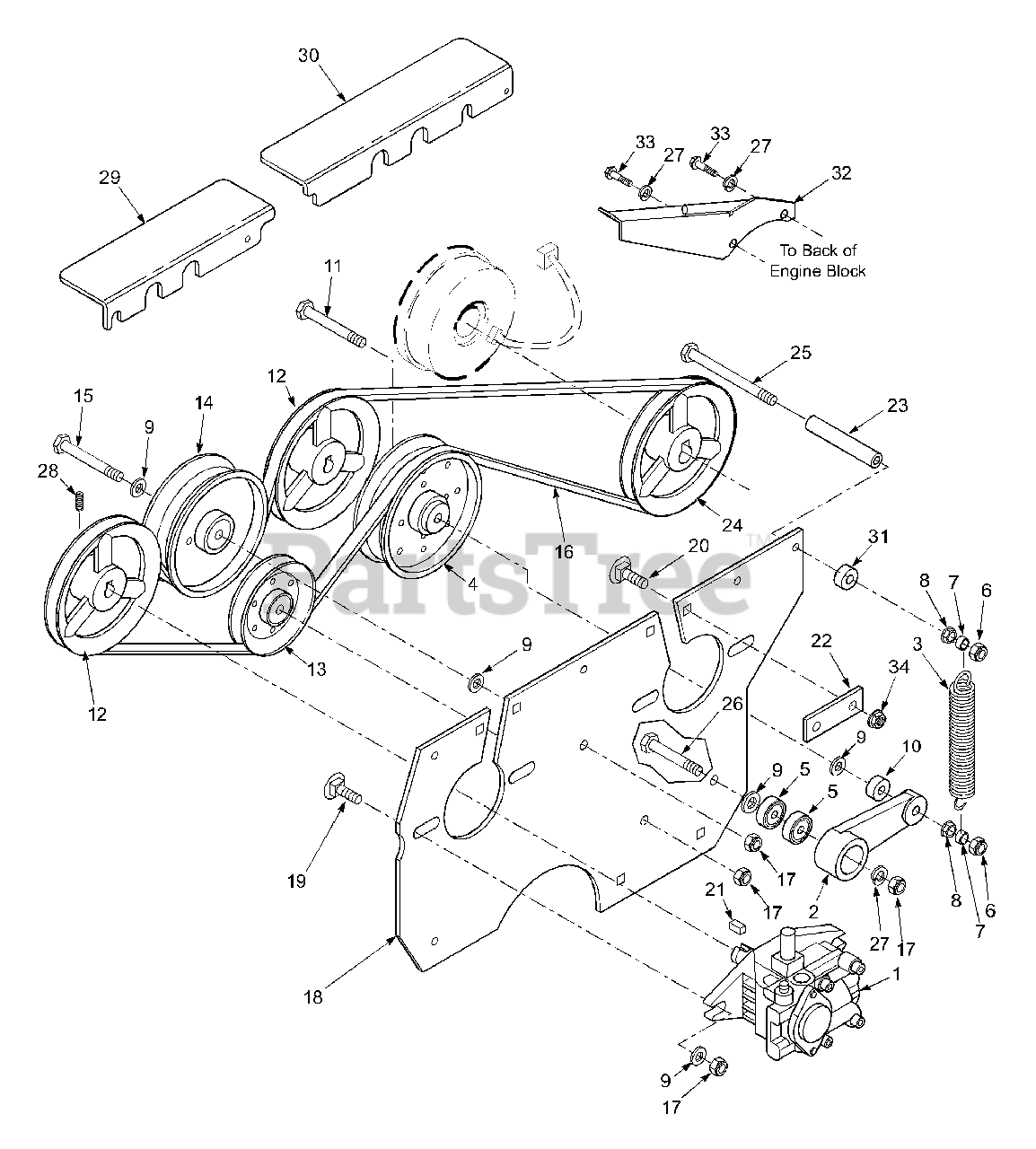

Traction Drive Components Parts Diagram

  • Title
1

Scag 48551

Pump, Hydraulic

$982.99

$

Usually ships in 2-12 days

0

2

Scag 481756

Idler, Arm
(Superseded to 461091)

$108.99

$

In Stock, only 3 left!

0

3

Scag 481994

Spring, Idler
(Superseded to 482717)

$47.99

$

Usually ships in 2-12 days

0

4

Scag 482135

Pulley, Idler

$47.99

$

Usually ships in 2-12 days

0

5

Scag 48224

Bearing, Idler Arm

$12.99

$

In Stock, Qty 20+

0

6

Scag 04021-05

Nut, 3/8-16 Center Lock

$0.99

$

In Stock, Qty 20+

0

7

Scag 43212

Spacer

$4.49

$

In Stock, Qty 5

0

8

Scag 04019-04

Nut, 3/8-16 Serrated Flange

$0.99

$

In Stock, Qty 20+

0

9

Scag 04043-04

Washer, Flat 3/8"

$0.99

$

In Stock, Qty 20+

0

10

Scag 43077

Spacer

$4.99

$

In Stock, only 1 left!

0

11

Scag 04001-160

Bolt, 3/8-16 x 3.0"

$3.99

$

Usually ships in 2-12 days

0

12

Scag 48586

Pulley, 5.45" OD
(Superseded to 482751)

$103.99

$

In Stock, only 4 left!

0

13

Scag 482062

Pulley, 4" OD
(Superseded to 483216)

$86.99

$

Usually ships in 2-12 days

0

14

Scag 48413

Pulley, 4" OD

$39.99

$

Usually ships in 2-12 days

0

15

Scag 04001-31

Bolt, Hex Head 3/8-16 x 2.5"

$0.99

$

In Stock, Qty 20+

0

16

Scag 481978

Belt, Pump Drive

$

$

Not available

17

Scag 04021-09

Nut, Elastic Stop 3/8-16

$0.99

$

In Stock, Qty 20+

0

18

Scag 422927

Plate, Pump Mounting

$

$

Not available

19

Scag 04003-05

Bolt, Carriage 3/8-16 x 1.5"

$0.99

$

In Stock, Qty 18

0

20

Scag 04003-12

Bolt, Carriage 5/16-18 x .75"

$0.99

$

In Stock, Qty 20+

0

21

Scag 04063-14

Key, 5mm x 5mm x 25mm

$0.99

$

In Stock, Qty 20+

0

22

Scag 422928

Plate, Keeper

$

$

Not available

23

Scag 43542

Spacer

$

$

Not available

24

Scag 481788

Pulley, 5.45" OD
(Superseded to 482791)

$108.99

$

Usually ships in 2-12 days

0

25

Scag 04001-100

Bolt, 3/8-16 x 6"

$5.99

$

Usually ships in 2-12 days

0

26

Scag 04001-31

Bolt, Hex Head 3/8-16 x 2.5"

$0.99

$

In Stock, Qty 20+

0

27

Scag 04030-04

Washer, Lock 3/8"

$0.99

$

In Stock, Qty 20+

0

28

Scag 04012-04

Setscrew, .312-18 Thread

$0.99

$

In Stock, Qty 20+

0

29

Scag 461317

Cover, Belt Front

$

$

Not available

30

Scag 461318

Cover, Belt Rear

$

$

Not available

31

Scag 43277

Spacer

$6.49

$

In Stock, Qty 11

0

32

Scag 451205

Heatshield

$

$

Not available

33

Scag 04001-19

Bolt, Carriage 3/8-16 x 1"

$0.99

$

In Stock, Qty 20+

0

34

Scag 04019-03

Nut, Serr. Flange 5/16-18

$0.99

$

In Stock, Qty 20+

0
