SCR48-25CH - Scag Cougar 48" Zero-Turn Mower, 25hp Kohler (SN: 5590001 - 5599999) Parking Brake Mechanism Parts Diagram

Cougar 48" Zero-Turn Mower, 25hp Kohler

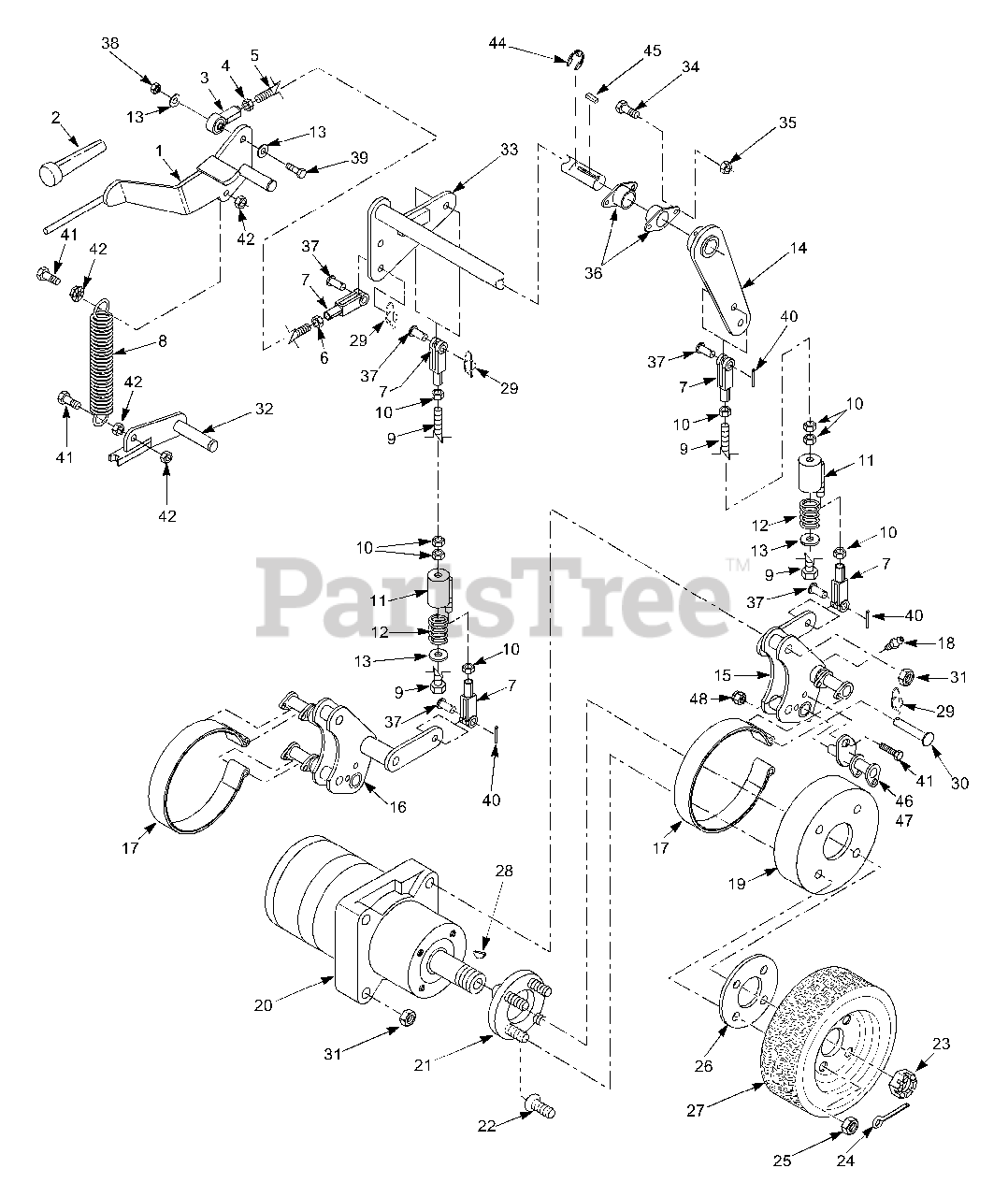

Parking Brake Mechanism Parts Diagram

  • Title

1

Scag 451261

Lever, Parking Brake
(Superseded to 461320)

$

$

Not available

2

Scag 482058

Grip, Parking Brake Lever

$12.99

$

Usually ships in 2-12 days

0

3

Scag 48544

Rod End, 3/8-24 LH

$26.99

$

Usually ships in 2-12 days

0

4

Scag 04020-17

Nut, 3/8-24 LH Thread

$2.49

$

In Stock, only 3 left!

0

5

Scag 04004-39

Rod, 3/8-24 x 9.5"

$

$

Not available

6

Scag 04020-14

Nut, 3/8-24 RH Thread

$0.99

$

In Stock, only 3 left!

0

7

Scag 48343-04

Clevis, 3/8-24

$16.99

$

In Stock, only 2 left!

0

8

Scag 481990

Spring

$18.99

$

Usually ships in 2-12 days

0

9

Scag 04001-162

Bolt, Hex Head 3/8-24 x 8.25"

$

$

Not available

10

Scag 04020-14

Nut, 3/8-24

$0.99

$

In Stock, only 3 left!

0

11

Scag 451260

Weldment, Brake Rod

$

$

Not available

12

Scag 48807

Spring

$32.99

$

Usually ships in 2-12 days

0

13

Scag 04041-07

Flatwasher, 3/8"

$0.99

$

In Stock, Qty 20+

0

14

Scag 451224

Weldment, Brake

$

$

Not available

15

Scag 451258

Weldment, Brake Linkage

$

$

Not available

16

Scag 451259

Weldment, Brake Linkage
(Superseded to 461470)

$289.99

$

In Stock, only 1 left!

0

17

Scag 481601

Band, Brake

$59.99

$

In Stock, only 1 left!

0

18

Scag 48114-05

Fitting, Grease

$1.49

$

In Stock, Qty 9

0

19

Scag 48589

Drum, Brake
(Superseded to 48513)

$

$

Not available

20

Scag 481529

Motor, Hydraulic Wheel
(Superseded to 482639)

$955.99

$

In Stock, only 1 left!

0

21

Scag 46929

Hub, Wheel

$173.99

$

In Stock, only 1 left!

0

22

Scag 04008-01

Stud, Wheel Mounting 1/2-20

$3.49

$

In Stock, Qty 20+

0

23

Scag 48680

Nut, Castle 1.0-20 UNF

$16.99

$

In Stock, only 3 left!

0

24

Scag 04061-06

Pin, Cotter 9/16" x 1.5"

$0.99

$

In Stock, Qty 11

0

25

Scag 04028-01

Nut, Lug 1/2-20

$1.49

$

In Stock, Qty 14

0

26

Scag 422487

Spacer, Wheel

$31.99

$

Usually ships in 2-12 days

0

27

Scag 482044

Wheel Assy 23 x 9.50-12
(Superseded to 484105)

$434.99

$

Usually ships in 2-12 days

0

Scag 481659

Rim W/Valve Stem

$137.99

$

In Stock, only 1 left!

0

Scag 482194

Tire, 23 x 9.50-12
(Superseded to 484104)

$322.99

$

In Stock, only 1 left!

0

28

Scag 04063-25

Key, Woodruff 5/16 x 1"

$2.99

$

In Stock, Qty 10

0

29

Scag 04069-01

Pin, Rue Cotter 3/8" Diameter

$1.49

$

In Stock, only 4 left!

0

30

Scag 04064-03

Pin, Clevis 3/8" Diameter x 2"

$2.99

$

In Stock, only 2 left!

0

31

Scag 04021-19

Locknut, Hex 1/2-13 Center Lock

$0.99

$

In Stock, Qty 5

0

32

Scag 451179

Weldment, Deck Stop

$

$

Not available

33

Scag 451257

Weldment, Brake Shaft

$

$

Not available

34

Scag 04001-08

Bolt, Hex Head 5/16-18 x .75"

$0.99

$

In Stock, Qty 20+

0

35

Scag 04021-10

Nut, Elastic Stop 5/16-18

$0.99

$

In Stock, Qty 20+

0

36

Scag 482061

Bushing, Self-Aligning

$15.99

$

Usually ships in 2-12 days

0

37

Scag 04064-02

Pin, Clevis 3/8 x 1.06"

$1.49

$

In Stock, only 3 left!

0

38

Scag 04021-09

Nut, Elastic Stop 3/8-16

$0.99

$

In Stock, Qty 20+

0

39

Scag 04001-20

Bolt, Hex Head 3/8-16 x 1.5"

$0.99

$

In Stock, Qty 20+

0

40

Scag 04061-02

Pin, Cotter 3/32 x .75"

$0.99

$

In Stock, Qty 11

0

41

Scag 04001-09

Bolt, Hex Head 5/16-18 x 1"

$0.99

$

In Stock, Qty 20+

0

42

Scag 04019-03

Nut, Serrated Flange 5/16-18

$0.99

$

In Stock, Qty 20+

0

?43

Scag 04021-04

Nut, Elastic Stop 5/16-18

$0.99

$

In Stock, Qty 20+

0

44

Scag 04050-12

E-Clip, .875"

$0.99

$

Usually ships in 2-12 days

0

45

Scag 04063-20

Key, 1/4 x 1/4 x 1"

$1.49

$

In Stock, Qty 5

0

46

Scag 451073

Brake Linkage Weldment, LH

$70.99

$

Usually ships in 2-12 days

0

47

Scag 451074

Brake Linkage Weldment, RH

$

$

Not available

48

Scag 04021-10

Nut, Elastic Stop 5/16-18

$0.99

$

In Stock, Qty 20+

0
