SCR48-25CH - Scag Cougar 48" Zero-Turn Mower, 25hp Kohler (SN: 5590001 - 5599999) Cutter Deck Support Components Parts Diagram

Cougar 48" Zero-Turn Mower, 25hp Kohler

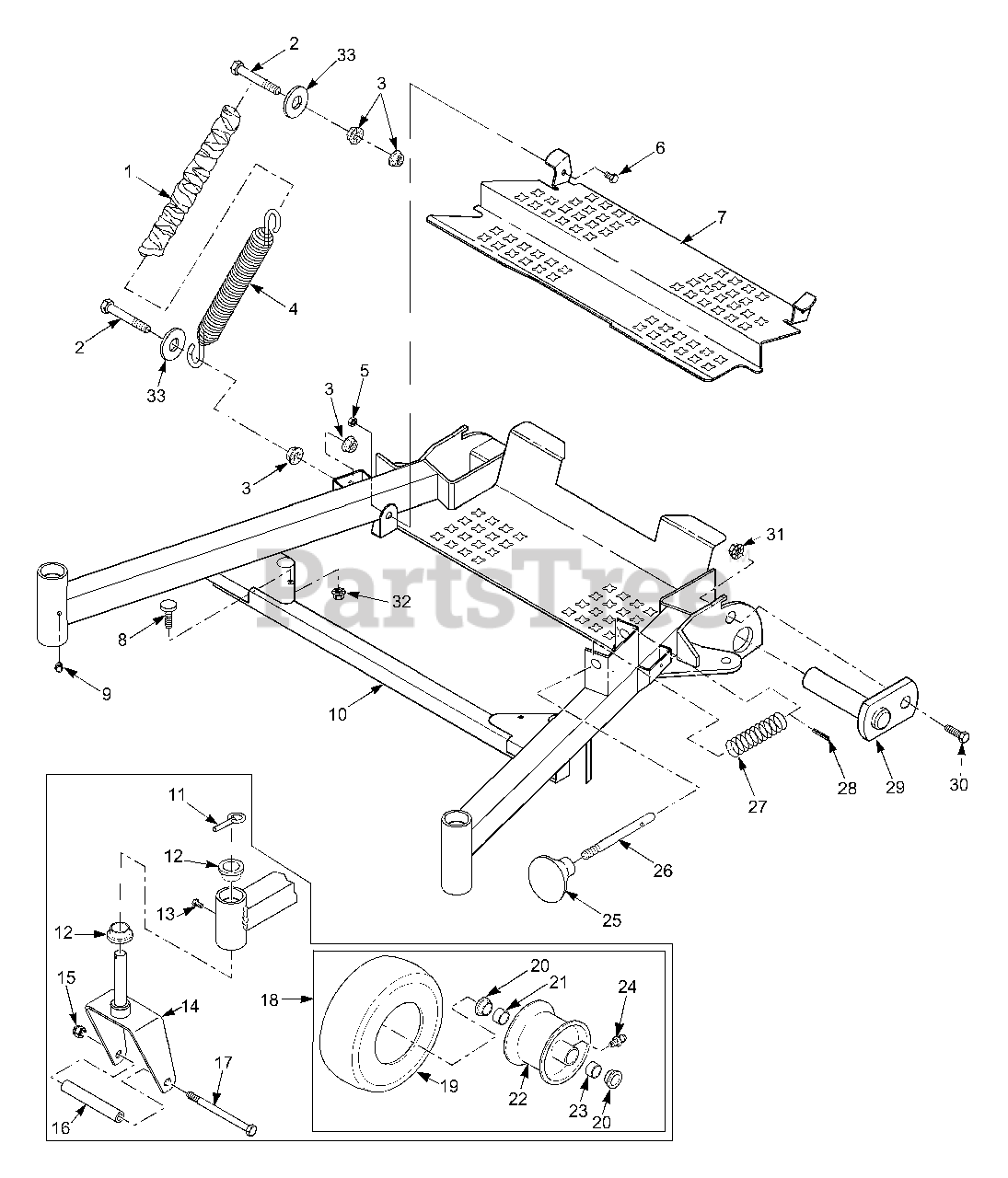

Cutter Deck Support Components Parts Diagram

  • Title

1

Scag 482078

Cover, Spring

$26.99

$

Usually ships in 2-12 days

0

2

Scag 04001-52

Bolt, Hex Head 1/2-13 x 2.5"

$1.99

$

Usually ships in 2-12 days

0

3

Scag 04019-06

Nut, 1/2-13 Serrated Flange

$0.99

$

In Stock, Qty 10

0

4

Scag 481993

Spring, Cutter Deck LIft

$18.99

$

Usually ships in 2-12 days

0

5

Scag 04021-09

Nut, 3/8-16 Elastic Stop

$0.99

$

In Stock, Qty 20+

0

6

Scag 04001-19

Bolt, Hex Head 3/8-16 x 1"

$0.99

$

In Stock, Qty 7

0

7

Scag 422775

Footplate
(Superseded to 423234)

$206.99

$

Usually ships in 2-12 days

0

8

Scag 481284

Bumper, Rubber

$16.99

$

In Stock, only 3 left!

0

9

Scag 48114-04

Fitting, Grease

$1.49

$

In Stock, Qty 20+

0

10

Scag 451196

Frame, Cutter Deck Mounting
(Superseded to 451476)

$1117.99

$

Usually ships in 2-12 days

0

11

Scag 04066-01

Pin, Quick

$8.99

$

In Stock, Qty 7

0

12

Scag 48100-17

Bushing, 1" ID Oilite
(Superseded to 48100-08)

$5.49

$

In Stock, Qty 6

0

13

Scag 482028-01

Plug, 1/4-28

$6.49

$

In Stock, only 3 left!

0

14

Scag 45325

Yoke, Caster

$232.99

$

Usually ships in 2-12 days

0

15

Scag 04021-07

Nut, 1/2-13 Elastic Stop

$0.99

$

In Stock, Qty 20+

0

16

Scag 43511

Spacer

$15.99

$

In Stock, only 1 left!

0

17

Scag 04001-80

Bolt, Hex Head 1/2-13 x 6.5"

$5.99

$

In Stock, Qty 20+

0

18

Scag 481843

Wheel, Caster 11 x 4.0-5

Note: (Includes items #19 through #24)

$131.99

$

Usually ships in 2-12 days

0

19

Scag 482192

Tire, 11 x 4.0-5

$151.99

$

Usually ships in 2-12 days

0

20

Scag 481770

Retainer

$4.99

$

In Stock, Qty 20+

0

21

Scag 481846

Roller Bearing .625 x 3.25"

$19.99

$

In Stock, only 2 left!

0

22

Scag 481844

Rim, 5.0 x 3.25"

$148.99

$

Usually ships in 2-12 days

0

23

Scag 481846

Roller Bearing .625 x 1.0"

$19.99

$

In Stock, only 2 left!

0

24

Scag 48114-05

Fitting, Grease

$1.49

$

In Stock, Qty 9

0

25

Scag 481245

Knob, Cutter Deck Release

$8.99

$

Usually ships in 2-12 days

0

26

Scag 43543

Rod, Threaded

$

$

Not available

27

Scag 481992

Spring

$8.99

$

Usually ships in 2-12 days

0

28

Scag 04060-08

Pin, Roll 3/16 x 1.5"

$0.99

$

In Stock, only 2 left!

0

29

Scag 451199

Pin, Deck Frame Pivot

$94.99

$

Usually ships in 2-12 days

0

30

Scag 04003-04

Bolt, Carriage 5/16-18 x 1"

$0.99

$

In Stock, Qty 9

0

31

Scag 04021-10

Nut, 5/16-18 Elastic Stop

$0.99

$

In Stock, Qty 20+

0

32

Scag 04019-03

Nut, 5/16-18 Serrated Flange

$0.99

$

In Stock, Qty 20+

0

33

Scag 04040-10

Flatwasher, 5/8-.688 x 1.750 x .134

$0.99

$

In Stock, Qty 11

0
