SCR42-25CH - Scag Cougar 42" Zero-Turn Mower, 25hp Kohler (SN: 7530001 - 7539999) Kohler Electrical System Parts Diagram

Cougar 42" Zero-Turn Mower, 25hp Kohler

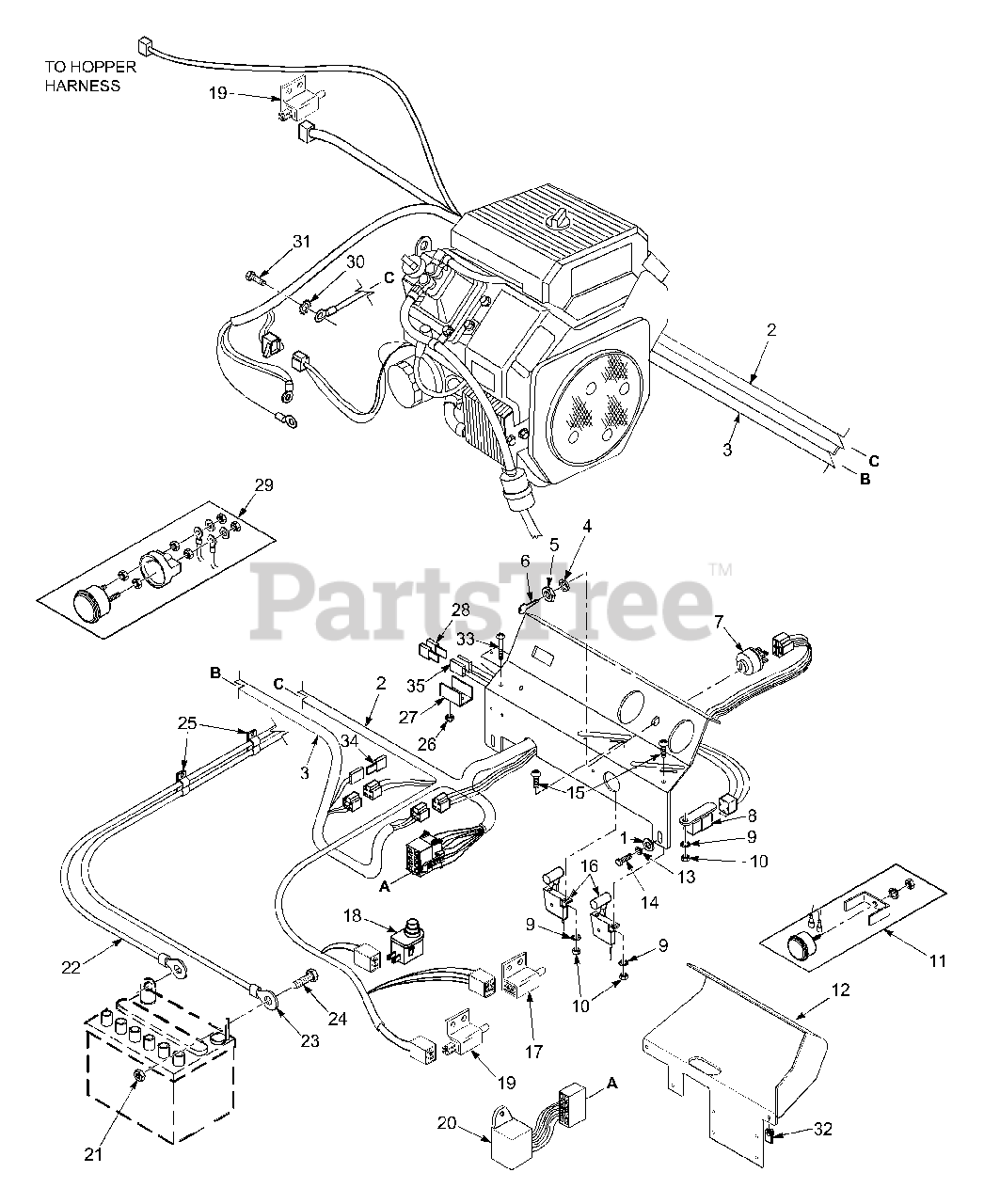

Kohler Electrical System Parts Diagram

  • Title

1

Scag 04040-15

Flatwasher, 5/16-.375 x .875 x .083

$0.99

$

In Stock, Qty 20+

0

2

Scag 482318

Wire Harness, SCR

$319.99

$

Usually ships in 2-12 days

0

3

Scag 482319

Wire Harness, Hopper

$

$

Not available

4

Scag 48017-03

Lockwasher, Internal 5/8"

$0.99

$

In Stock, Qty 6

0

5

Scag 48017-04

Nut, 5/8-32 Special

$1.49

$

In Stock, Qty 5

0

6

Scag 48017-02

Key & Ring

Note: (Includes 2 keys)

$3.99

$

In Stock, Qty 9

0

7

Scag 48798

Keyswitch w/hardware

$27.99

$

In Stock, Qty 20+

0

8

Scag 48788

Relay

$28.99

$

In Stock, only 2 left!

0

9

Scag 04031-01

Lockwasher, #10 external tooth

$0.99

$

In Stock, Qty 20+

0

10

Scag 04020-01

Nut, #10-32 UNF

$8.99

$

In Stock, Qty 20+

0

11

Scag 48023

Hour Meter

$157.99

$

Usually ships in 2-12 days

0

12

Scag 451185

Instrument Panel, Lower

$

$

Not available

13

Scag 04030-03

Lockwasher, 5/16

$0.99

$

In Stock, Qty 20+

0

14

Scag 04001-09

Bolt, Hex Head 5/16-18 x 1"

$0.99

$

In Stock, Qty 20+

0

15

Scag 04010-01

Screw, #10-32 x 1/2"

$0.99

$

In Stock, Qty 20+

0

16

Scag 482032

Control Cable

$32.99

$

In Stock, Qty 20+

0

17

Scag 481545

Switch, PTO

$16.99

$

In Stock, only 2 left!

0

18

Scag 481638

Switch, Seat

$15.99

$

In Stock, Qty 20+

0

19

Scag 481637

Switch, Brake & Hopper

$9.99

$

In Stock, Qty 20+

0

20

Scag 482313

Interlock Module
(Superseded to 483599)

$133.99

$

In Stock, Qty 20+

0

21

Scag 04020-02

Nut, 1/4-20

$0.99

$

In Stock, Qty 10

0

22

Scag 48029-19

Battery Cable, Black

$24.99

$

Usually ships in 2-12 days

0

23

Scag 48029-20

Battery Cable, Red

$24.99

$

Usually ships in 2-12 days

0

24

Scag 04001-44

Bolt, Hex Head 1/4-20 x 1/2"

$0.99

$

In Stock, Qty 6

0

25

Scag 48030-18

Cable Clamp, Double

$

$

Not available

26

Scag 04021-01

Nut, Elastic Stop #10

$0.99

$

In Stock, Qty 10

0

27

Scag 42413

Bracket, Fuse Holder

$40.99

$

Usually ships in 2-12 days

0

28

Scag 48298

Fuse, 20 Amp

$3.99

$

Usually ships in 2-12 days

0

29

Scag 481755

Ammeter
(Superseded to 487596)

$64.99

$

Usually ships in 2-12 days

0

30

Scag 04030-04

Lockwasher, 3/8"

$0.99

$

In Stock, Qty 8

0

31

Scag 04001-18

Bolt, Hex Head

$0.99

$

In Stock, Qty 5

0

32

Scag 04110-02

U-Nut, 5/16-18

$3.49

$

Usually ships in 2-12 days

0

33

Scag 04010-11

Screw, #10-32 x 1-1/2"

$0.99

$

Usually ships in 2-12 days

0

34

Scag 482157

Fuse, 15 Amp

$

$

Currently unavailable

35

Scag 48430

Fuse Holder W/Fuse & Connector

$14.99

$

In Stock, only 1 left!

0
