SCR42-25CH - Scag Cougar 42" Zero-Turn Mower, 25hp Kohler (SN: 7530001 - 7539999) Hydraulic Pump Parts Diagram

Cougar 42" Zero-Turn Mower, 25hp Kohler

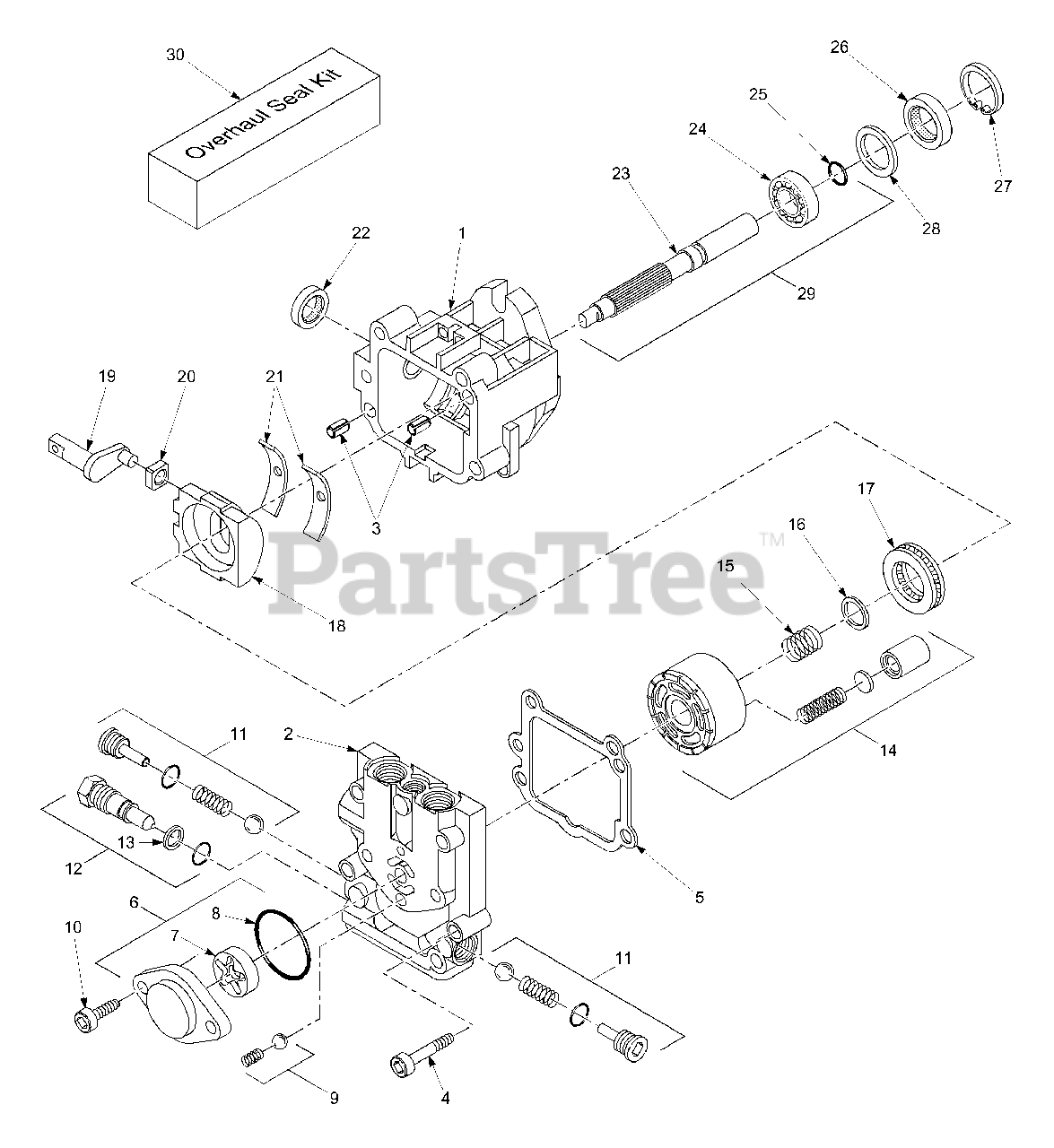

Hydraulic Pump Parts Diagram

  • Title

1

Scag HG2510065

Housing Kit

Note: (Includes Housing, Journal Bearing)

$

$

Not available

2

Scag HG2510066

End Cap
(Superseded to HG71770)

$

$

Not available

3

Scag HG50641

Straight Headless Pin

$

$

Not available

4

HG51055

Hex Head Screw 5/16-18x1.0

$

$

Not available

5

Scag HG2003067

End Cap O-Ring

$3.49

$

Usually ships in 2-12 days

0

6

Scag HG2513027

Charge Pump Kit

Note: (Includes Charge Cover, Gerotor Assy., O-Ring)

$159.99

$

Usually ships in 2-12 days

0

7

Scag HG50273

Gerotor Assembly

$

$

Not available

8

Scag HG9004100-1430

O-Ring, Charge Pump Cover

$1.99

$

Usually ships in 2-12 days

0

9

Scag HG2510011

Charge Relief Valve Kit

$4.99

$

In Stock, only 1 left!

0

10

Scag HG50633

Socket Head Screw

$6.99

$

Usually ships in 2-12 days

0

11

Scag HG2510027

Check Valve Kit

Note: (Includes Check Plug, Spring, O-Ring, Orifice Check Valve)

$44.99

$

Usually ships in 2-12 days

0

12

Scag HG2513030

Bypass Valve Kit

Note: (Includes Bypass Valve, O-Ring, Back-up Ring)

$43.99

$

Usually ships in 2-12 days

0

13

Scag HG9006110-0120

Backup Ring

$1.99

$

Usually ships in 2-12 days

0

14

Scag HG70331

Cylinder Block Kit

$108.99

$

Usually ships in 2-12 days

0

15

Scag HG2003014

Block Spring

$

$

Not available

16

Scag HG2003017

Block Thrust Washer

$

$

Not available

17

Scag HG2003044

Roller Thrust Bearing
(Superseded to HG50551)

$24.99

$

Usually ships in 2-12 days

0

18

Scag HG2003087

Swash Plate

$

$

Not available

19

Scag HG2003005

Trunnion Arm

$

$

Not available

20

Scag HG2000015

Guide Slot

$7.49

$

Usually ships in 2-12 days

0

21

Scag HG2003023

Cradle Bearing
(Superseded to HG52619)

$16.99

$

In Stock, only 1 left!

0

22

Scag HG9008000-0126

Lip Seal

$2.99

$

Usually ships in 2-12 days

0

23

Scag HG2003020

Pump Shaft

$

$

Not available

24

Scag HG2003043

Ball Bearing

$28.99

$

Usually ships in 2-12 days

0

25

Scag HG2003016

Retaining Ring

$2.49

$

Usually ships in 2-12 days

0

26

Scag HG9008000-0128

Lip Seal

$5.49

$

In Stock, only 2 left!

0

27

Scag HG2003052

Retaining Ring

$2.49

$

In Stock, only 1 left!

0

28

Scag HG2003018

Spacer

$2.49

$

Usually ships in 2-12 days

0

29

Scag HG2513038

Shaft Kit

Note: (Includes Pump Shaft, Ball Bearing, Retaining Ring)

$145.99

$

Usually ships in 2-12 days

0

30

Scag HG2513018

Overhaul Seal Kit

Note: (Includes Gasket, Trunnion Seal, Input Shaft Seal, Charge Pump O-Ring)

$40.99

$

In Stock, only 1 left!

0
