SCR42-25CH - Scag Cougar 42" Zero-Turn Mower, 25hp Kohler (SN: 6430001 - 6439999) Hopper Parts Diagram

Cougar 42" Zero-Turn Mower, 25hp Kohler

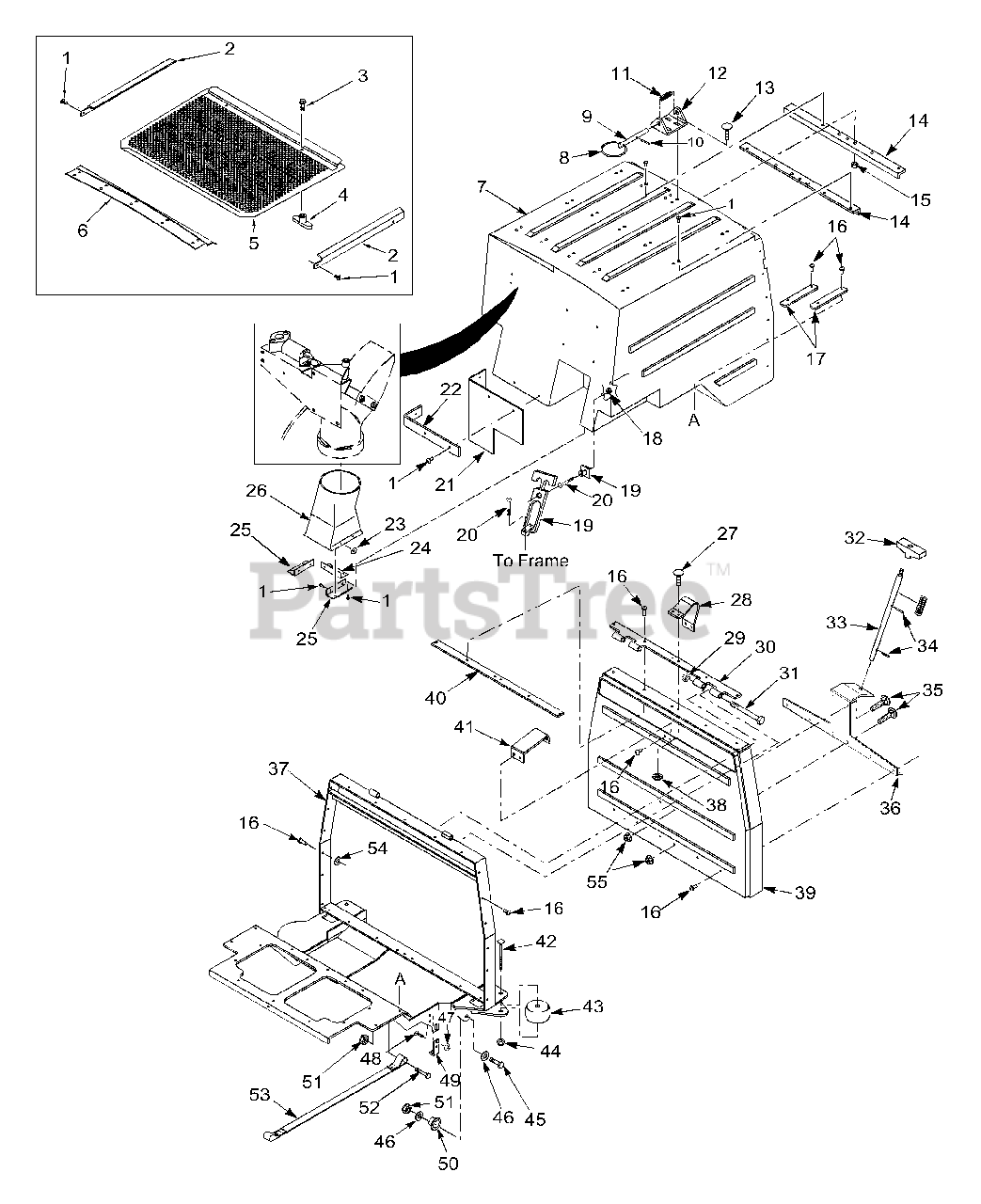

Hopper Parts Diagram

  • Title

1

Scag 04090-02

Pop Rivet, 3/16 x .652

$0.99

$

In Stock, only 3 left!

0

2

Scag 451193

Guide Weldment, Screen

$64.99

$

Usually ships in 2-12 days

0

3

Scag 04001-08

Bolt, Hex Head 5/16-18 x 3/4"

$0.99

$

In Stock, Qty 20+

0

4

Scag 481092-01

Plastic Knob, 5/16-18

$5.49

$

In Stock, only 2 left!

0

5

Scag 451191

Screen Weldment

$507.99

$

Usually ships in 2-12 days

0

6

Scag 451289

Stop Weldment, Screen

$

$

Not available

7

Scag 461420

Hopper Assembly
(Superseded to 461474)

Note: (Incl. Items 1, 2, 4, 14, 16, 17, 21, 22, 24, 25, 37 & 54)

$

$

Not available

8

Scag 481876

Split Ring

$5.49

$

In Stock, only 2 left!

0

9

Scag 43548

Pin, Hopper Latch

$

$

Not available

10

Scag 04060-01

Roll Pin

$0.99

$

Usually ships in 2-12 days

0

11

Scag 482070

Spring, Door Lock

$6.99

$

Usually ships in 2-12 days

0

12

Scag 422872

Mount, Latch Pin

$52.99

$

In Stock, only 1 left!

0

13

Scag 04003-06

Bolt, Carr. 1/4-20 x 1"

$0.99

$

In Stock, Qty 6

0

14

Scag 422978

Support, Hopper Top

$

$

Not available

15

Scag 04019-02

Nut, Serr. Flange 1/4-20

$0.99

$

In Stock, Qty 20+

0

16

Scag 04091-01

Pop Rivet, 1/4 x .85

$1.99

$

Usually ships in 2-12 days

0

17

Scag 423178

Retainer Strip, Hopper

$

$

Not available

18

Scag 04021-01

Nut, Elastic Stop #10-32

$0.99

$

In Stock, Qty 10

0

19

Scag 482184

Latch, Hopper

$33.99

$

Usually ships in 2-12 days

0

20

Scag 04010-11

Screw, #10-32 x 1-1/2"

$0.99

$

Usually ships in 2-12 days

0

21

Scag 482073

Pad, Rubber Heat Deflector

$22.99

$

Usually ships in 2-12 days

0

22

Scag 423130

Backing PLate, Heat Deflector

$

$

Not available

23

Scag 04040-14

Flatwasher, 1/4-.312 x .750 x .065

$0.99

$

In Stock, only 4 left!

0

24

Scag 422037

Mount, Transition Chute Rear

$

$

Not available

25

Scag 422228

Mount, Transition Chute Side

$

$

Not available

26

Scag 481279

Chute, Transition

$88.99

$

Usually ships in 2-12 days

0

27

Scag 04003-06

Bolt, Carr. 1/4-20 x 1"

$0.99

$

In Stock, Qty 6

0

28

Scag 422871

Latch, Hopper Door

$17.99

$

Usually ships in 2-12 days

0

29

Scag 04021-10

Nut, Elastic Stop 5/16-18

$0.99

$

In Stock, Qty 20+

0

30

Scag 451189

Hinge Weldment, Hopper Door

$

$

Not available

31

Scag 04001-126

Bolt, Hex Head 5/16-18 x 5-1/2"

$2.49

$

In Stock, only 4 left!

0

32

Scag 481092-01

Plastic Knob, 5/16-18

$5.49

$

In Stock, only 2 left!

0

33

Scag 43547

Pin, Hopper Door

$

$

Not available

34

Scag 04060-08

Roll Pin, .188 x 1-1/2"

$0.99

$

In Stock, only 2 left!

0

35

Scag 04003-12

Bolt, Carr. 5/16-18 x 3/4"

$0.99

$

In Stock, Qty 20+

0

36

Scag 423128

Bracket, Door Latch

$

$

Not available

37

Scag 451190

Hopper Frame Weldment

$

$

Not available

38

Scag 04019-02

Nut, Serr. Flange 1/4-20

$0.99

$

In Stock, Qty 20+

0

39

Scag 481973

Door, Hopper
(Superseded to 461421)

$

$

Not available

40

Scag 422932

Backing Strip, Hinge

$

$

Not available

41

Scag 423131

Backing Plate, Door Latch

$

$

Not available

42

Scag 04003-26

Bolt, Carr. 3/8-16 x 4"

$1.99

$

In Stock, Qty 20+

0

43

Scag 481632

Wheel, Anti-Scalp

$21.99

$

In Stock, Qty 20+

0

44

Scag 04021-05

Lock Nut, 3/8-16

$0.99

$

In Stock, Qty 20+

0

45

Scag 04001-21

Bolt, Hex Head 3/8-16 x 1-3/4"

$0.99

$

In Stock, Qty 20+

0

46

Scag 04041-07

Flatwasher, 3/8-.391 x .938 x .105

$0.99

$

In Stock, Qty 20+

0

47

Scag 04019-02

Nut, Serr. Flange 1/4-20

$0.99

$

In Stock, Qty 20+

0

48

Scag 04003-02

Bolt, Carr. 1/4-20 x 3/4"

$0.99

$

In Stock, Qty 20+

0

49

Scag 423017

Bracket, Switch Mounting

$

$

Not available

50

Scag 43546

Bushing, Hopper Pivot

$12.99

$

Usually ships in 2-12 days

0

51

Scag 04021-09

Nut, Elastic Stop 3/8-16

$0.99

$

In Stock, Qty 20+

0

52

Scag 04001-62

Bolt, Hex Head 3/8-16 x 3-1/4"

$1.49

$

In Stock, Qty 12

0

53

Scag 482071

Strap Bucket Stop

$32.99

$

Usually ships in 2-12 days

0

54

Scag 04041-22

Flatwasher, 1/4-.258 x .50 x .0598

$0.99

$

Usually ships in 2-12 days

0

55

Scag 04019-03

Nut, Serr. Flange 5/16-18

$0.99

$

In Stock, Qty 20+

0
