SCR42-25CH - Scag Cougar 42" Zero-Turn Mower, 25hp Kohler (SN: 6430001 - 6439999) Cutter Decks - 42" Parts Diagram

Cougar 42" Zero-Turn Mower, 25hp Kohler

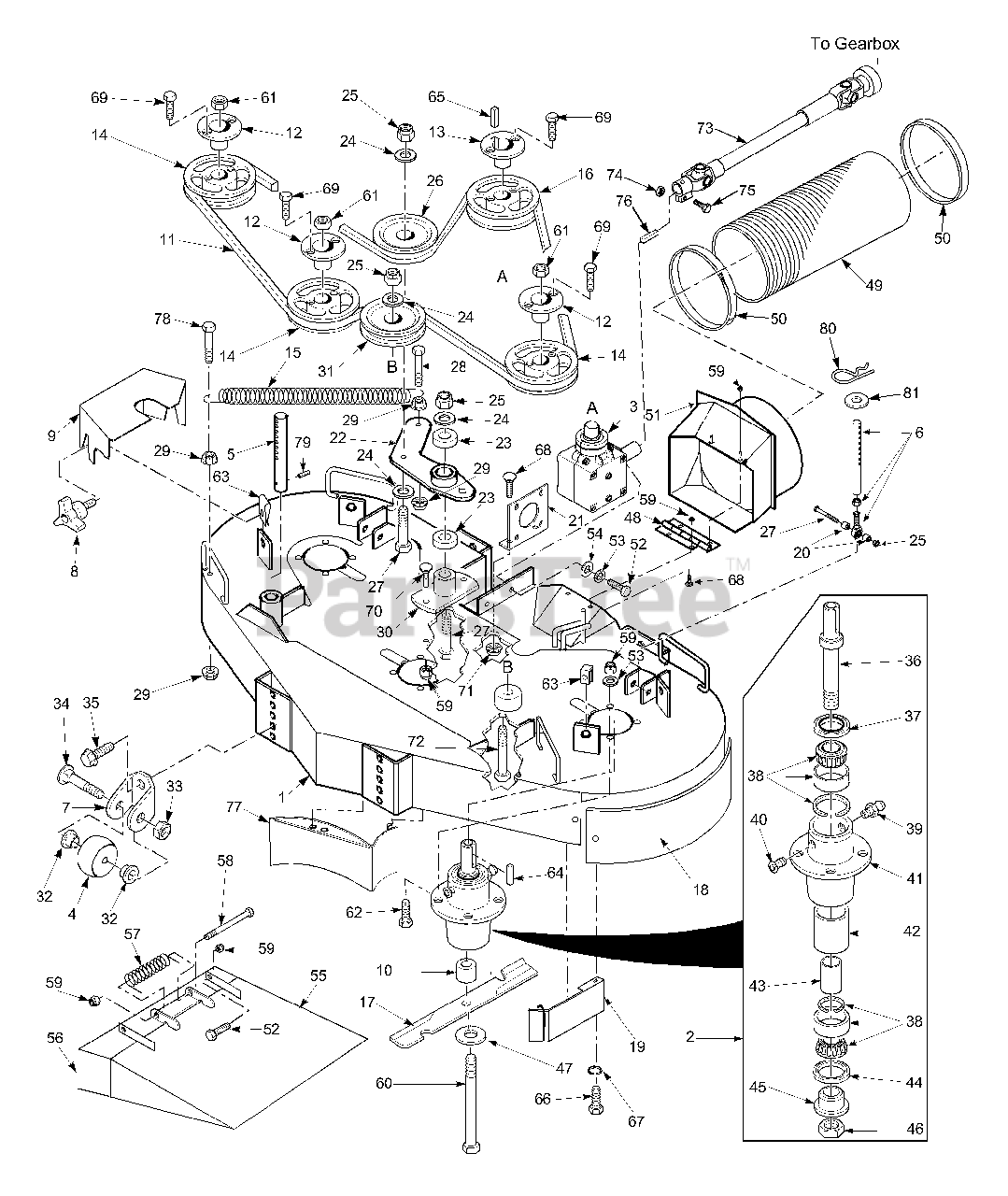

Cutter Decks - 42" Parts Diagram

  • Title

1

Scag 461365

Cutter Deck with Decals

$

$

Not available

2

Scag 46631

Spindle Assembly
(Superseded to 461663)

$263.99

$

In Stock, Qty 20+

0

3

Scag 481516

Gearbox, Cutter Deck
(Superseded to 482486)

$704.99

$

In Stock, only 1 left!

0

4

Scag 481632

Wheel, Anti-Scalp

$27.99

$

In Stock, Qty 20+

0

5

Scag 43515

Pin, Front Deck Height Adjust.

$51.99

$

Usually ships in 2-12 days

0

6

Scag 482075

Pin, Rear Deck Height Adjust.

$85.99

$

Usually ships in 2-12 days

0

7

Scag 422478

Bracket, Anti-Scalp Wheel

$28.99

$

In Stock, Qty 20+

0

8

Scag 481625-01

Knob w/Stud

$2.99

$

In Stock, Qty 20+

0

9

Scag 423366

LH Belt Cover

$64.99

$

Usually ships in 2-12 days

0

Scag 423367

RH Belt Cover

$81.99

$

Usually ships in 2-12 days

0

10

Scag 43309

Spacer, Spindle Bottom
(Superseded to 43590)

$17.99

$

In Stock, Qty 20+

0

11

Scag 482336

Belt, Cutter Deck Drive

$71.99

$

In Stock, only 2 left!

0

12

Scag 48926

Hub, Tapered 1.125" bore

$31.99

$

In Stock, Qty 20+

0

13

Scag 48141

Hub, Tapered 1.00" bore

$30.99

$

In Stock, only 1 left!

0

14

Scag 482148

Pulley, 4.75" OD Tapered Bore
(Superseded to 483282)

$37.99

$

In Stock, only 3 left!

0

15

Scag 481522

Spring, Belt Tension

$33.99

$

In Stock, only 1 left!

0

16

Scag 481435

Pulley, 5.35" OD Tapered Bore
(Superseded to 482647)

$37.99

$

In Stock, only 1 left!

0

17

Scag 482243

Blade, Cutter 14.5" LH
(Superseded to 482449)

$39.99

$

Usually ships in 2-12 days

0

18

Scag 451398

Skirt, Weldment Bolt On

$131.99

$

Usually ships in 2-12 days

0

19

Scag 451397

Baffle, Bolt On

$

$

Not available

20

Scag 43512

Spacer

$4.49

$

Usually ships in 2-12 days

0

21

Scag 422426

Plate, Gearbox Mounting

$52.99

$

Usually ships in 2-12 days

0

22

Scag 451096

Idler Arm
(Superseded to 461174)

$97.99

$

In Stock, only 1 left!

0

23

Scag 48224

Bearing, Ball

$13.99

$

In Stock, Qty 20+

0

24

Scag 04043-04

Flat Washer 3/8"

$0.99

$

In Stock, Qty 20+

0

25

Scag 04021-09

Nut, Elastic Stop 3/8-16

$0.99

$

In Stock, Qty 20+

0

26

Scag 48269

Pulley, Idler
(Superseded to 483215)

$62.99

$

In Stock, Qty 20+

0

27

Scag 04001-31

Bolt, Hex Head 3/8-16 x 2.5"

$0.99

$

In Stock, Qty 20+

0

28

Scag 04001-136

Bolt, Hex Head 3/8-16 x 1.5 GR8

$0.99

$

In Stock, Qty 20+

0

29

Scag 04019-04

Nut, Serr. Flng. 3/8-16

$0.99

$

In Stock, Qty 20+

0

30

Scag 422713

Pivot, Idler Arm

$14.99

$

In Stock, only 1 left!

0

31

Scag 48269

Pulley, Idler 5.0"
(Superseded to 483215)

$62.99

$

In Stock, Qty 20+

0

32

Scag 48100-15

Bushing .376 ID Oilite

$4.99

$

In Stock, Qty 20+

0

33

Scag 04021-05

Lock Nut, 3/8-16 Center Lock

$0.99

$

In Stock, Qty 20+

0

34

Scag 04003-26

Bolt, Carriage 3/8-16 x 4.0"

$1.99

$

In Stock, Qty 20+

0

35

Scag 04017-27

Bolt, Hex Serr. Flng. 3/8-16 x 1.0"

$1.49

$

In Stock, Qty 20+

0

36

Scag 43298

Shaft, Spindle
(Superseded to 43589)

$59.99

$

In Stock, only 1 left!

0

37

Scag 481024

Seal, Top

$4.99

$

In Stock, Qty 20+

0

38

Scag 481022

Bearing Assembly

$61.99

$

In Stock, Qty 15

0

39

Scag 48114-04

Grease Fitting

$1.49

$

In Stock, Qty 20+

0

40

Scag 48677

Relief Fitting, Grease

$9.49

$

Usually ships in 2-12 days

0

41

Scag 43294

Housing, Spindle
(Superseded to 43644)

$60.99

$

In Stock, only 2 left!

0

42

Scag 43312

Spacer, Outside

$19.99

$

In Stock, only 1 left!

0

43

Scag 43296

Spacer, Inside

$8.49

$

In Stock, only 2 left!

0

44

Scag 481025

Seal, Bottom

$4.99

$

In Stock, Qty 20+

0

45

Scag 43297

Bushing, Spindle Bottom

$9.99

$

In Stock, only 2 left!

0

46

Scag 481035

Nut, Special 1 - 1/16-18

$7.99

$

In Stock, only 3 left!

0

47

Scag 04040-10

Flat Washer 5/8"

$0.99

$

In Stock, Qty 11

0

48

Scag 482077

Hinge, Rear Chute

$78.99

$

Usually ships in 2-12 days

0

49

Scag 482076

Tube, Discharge 8" ID

$209.99

$

Usually ships in 2-12 days

0

50

Scag 482134

Clamp, Duct 8"

$41.99

$

In Stock, only 2 left!

0

51

Scag 451117

Chute, Rear Discharge

$343.99

$

Usually ships in 2-12 days

0

52

Scag 04001-09

Bolt, HH 5/16-18 x 1.0"

$0.99

$

In Stock, Qty 20+

0

53

Scag 04030-03

Lockwasher, 5/16"

$0.99

$

In Stock, Qty 20+

0

54

Scag 04040-15

Washer, Flat 5/16"

$0.99

$

In Stock, Qty 20+

0

55

Scag 461419

Chute, Side Discharge
(Superseded to 461723)

$169.99

$

Usually ships in 2-12 days

0

55

Chute, Side Discharge

Note: Not used on this model

$

$

Not available

56

Scag 461415

Bracket, Side Discharge Chute

$70.99

$

Usually ships in 2-12 days

0

57

Scag 482245

Spring, Discharge Chute

$11.99

$

In Stock, Qty 5

0

58

Scag 04001-108

Bolt, HH 5/16-18 x 4.5"

$2.49

$

In Stock, Qty 9

0

59

Scag 04021-10

Nut, Elastic Stop 5/16-18

$0.99

$

In Stock, Qty 20+

0

60

Scag 04001-158

Bolt, 5/8-11 x 9.5" LH Thread

$38.99

$

Usually ships in 2-12 days

0

61

Scag 04020-29

Nut, 5/8-11 LH Thread

$7.99

$

In Stock, only 2 left!

0

62

Scag 04001-10

Bolt, HH 5/16-18 x 1.25"

$0.99

$

In Stock, Qty 14

0

63

Scag 04110-03

U-Nut, 3/8-16

$2.49

$

In Stock, Qty 20+

0

64

Scag 04063-08

Key, 1/4 x 1/4 x 2.0"

$1.49

$

In Stock, Qty 20+

0

65

Scag 04063-01

Key, 1/4 x 1/4 x 1.25"

$1.49

$

In Stock, only 4 left!

0

66

Scag 04001-19

Bolt, 3/8-16 x 1.0"

$0.99

$

In Stock, Qty 7

0

67

Scag 04030-04

Lock Washer 3/8" Spring

$0.99

$

In Stock, Qty 8

0

68

Scag 04003-12

Bolt, Carriage 5/16-18 x .75"

$0.99

$

In Stock, Qty 20+

0

69

Scag 04001-01

Bolt, HH 1/4-20 x .75"

$0.99

$

In Stock, Qty 18

0

70

Scag 04003-04

Bolt, Carriage 5/16-18 x 1.0"

$0.99

$

In Stock, Qty 9

0

71

Scag 04019-03

Nut, Serr. Flng. 5/16-18

$0.99

$

In Stock, Qty 20+

0

72

Scag 04001-62

Bolt, HH 3/8-16 x 3.25"

$1.49

$

In Stock, Qty 15

0

73

Scag 482426

Driveshaft

$1289.99

$

Usually ships in 2-12 days

0

74

Scag 04021-09

Nut, Elastic Stop 3/8-16

$0.99

$

In Stock, Qty 20+

0

75

Scag 04001-21

Bolt, Hex Head 3/8-16 x 1-3/4"

$0.99

$

In Stock, Qty 20+

0

76

Scag 04063-01

Key, 1/4 x 1/4 x 1-1/4"

$1.49

$

In Stock, only 4 left!

0

77

Scag 423336

Baffle, Rear

$

$

Not available

78

Scag 04001-135

Bolt, Hex Head 3/8-16 x 1-3/4" Gr.8

$0.99

$

In Stock, Qty 5

0

79

Scag 04060-08

Roll Pin

$0.99

$

In Stock, only 2 left!

0

80

Scag 04062-04

Hair Pin Cotter

$1.99

$

In Stock, Qty 20+

0

81

Scag 04040-10

Flatwasher, 5/8-.688 x 1.750 x .134

$0.99

$

In Stock, Qty 11

0
