SCP 21 E (18AEB9C5B10) - Cub Cadet Walk-Behind Mower, Electric (2021) Panel Assembly Parts Diagram

Walk-Behind Mower, Electric

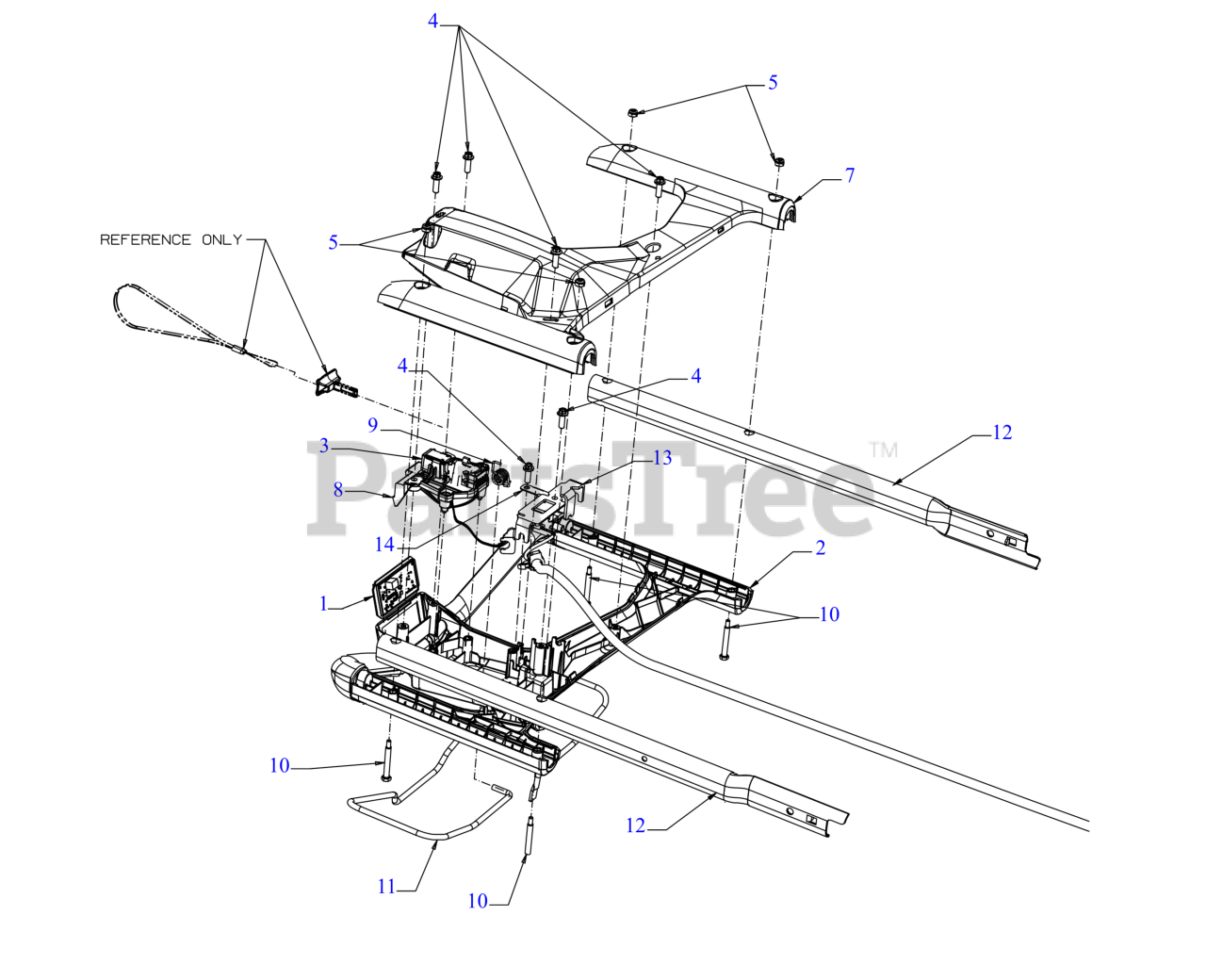

Panel Assembly Parts Diagram

  • Title

1

Cub Cadet 625-08839

BATTERY DISPLAY (60V)

$46.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 631-08019

PANEL (UPPER)

$35.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 631-08173

KEY RECEPTACLE

$11.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 710-05108

SCREW 1/4 x .750

$3.99

$

In Stock, Qty 20+

0

5

Cub Cadet 712-0161

HEX NUT

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 725P17112

HARNESS

$88.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 731-25731

HANDLE PANEL (LOWER)

$19.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 731-26705

PUSH KEY RECEPTACLE BRACKET

$19.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 732-05436

TORSION SPRING

$2.49

$

Usually ships in 3-6 days

0

10

Cub Cadet 738-05179A

SHOULDER SCREW .25:1.63:#10-24:.32

$2.49

$

Usually ships in 3-6 days

0

11

Cub Cadet 747-11566

OPERATOR BAIL (ERGO)

Note: (Choose color when ordering)

$23.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 749-09306

HANDLE (UPPER)

Note: (Choose color when ordering)

$35.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 787-03650A

BAIL SUPPORT BRACKET

$8.49

$

Usually ships in 3-6 days

0

14

Cub Cadet 787-06311

BAIL SWITCH BRACKET

$

$

Currently unavailable
