SCP 21 E (18AEB9C5B10) - Cub Cadet Walk-Behind Mower, Electric (2021) Deck Assembly Parts Diagram

Walk-Behind Mower, Electric

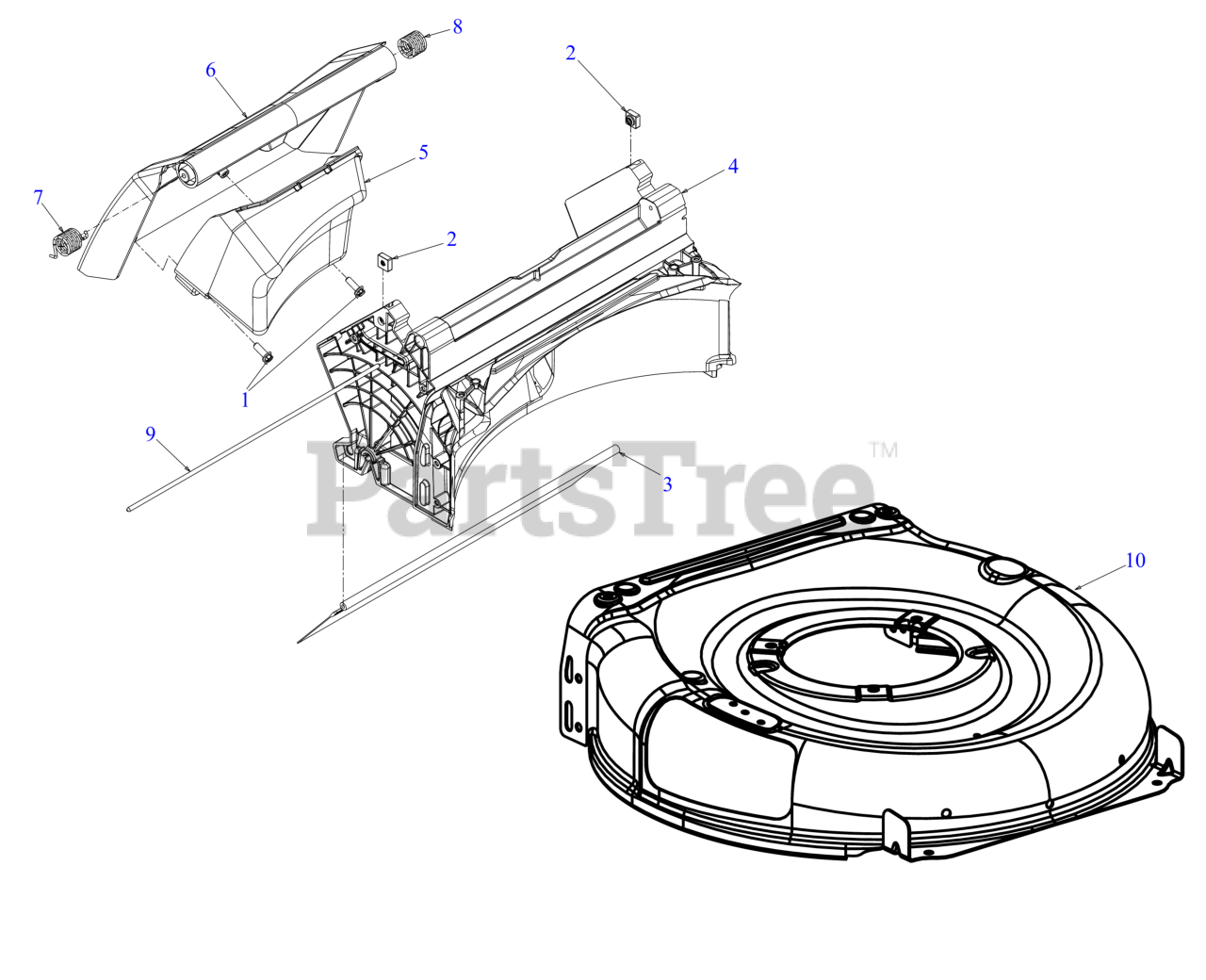

Deck Assembly Parts Diagram

  • Title

1

Cub Cadet 710-05108

SCREW 1/4 x .750

$3.99

$

In Stock, Qty 20+

0

2

Cub Cadet 712-05020

SQUARE LOCK NUT 1/4X20

$9.49

$

Usually ships in 3-6 days

0

3

Cub Cadet 731-07203

TRAILSHIELD

$10.99

$

In Stock, only 2 left!

0

4

Cub Cadet 631P07999

REAR BAG BAFFLE

$29.99

$

Usually ships in 3-6 days

0

5

NOT SERVICEABLE

Note: (Order complete assembly 631P07999)

$

$

Not available

6

NOT SERVICEABLE

Note: (Order complete assembly 631P07999)

$

$

Not available

7

Cub Cadet 732-05061B

TORSION SPRING (RH)

$5.49

$

In Stock, only 1 left!

0

8

Cub Cadet 732-05062A

TORSION SPRING (LH)

$5.49

$

In Stock, only 1 left!

0

9

NOT SERVICEABLE

Note: (Order complete assembly 631P07999)

$

$

Not available

10

Cub Cadet 787-01869B

21" DECK (3N1)

Note: (Choose color when ordering)

Variations

Cub Cadet 787-01869B-0638

Mower Deck, 21" 3-in-1 - MTD/TROY-BILT RED (0638)

$143.99

$

In Stock, Qty 9

0

Cub Cadet 787-01869B-0709

DECK-21" 3 IN 1 - MASTERCRAFT GREEN (0709)

$143.99

$

Usually ships in 3-6 days

0

Cub Cadet 787-01869B-4044

DECK-21" 3 IN 1 - CRAFTSMAN RED (4044)

$143.99

$

Usually ships in 3-6 days

0

Cub Cadet 787-01869B-0691

DECK-21" 3 IN 1 - BLACK JACK (0691)

$143.99

$

Usually ships in 3-6 days

0

Cub Cadet 787-01869B-0606

DECK-21" 3 IN 1 - MAJESTIC ORANGE (0606)

$133.99

$

Usually ships in 3-6 days

0

Cub Cadet 787-01869B-0637

DECK-21" 3 IN 1 - POWDER BLACK (0637)

$143.99

$

Usually ships in 3-6 days

0

Cub Cadet 787-01869B-0650

DECK-21" 3 IN 1 - RED METALLIC (0650)

$143.99

$

Usually ships in 3-6 days

0

Cub Cadet 787-01869B-0665

DECK-21" 3 IN 1 - YARDMAN GREEN (0665)

$143.99

$

Usually ships in 3-6 days

0

Cub Cadet 787-01869B-0668

DECK-21" 3 IN 1 - MOSS GREEN (0668)

$143.99

$

Usually ships in 3-6 days

0

Cub Cadet 787-01869B-4021

DECK-21" 3 IN 1 - CUB YELLOW 2 (4021)

$133.99

$

Usually ships in 3-6 days

0

Cub Cadet 787-01869B-4041

DECK-21" 3 IN 1 - PURE ORANGE (4041)

$133.99

$

Usually ships in 3-6 days

0

Cub Cadet 787-01869B-4043

DECK-21" 3 IN 1 - CRAFTSMAN METALLIC GRAY (4043)

$143.99

$

Usually ships in 3-6 days

0

$116.99

$

Usually ships in 3-6 days

0
