Sc2450 (54BFG4TV727) - Cub Cadet Yanmar Sc Series Compact Tractor Engine Governor Parts Diagram

Sc Series Compact Tractor

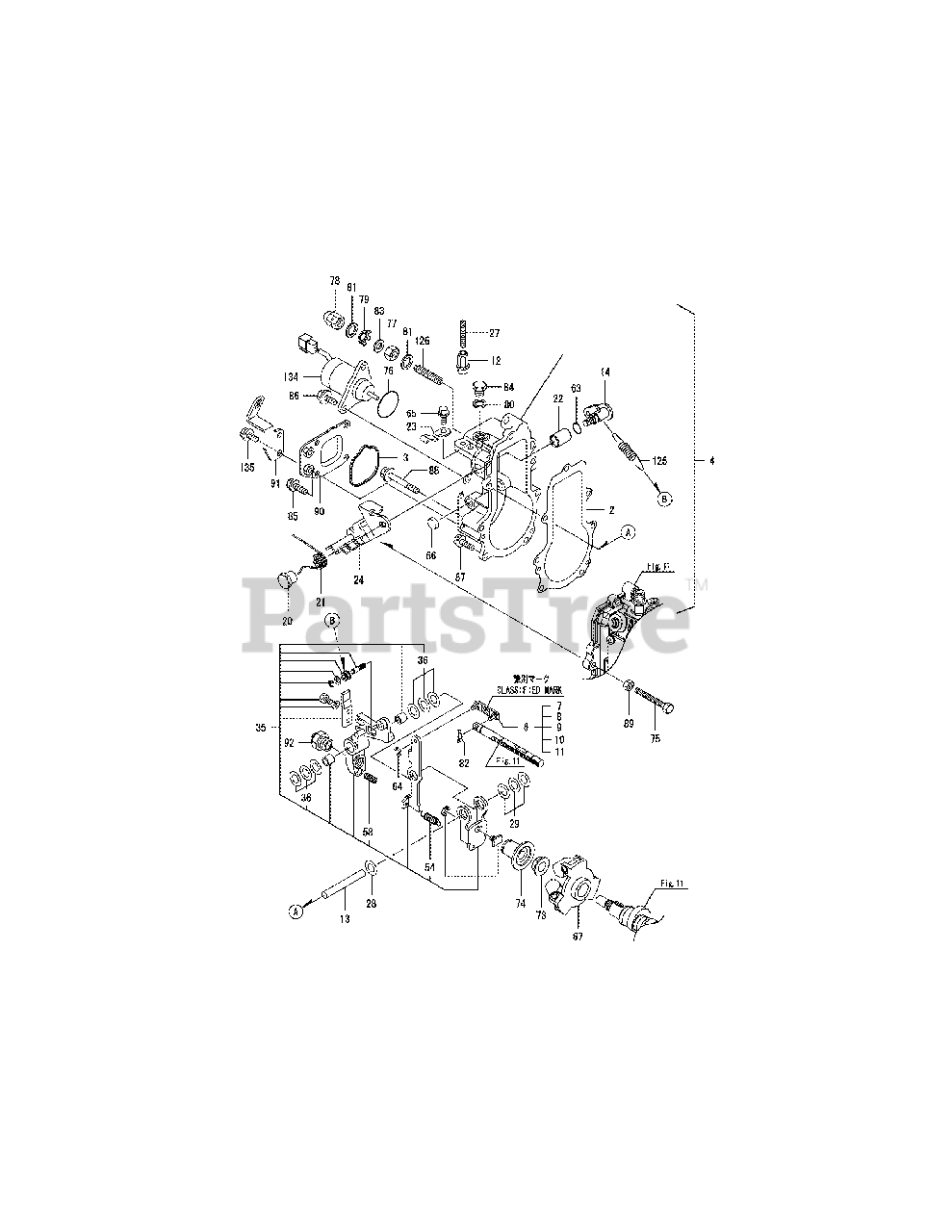

Engine Governor Parts Diagram

  • Title
2

$

$

Not available

3

$

$

Not available

4

Cub Cadet CY-119025-61100

CASE ASSY, GOVERNOR

$

$

Not available

$

$

Not available

7

Cub Cadet CY-119125-61120

LINK,CLASIFIEDMARK93

$

$

Not available

8

Cub Cadet CY-119125-61130

LINK,CLASIFIEDMARK98

$

$

Not available

9

Cub Cadet CY-119125-61140

LINK,CLASIFIEDMARK88

$

$

Not available

10

Cub Cadet CY-119125-61150

LINK,CLASIFIEDMARK00

$

$

Not available

11

Cub Cadet CY-119125-61160

LINK,CLASIFIEDMARK03

$

$

Not available

$

$

Not available

13

$

$

Not available

14

Cub Cadet CY-119125-61401

SHAFT ASSY, CONTROL

$

$

Not available

$

$

Not available

21

$

$

Not available

$

$

Not available

$

$

Not available

24

Cub Cadet CY-119527-61440

LEVER ASSY,REGULATOR

$

$

Not available

27

$

$

Not available

28

$

$

Not available

29

$

$

Not available

35

Cub Cadet CY-119125-61501

LEVER ASSY, GOVERNOR

$

$

Not available

36

Cub Cadet CY-174307-51700

SHIM SET, ADJUSTING

$

$

Not available

54

$

$

Not available

58

Cub Cadet CY-129100-61650

SPRING, FUEL CONTROL

$

$

Currently unavailable

63

$

$

Not available

64

$

$

Not available

65

Cub Cadet CY-26106-060102

BOLT 6X 10 PLATED

$

$

Not available

66

$

$

Not available

67

$

$

Not available

73

Cub Cadet CY-129008-61301

NUT, GOVERNOR WEIGHT

$

$

Not available

74

$

$

Not available

$

$

Not available

$

$

Not available

$

$

Not available

$

$

Not available

$

$

Not available

$

$

Not available

81

Cub Cadet CY-22190-120002

SEAL WASHER 12

$

$

Not available

$

$

Not available

$

$

Not available

$

$

Not available

85

Cub Cadet CY-26106-060102

BOLT 6X 10 PLATED

$

$

Not available

86

Cub Cadet CY-26106-060142

BOLT M 6X 14 PLATED

$

$

Not available

87

Cub Cadet CY-26106-060202

BOLT M 6X 20 PLATED

$

$

Not available

88

Cub Cadet CY-26106-060452

BOLT M 6X 45 PLATED

$

$

Not available

$

$

Not available

90

Cub Cadet CY-119761-61060

COVER, GOVERNOR CASE

$

$

Not available

91

$

$

Not available

92

$

$

Not available

125

Cub Cadet CY-129573-61700

SPRING, GOVERNOR

$

$

Not available

126

Cub Cadet CY-158601-61700

LIMITER ASSY, FUEL

$

$

Not available

134

Cub Cadet CY-119653-77950

SOLENOID, STOP

$

$

Not available

135

Cub Cadet CY-26106-060102

BOLT 6X 10 PLATED

$

$

Not available
