Sc2450 (54BFG4TV727) - Cub Cadet Yanmar Sc Series Compact Tractor Center Pin Parts Diagram

Sc Series Compact Tractor

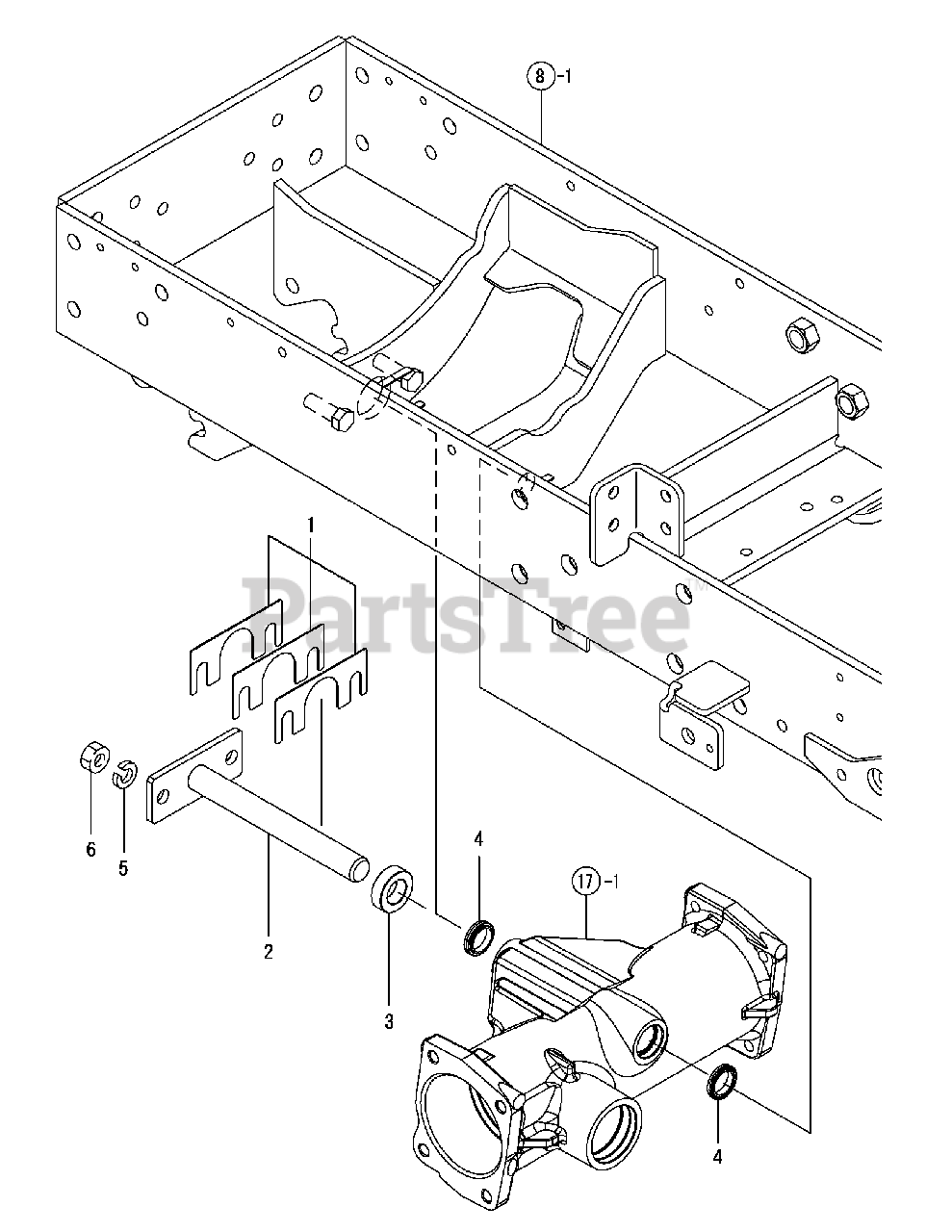

Center Pin Parts Diagram

  • Title
1

Cub Cadet CY-198165-11500

SHIM SET, CENTER PIN

$

$

Not available

2

Cub Cadet CY-1A7880-11510

PIN ASSY, CENTER

$

$

Not available

3

Cub Cadet CY-1A7880-11551

COLLAR, 22X38X11.5

$

$

Not available

4

Cub Cadet CY-1A7880-11560

DUST SEAL 22X30X6

$

$

Not available

5

Cub Cadet CY-22217-120000

SPRING WASHER 12

$

$

Not available

$

$

Not available

Note:8-1 Refers to Frame, Ref No. 1

$

$

Not available

Note:17-1 Refers to Front Axle Case, Ref No. 1

$

$

Not available
