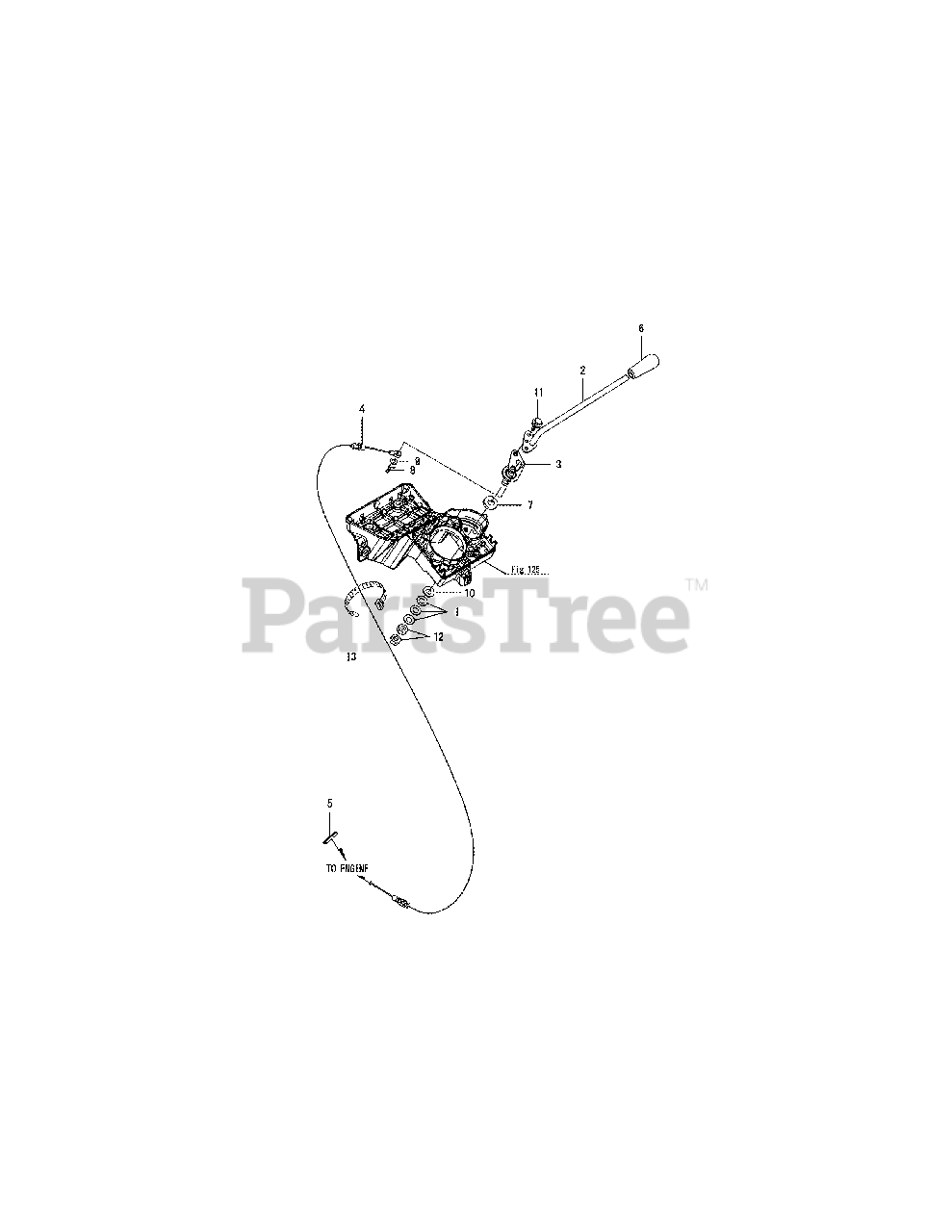

Sc2450 (54BFG4TV727) - Cub Cadet Yanmar Sc Series Compact Tractor Accelerator Lever (SN 020101 & After) Parts Diagram

Sc Series Compact Tractor

Accelerator Lever (SN 020101 & After) Parts Diagram

  • Title
1

Cub Cadet CY-194740-00160

WASHER 10, CONICAL

$

$

Not available

2

Cub Cadet CY-1A7880-01060

CONTROL LEVER, HEAD

$

$

Not available

3

Cub Cadet CY-1A7880-01110

CONTROL LEVER, BASE

$

$

Not available

4

Cub Cadet CY-1A7882-01150

CABLE ASSY, CONTROL

$

$

Not available

5

Cub Cadet CY-198071-01160

RUBBER, WIRE RETAING

$

$

Not available

6

Cub Cadet CY-198253-01190

KNOB, THROTTLE LEVER

$

$

Not available

7

Cub Cadet CY-1C6900-48251

SPACER 13X26X5

$

$

Not available

8

Cub Cadet CY-1C6281-52310

PIN 6, COME-OFF SNAP

$

$

Not available

9

Cub Cadet CY-22137-060000

WASHER 6, POLISHED

$

$

Not available

10

Cub Cadet CY-22137-100000

WASHER 10, POLISHED

$

$

Not available

11

Cub Cadet CY-26106-060122

BOLT M 6X 12 PLATED

$

$

Not available

$

$

Not available

13

$

$

Not available

Note:125 Refers to Column Bracket (SN 020101 & After) page

$

$

Not available
