Sc2450 (54BEG4TV727) - Cub Cadet Yanmar Sc Series Compact Tractor Piping Parts Diagram

Sc Series Compact Tractor

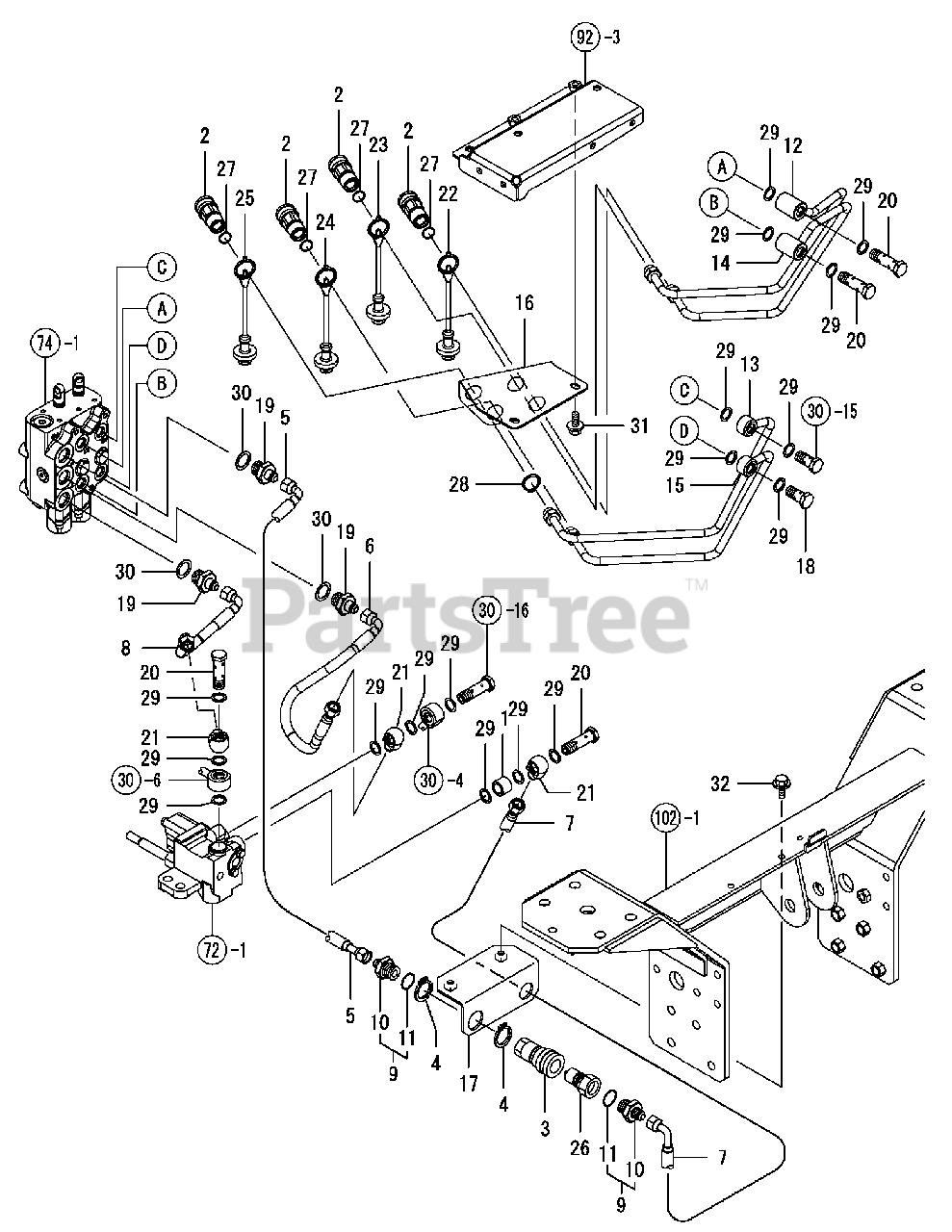

Piping Parts Diagram

  • Title

1

Cub Cadet CY-1A7882-45210

SPACER

$

$

Not available

2

Cub Cadet CY-198223-46250

COUPLER, HYD.QUICK

$

$

Not available

3

Cub Cadet CY-1A8160-46250

COUPLER, QUICK 3/8F

$

$

Not available

4

Cub Cadet CY-198240-46260

RING, SNAP

$

$

Not available

5

Cub Cadet CY-1A7882-47100

HOSE, HP. BH

$

$

Not available

6

Cub Cadet CY-1A7880-47150

HP HOSE, SCV

$

$

Not available

7

Cub Cadet CY-1A7882-47150

HOSE, HP. BH T

$

$

Not available

8

Cub Cadet CY-1A7880-47200

LP HOSE, SCV

$

$

Not available

9

Cub Cadet CY-1A7882-47210

JOINT ASSY

$

$

Not available

10

Cub Cadet N/A

JOINT, 3/4UNF-9/16UNF

Note: Order Ref No. 9

$

$

Currently unavailable

11

Cub Cadet N/A

O-RING, 8-1

Note: Order Ref No. 9

$

$

Currently unavailable

12

Cub Cadet CY-1A7880-47301

HP PIPE CMP, SCV A1

$

$

Not available

13

Cub Cadet CY-1A7880-47351

HP PIPE CMP, SCV A2

$

$

Not available

14

Cub Cadet CY-1A7880-47401

HP PIPE CMP, SCV B1

$

$

Not available

15

Cub Cadet CY-1A7880-47451

HP PIPE CMP, SCV B2

$

$

Not available

16

Cub Cadet CY-1A7880-47500

STAY(SCV COUPLER

$

$

Not available

17

Cub Cadet CY-1A7882-47500

STAY ASSY, BH COUPLER

$

$

Not available

18

Cub Cadet CY-1A7880-47510

BALL JOINT BOLT 9/16

$

$

Not available

19

Cub Cadet CY-1A7880-47520

JOINT, 3/4UNF-9/16UNF

$

$

Not available

20

Cub Cadet CY-1A7880-47530

BALL JOINT BT L 9/16

$

$

Not available

21

Cub Cadet CY-1A7880-47540

JOINT, 9/16UNF-14.5

$

$

Not available

22

Cub Cadet CY-1A7880-47550

PLUG, DUST RED

$

$

Not available

23

Cub Cadet CY-1A7880-47560

PLUG, DUST BLUE

$

$

Not available

24

Cub Cadet CY-1A7880-47570

PLUG, DUST YELLOW

$

$

Not available

25

Cub Cadet CY-1A7880-47580

PLUG, DUST GREEN

$

$

Not available

26

Cub Cadet CY-1A8160-48820

COUPLER, QUICK 3/8M

$

$

Not available

27

Cub Cadet CY-194850-49290

O-RING, 6-1

$

$

Not available

28

Cub Cadet CY-22242-000220

RING, 22

$

$

Not available

29

Cub Cadet CY-23414-140000

GASKET, 14 X 1.0

$

$

Not available

30

Cub Cadet CY-23414-190000

GASKET, 19 X 1.0

$

$

Not available

31

Cub Cadet CY-26106-080162

BOLT, 8 X 16

$

$

Not available

32

Cub Cadet CY-26106-080202

BOLT, 8 X 20

$

$

Not available

Note:30-4 Refers to Steering Pipe, Ref No. 4

$

$

Not available

Note:30-6 Refers to Steering Pipe, Ref No. 6

$

$

Not available

Note:30-15 Refers to Steering Pipe, Ref No. 15

$

$

Not available

Note:30-16 Refers to Steering Pipe, Ref No. 16

$

$

Not available

Note:72-1 Refers to Control Valve, Ref No. 1

$

$

Not available

Note:74-1 Refers to SCV Valve, Ref No. 1

$

$

Not available

Note:92-3 Refers to Footrest Stay, Ref No. 3

$

$

Not available

Note:102-1 Refers to Lower Frame, Ref No. 1

$

$

Not available
