Sc2450 (54BEG4TV727) - Cub Cadet Yanmar Sc Series Compact Tractor Hydraulic Control Parts Diagram

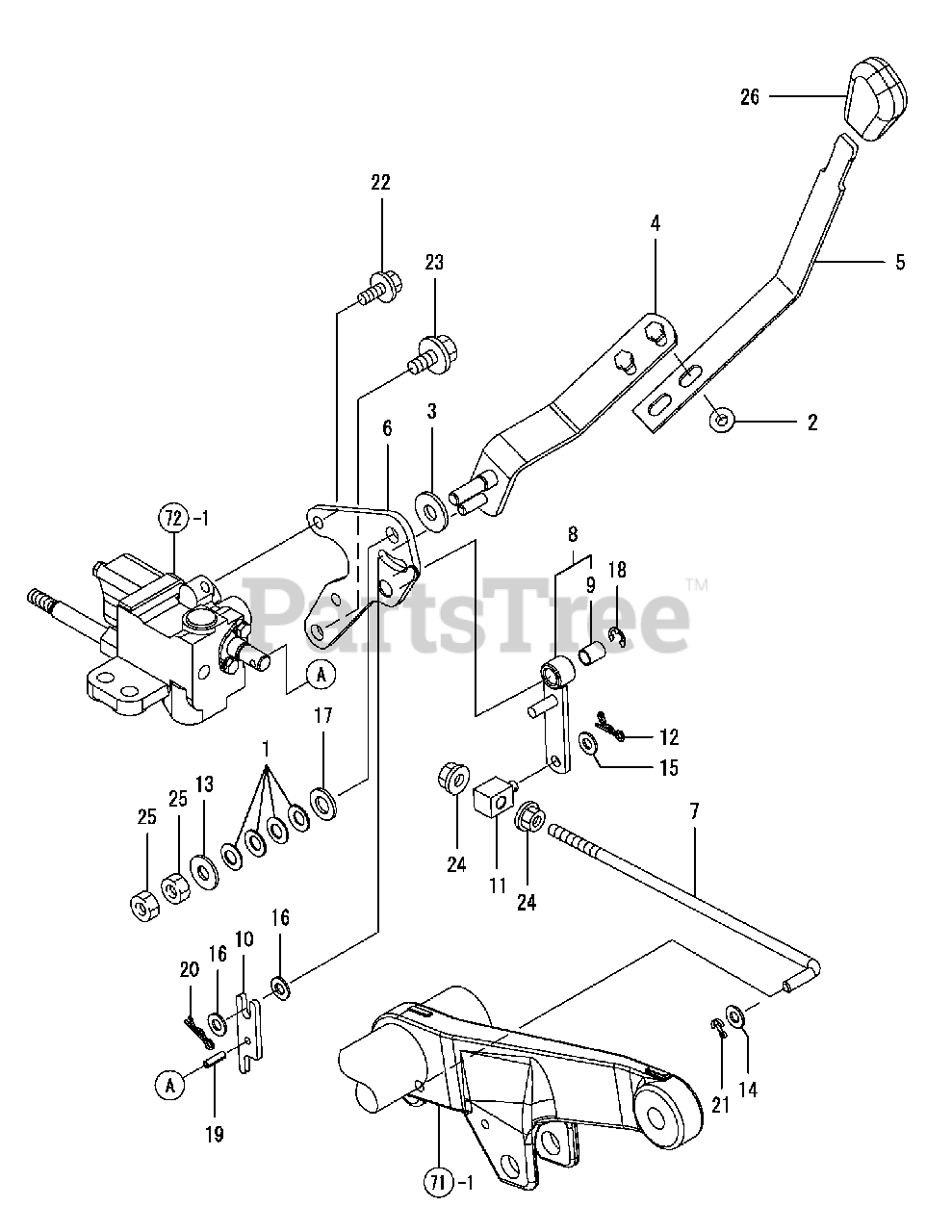

Sc Series Compact Tractor

Hydraulic Control Parts Diagram

  • Title

1

Cub Cadet CY-194740-00160

WASHER 10, CONICAL

$

$

Not available

2

Cub Cadet CY-194990-22140

NUT W/WASHER 8

$

$

Not available

3

Cub Cadet CY-1A6260-41250

PLATE, FRICTION

$

$

Not available

4

Cub Cadet CY-1A7880-45000

LEVER CMP, POSITION

$

$

Not available

5

Cub Cadet CY-1A7880-45040

LEVER, POSITION

$

$

Not available

6

Cub Cadet CY-1A7880-45210

STAY CMP, HYD. LINK

$

$

Not available

7

Cub Cadet CY-1A7880-45250

ROD, FEEDBACK

$

$

Not available

8

Cub Cadet CY-1A7880-45330

LEVER ASY, CONTROL

$

$

Not available

9

Cub Cadet CY-24550-010150

BUSH 10X15

$

$

Not available

10

Cub Cadet CY-1A7070-47400

LEVER, SPOOL

$

$

Not available

11

Cub Cadet CY-194208-47530

ADJUSTER

$

$

Not available

12

Cub Cadet CY-1C6281-52320

PIN 8, COME-OFF SNAP

$

$

Not available

13

Cub Cadet CY-194145-61570

WASHER 10

$

$

Not available

14

Cub Cadet CY-22137-080000

WASHER 8, POLISHED

$

$

Not available

15

Cub Cadet CY-22137-080000

WASHER 8, POLISHED

$

$

Not available

16

Cub Cadet CY-22137-080000

WASHER 8, POLISHED

$

$

Not available

17

Cub Cadet CY-22137-120000

WASHER 12, POLISHED

$

$

Not available

18

Cub Cadet CY-22272-000080

CIRCLIP E- 8

$

$

Not available

19

Cub Cadet CY-22351-050018

SPRING PIN 5X18

$

$

Not available

20

Cub Cadet CY-22372-080000

SNAP PIN (JASO 8)

$

$

Not available

21

Cub Cadet CY-22417-200160

COTTER PIN 2.0X16

$

$

Not available

22

Cub Cadet CY-26106-080162

BOLT M 8X 16 PLATED

$

$

Not available

23

Cub Cadet CY-26106-100202

BOLT M10X 20 PLATED

$

$

Not available

24

Cub Cadet CY-26366-080002

NUT M 8

$

$

Not available

25

Cub Cadet CY-26716-100002

NUT 10

$

$

Not available

26

Cub Cadet CY-198200-47810

KNOB, BLACK

$

$

Not available

Note:71-1 Refers to Lift Arm, Ref No. 1

$

$

Not available

Note:72-1 Refers to Control Valve, Ref No. 1

$

$

Not available
