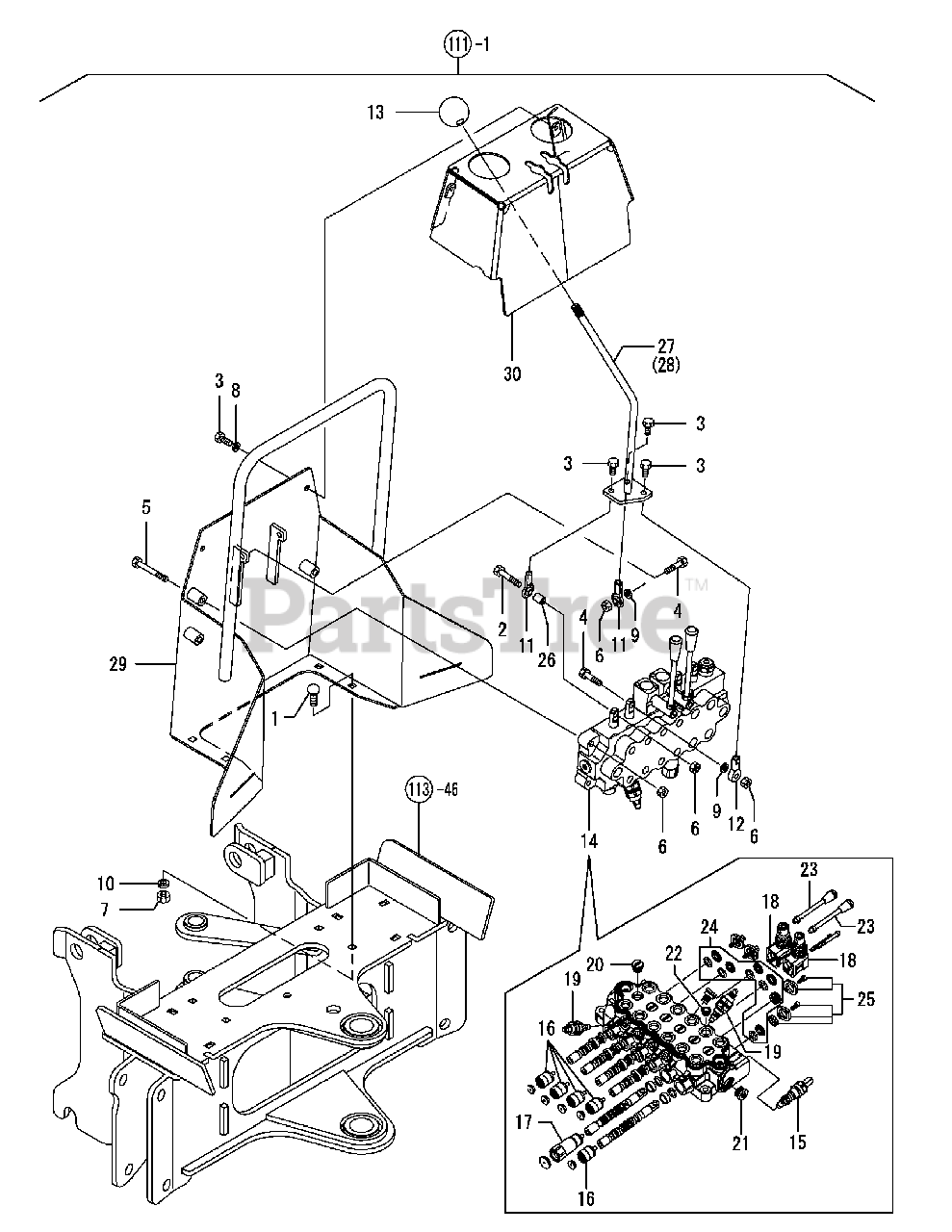

Sc2450 (54B-G4TV727) - Cub Cadet Yanmar Sc Series Compact Tractor Backhoe, Control Parts Diagram

Sc Series Compact Tractor

Backhoe, Control Parts Diagram

  • Title
1

Cub Cadet CY-1A7882-98160

BOLT, CARR 38X100

$

$

Not available

2

Cub Cadet CY-1A7882-98190

BOLT, HEX 31X175

$

$

Not available

3

Cub Cadet CY-1A7882-98220

BOLT, HEX 31X75

$

$

Not available

4

Cub Cadet CY-1A7882-98230

BOLT, HEX 31X125

$

$

Not available

5

Cub Cadet CY-1A7882-98250

BOLT, HEX 31X250

$

$

Not available

6

Cub Cadet CY-1A7882-98310

NUT, LOCK NF 31

$

$

Not available

7

Cub Cadet CY-1A7882-98320

NUT, LOCK NC 38

$

$

Not available

8

Cub Cadet CY-1A7882-98350

WASHER, LOCK 31

$

$

Not available

9

Cub Cadet CY-1A7882-98360

FLAT, LOCK 5/16

$

$

Not available

10

$

$

Not available

$

$

Not available

12

Cub Cadet CY-1A7882-98550

BALL JOINT, FEMALE

$

$

Not available

13

Cub Cadet CY-1A7882-98560

KNOB BALL BLACKK

$

$

Not available

14

Cub Cadet CY-1A7882-98690

VALVE, 6 SPOOL

$

$

Not available

15

Cub Cadet CY-1A7882-97800

MAIN RELIEF CMP

$

$

Not available

$

$

Not available

17

Cub Cadet CY-1A7882-97820

BOOM POSITIONER

$

$

Not available

18

Cub Cadet CY-1A7882-97830

STABILIZER LEVER BOX

$

$

Not available

19

Cub Cadet CY-1A7882-97840

RELIEF VALVE, W/P

$

$

Not available

20

Cub Cadet CY-1A7882-97850

VALVE, LOAD CHECK

$

$

Not available

21

Cub Cadet CY-1A7882-97860

PLUG, 3/4-16UNF

$

$

Not available

22

$

$

Not available

23

Cub Cadet CY-1A7882-97880

STABILIZER HANDLE

$

$

Not available

24

Cub Cadet CY-1A7882-97890

SEAL KIT, C/T VALVE

$

$

Not available

25

Cub Cadet CY-1A7882-97900

WIPER RETAINING KIT

$

$

Not available

26

$

$

Not available

27

Cub Cadet CY-1A7882-98830

RH CONTROL HANDLE

$

$

Not available

28

Cub Cadet CY-1A7882-98840

LH CONTROL HANDLE

$

$

Not available

29

Cub Cadet CY-1A7882-98890

CONTROL TOWER M ASSY

$

$

Not available

30

Cub Cadet CY-1A7882-98900

VALVE COVER M ASSY

$

$

Not available

Note:111-1 Refers to Backhoe Swing Frame, Ref No. 1

$

$

Not available

Note:113-46 Refers to Backhoe Main Frame, Ref No. 46

$

$

Not available
