Sc2450 (54AEG4RV727) - Cub Cadet Yanmar Sc Series Compact Tractor Rear Axle Housing Parts Diagram

Sc Series Compact Tractor

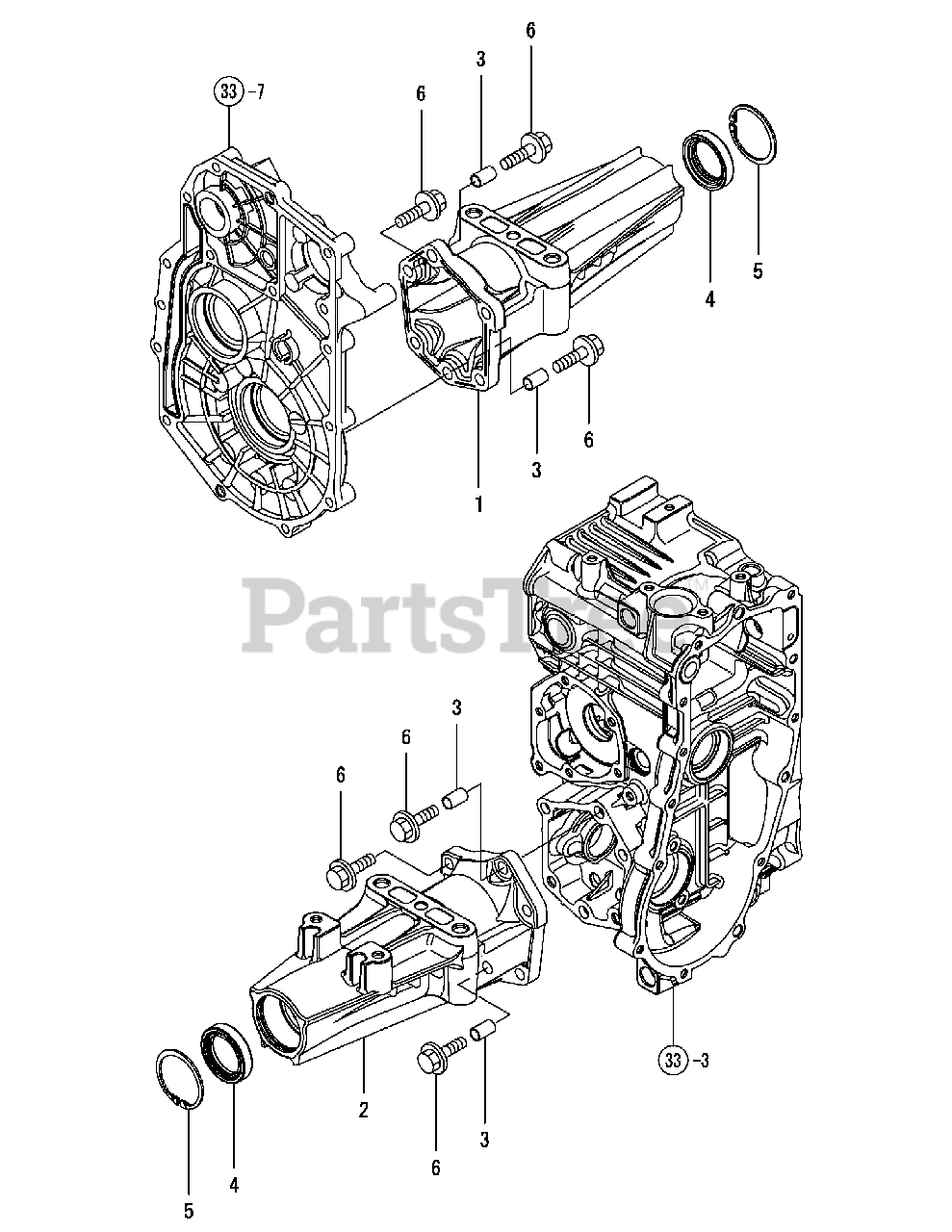

Rear Axle Housing Parts Diagram

  • Title
1

Cub Cadet CY-1A7050-32320

HOUSING, REAR AXLE R

$

$

Not available

2

Cub Cadet CY-1A7051-32320

HOUSING, REAR AXLE

$

$

Not available

3

Cub Cadet CY-192157-32360

COLLAR, 10X12X20

$

$

Not available

4

Cub Cadet CY-192157-32370

SEAL, TC395511

$

$

Not available

$

$

Not available

6

Cub Cadet CY-26106-100352

BOLT M10X 35 PLATED

$

$

Not available

Note:33-3 Refers to Transaxle Case, Ref No. 3

$

$

Not available

Note:33-7 Refers to Transaxle Case, Ref No. 7

$

$

Not available
