Sc2450 (54AEG4RV727) - Cub Cadet Yanmar Sc Series Compact Tractor PTO Brake Parts Diagram

Sc Series Compact Tractor

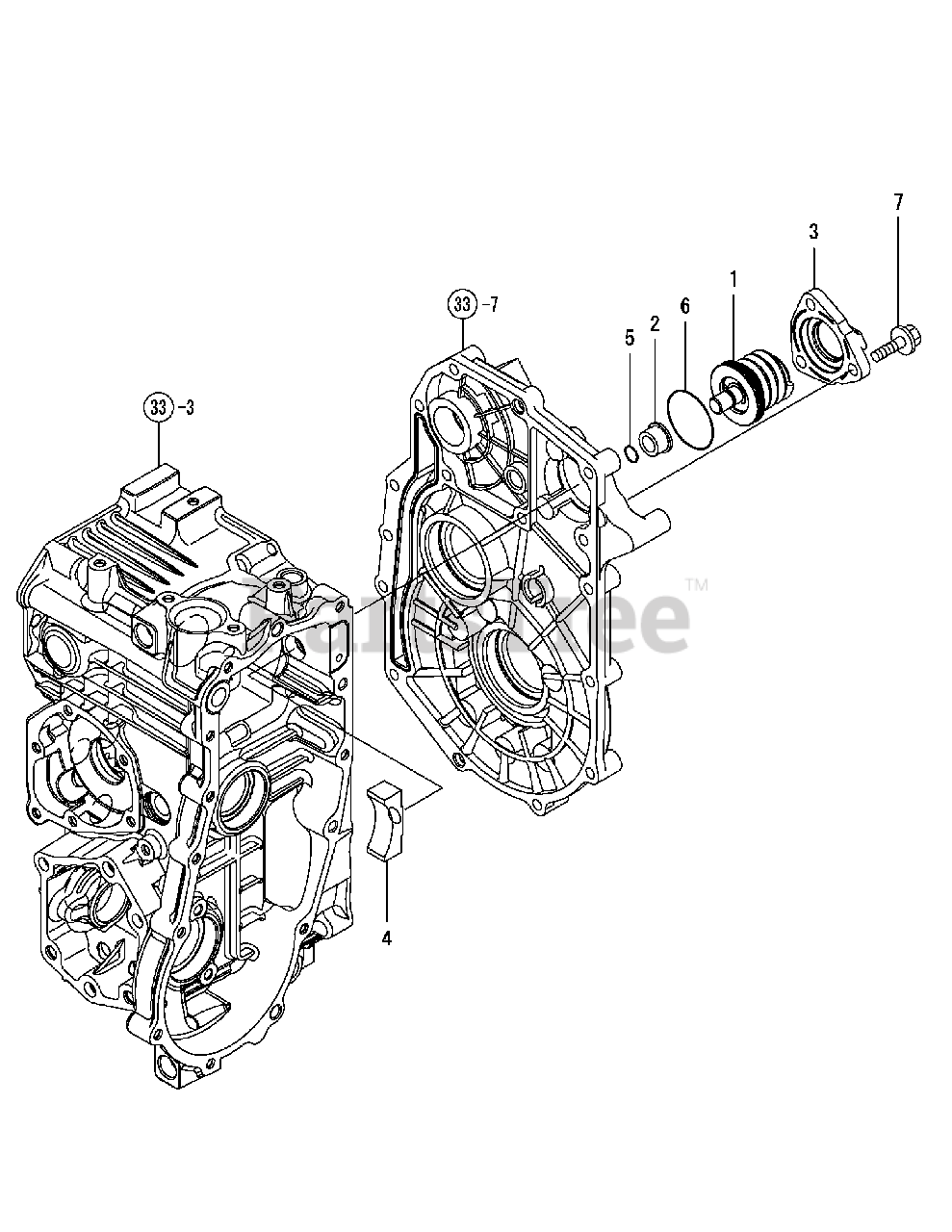

PTO Brake Parts Diagram

  • Title
1

Cub Cadet CY-1A7050-26080

BRAKE KIT, PTO

$

$

Not available

2

Cub Cadet CY-192157-26180

COLLAR, BRAKE PIN

$

$

Not available

3

Cub Cadet CY-1A7050-26210

COVER, PTO BRAKE

$

$

Not available

4

Cub Cadet CY-192157-26220

SHOE, PTO BRAKE

$

$

Not available

5

Cub Cadet CY-24311-000100

O-RING 1A P-10.0

$

$

Not available

6

Cub Cadet CY-24351-240450

PACKING 1A 2045

$

$

Not available

7

Cub Cadet CY-26106-080252

BOLT M 8X 25 PLATED

$

$

Not available

Note:33-3 Refers to Transaxle Case, Ref No. 3

$

$

Not available

Note:33-7 Refers to Transaxle Case, Ref No. 7

$

$

Not available
