Sc2450 (54AEG4RV727) - Cub Cadet Yanmar Sc Series Compact Tractor Differential Lock Parts Diagram

Sc Series Compact Tractor

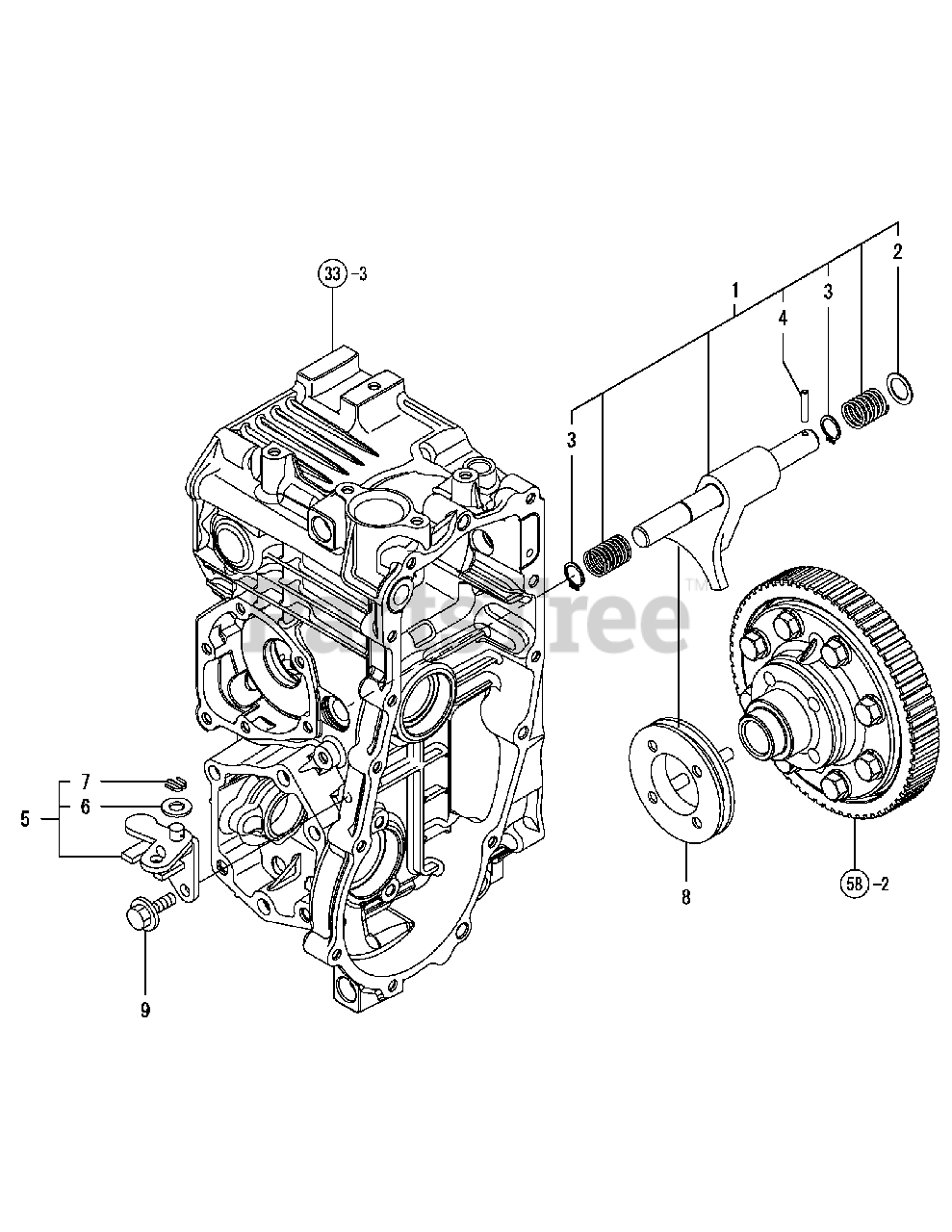

Differential Lock Parts Diagram

  • Title

1

Cub Cadet CY-192157-33101

FORK KIT, DIFF.LOCK

$

$

Not available

2

Cub Cadet CY-1C6320-52210

SPACER 16.5X24X1

$

$

Not available

3

Cub Cadet CY-22242-000160

CIRCLIP 16

$

$

Not available

4

Cub Cadet CY-22351-040025

PIN 4X25, SPRING

$

$

Not available

5

Cub Cadet CY-192157-33110

FULCRUM KIT, DIFF.

$

$

Not available

6

Cub Cadet CY-22137-100000

WASHER 10, POLISHED

$

$

Not available

7

Cub Cadet CY-22417-200200

COTTER PIN 2.0X20

$

$

Not available

8

Cub Cadet CY-194854-33110

SLIDER,DIFF. LOCK

$

$

Not available

9

Cub Cadet CY-26016-080202

BOLT M 8X 20

$

$

Not available

Note:33-3 Refers to Transaxle Case, Ref No. 3

$

$

Not available

Note:58-2 Refers to Differential Gear Rear, Ref No. 2

$

$

Not available
